Confluence CVE-2021-26084 Velocity模板二次注入

Confluence CVE-2021-26084 是前台能够触发的RCE，CVSS9.8，危害不小。漏洞原因是因为Velocity 写得有问题导致可以Ognl注入，这种模板问题导致的漏洞挺少见，但是很适用，值得分析。

0x01 环境搭建

P🐮的Vulhub 有镜像，参考【2】，同样调试接口没有开出来，可以参考之前的《Confluence CVE-2022-26134 OGNL 分析》一文搭建环境。

1. 新建Dockerfile

   FROM vulhub/confluence:7.4.10
   RUN sed "67 iCATALINA_OPTS=\"-agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=*:5005 \$\{CATALINA_OPTS\}\"" -i /opt/atlassian/confluence/bin/setenv.sh

2. 更新docker-compose.yml

   build: .
   ports:
     - "8090:8090"
     - "5005:5005"

0x02 漏洞复现

参考【1】中Lotso师傅给的几个patch

1. confluence/users/user-dark-features.vm

   value='$!action.featureKey' => value=featureKey

   7.12.4版本已经对该文件进行了更改

2. confluence/login.vm

   value='$!action.token' => value=token

   7.12.4版本已经对该文件进行了更改

3. confluence/pages/createpage-entervariables.vm

   value='$!querystring' => value=querystring
   value='$linkCreation' => value=linkCreation

4. confluence/template/custom/content-editor.vm

   对多个input标签进行了value的替换，主要是将value中的$去掉

   "Hidden" "name='linkCreation'" "value='$isLinkCreation'" => "Hidden" "name='linkCreation'" "value=isLinkCreation"

5. JAR文件的中templates/editor-preload-container.vm

   value='$!{action.syncRev}' => value=syncRev

以doenterpagevariables.action 为例

0x03 原理解析

3.1 doenterpagevariables.action 调用链跟踪

顺着执行跟踪

1. doenterpagevariables.action

根据补丁消息，可以定位到createpage-entervariables.vm，对应action为doenterpagevariables

<action name="doenterpagevariables" class="com.atlassian.confluence.pages.actions.PageVariablesAction" method="doEnter">
    <result name="error" type="velocity">/pages/createpage-entervariables.vm</result>
    <result name="input" type="velocity">/pages/createpage-entervariables.vm</result>
    <result name="success" type="velocity">/pages/createpage.vm</result>
</action>

2. PageVariablesAction#doEnter

在PageVariablesAction#doEnter，debug打点发现未进入

此小结与整体跟踪无关，仅探讨为何未进入debug

struts2 执行流程如下，interceptors 一个个执行，如果哪一个返回了有效的result，则不会进入后续的流程了。

执行到ConfluenceXsrfTokenInterceptor，返回了”input” result，直接进行了executeResult，因此避开了doEnter 方法。

3. 返回 input，进行Velocity渲染 createpage-entervariables.vm

<form name="filltemplateform" method="POST" action="doenterpagevariables.action">
    #form_xsrfToken()
    #tag ("Hidden" "name='queryString'" "value='$!queryString'")
    #tag ("Hidden" "name='templateId'" "value='$pageTemplate.id'")

4. AbstractTagDirective tag子语句

渲染Tag #tag (“Hidden” “name=’queryString’” “value=’$!queryString’”)

此刻Tag 有3个子节点

5. 第三个子节点ASTStringLiteral

第三个子节点ASTStringLiteral#value

Velocity 一文中有单独介绍ASTStringLiteral 节点，不过这里稍为复杂点，interpolate为true，需要
this.nodeTree.render(context, writer);
其nodeTree 为ASTReference

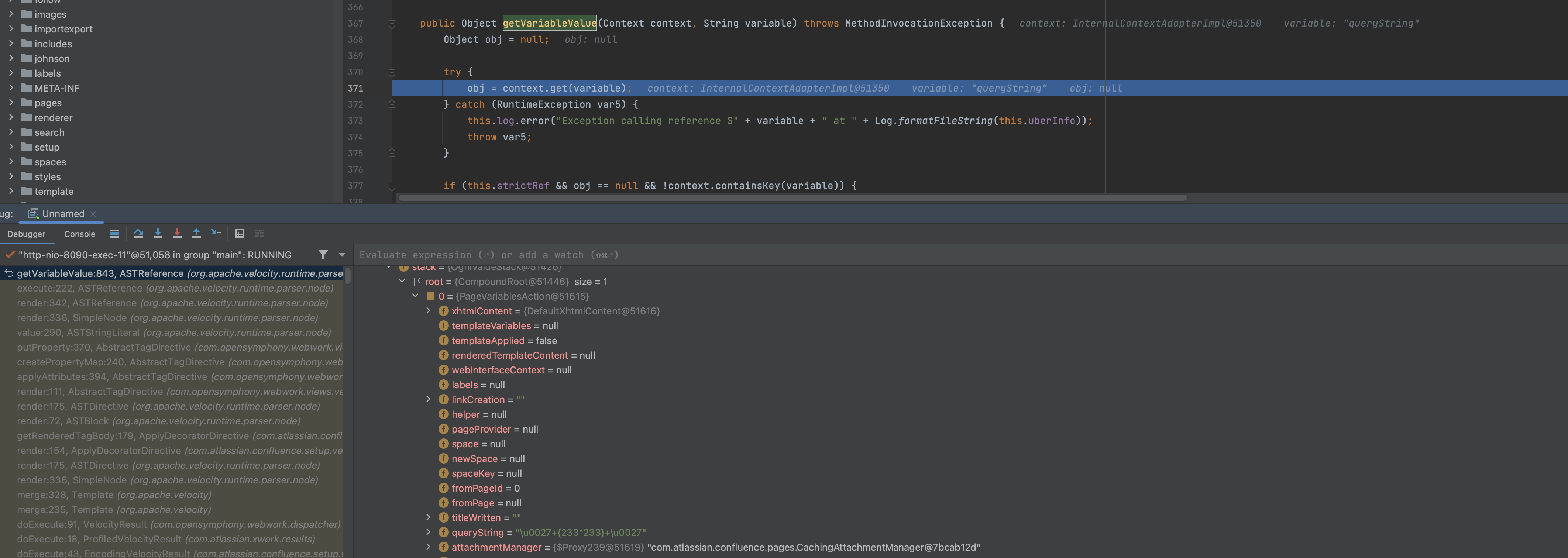

6. 子节点ASTReference#getVariableValue

进过一些列的调用，最终到执行到getVariableValue 方法，功能为从context中获取value值

6.1 InternalContextAdapterImpl & WebWorkVelocityContext

public Object get(String key) {
    return this.context.get(key);
}

this.context 类为OutputAwareWebWorkVelocityContext
OutputAwareWebWorkVelocityContext extends WebWorkVelocityContext

WebWorkVelocityContext 在Velocity那一便文章中有讲到

会尝试从一下context中获取

1. context
2. stack.findValue
3. chainedContexts

public Object internalGet(String key) {
    if (super.internalContainsKey(key)) {
        return super.internalGet(key);
    } else {
        if (this.stack != null) {
            Object object = this.stack.findValue(key);
            if (object != null) {
                return object;
            }
        }

        if (this.chainedContexts != null) {
            for(int index = 0; index < this.chainedContexts.length; ++index) {
                if (this.chainedContexts[index].containsKey(key)) {
                    return this.chainedContexts[index].internalGet(key);
                }
            }
        }

        return null;
    }
}

6.2 queryString 如何赋值的

root 为PageVariablesAction，有个queryString 属性，此刻就是post参数。

那么是如何赋值的呢？

结论是在SafeParametersInterceptor 中赋值的

最终时通过Ognl.setValue 进行赋值的

ASTProperty.setValueBody 经过一些列的调用，最终调用AbstractCreatePageAction.setQueryString 实现赋值，具体调用栈如下

完整的调用栈如下

setQueryString:381, AbstractCreatePageAction (com.atlassian.confluence.pages.actions)
invoke0:-1, NativeMethodAccessorImpl (jdk.internal.reflect)
invoke:62, NativeMethodAccessorImpl (jdk.internal.reflect)
invoke:43, DelegatingMethodAccessorImpl (jdk.internal.reflect)
invoke:566, Method (java.lang.reflect)
invokeMethod:500, OgnlRuntime (ognl)
callAppropriateMethod:794, OgnlRuntime (ognl)
setMethodValue:946, OgnlRuntime (ognl)
setPossibleProperty:76, ObjectPropertyAccessor (ognl)
setProperty:132, ObjectPropertyAccessor (ognl)
setProperty:1613, OgnlRuntime (ognl)
setProperty:45, CompoundRootAccessor (com.opensymphony.xwork.util)
setProperty:1613, OgnlRuntime (ognl)
setValueBody:105, ASTProperty (ognl)
evaluateSetValueBody:180, SimpleNode (ognl)
setValue:230, SimpleNode (ognl)
setValue:476, Ognl (ognl)
setValue:189, OgnlUtil (com.opensymphony.xwork.util)
setValue:113, OgnlValueStack (com.opensymphony.xwork.util)
setValue:97, OgnlValueStack (com.opensymphony.xwork.util)
before:142, SafeParametersInterceptor (com.atlassian.xwork.interceptors)

7. findValue

getVariableValue 会通过OgnlValueStack.findValue 实现从stack root中获取queryString

findValue:137, OgnlValueStack (com.opensymphony.xwork.util)
internalGet:72, WebWorkVelocityContext (com.opensymphony.webwork.views.velocity)
get:193, AbstractContext (org.apache.velocity.context)
get:286, InternalContextAdapterImpl (org.apache.velocity.context)
getVariableValue:843, ASTReference (org.apache.velocity.runtime.parser.node)
execute:222, ASTReference (org.apache.velocity.runtime.parser.node)
render:342, ASTReference (org.apache.velocity.runtime.parser.node)
render:336, SimpleNode (org.apache.velocity.runtime.parser.node)
value:290, ASTStringLiteral (org.apache.velocity.runtime.parser.node)
putProperty:370, AbstractTagDirective (com.opensymphony.webwork.views.velocity)
createPropertyMap:240, AbstractTagDirective (com.opensymphony.webwork.views.velocity)
applyAttributes:394, AbstractTagDirective (com.opensymphony.webwork.views.velocity)
render:111, AbstractTagDirective (com.opensymphony.webwork.views.velocity)
render:175, ASTDirective (org.apache.velocity.runtime.parser.node)
render:72, ASTBlock (org.apache.velocity.runtime.parser.node)
getRenderedTagBody:179, ApplyDecoratorDirective (com.atlassian.confluence.setup.velocity)
render:154, ApplyDecoratorDirective (com.atlassian.confluence.setup.velocity)
render:175, ASTDirective (org.apache.velocity.runtime.parser.node)
render:336, SimpleNode (org.apache.velocity.runtime.parser.node)
merge:328, Template (org.apache.velocity)

8. setValue & setName

AbstractUITag

9. 二次findValue

但是是如何解析的呢？答案在AbstractUITag#evaluateParams

evaluateParams:378, AbstractUITag (com.opensymphony.webwork.views.jsp.ui)
doEndTag:213, AbstractUITag (com.opensymphony.webwork.views.jsp.ui)
processTag:349, AbstractTagDirective (com.opensymphony.webwork.views.velocity)
render:122, AbstractTagDirective (com.opensymphony.webwork.views.velocity)
render:175, ASTDirective (org.apache.velocity.runtime.parser.node)
render:72, ASTBlock (org.apache.velocity.runtime.parser.node)
getRenderedTagBody:179, ApplyDecoratorDirective (com.atlassian.confluence.setup.velocity)
render:154, ApplyDecoratorDirective (com.atlassian.confluence.setup.velocity)
render:175, ASTDirective (org.apache.velocity.runtime.parser.node)
render:336, SimpleNode (org.apache.velocity.runtime.parser.node)

3.2 createpage.action 利用链

createpage 与以上类似，只不过需要登录

1. content-editor.vm

        #tag ("Hidden" "name='queryString'" "value='$!queryString'")
        #tag ("Hidden" "name='fromPageId'" "value='$fromPageId'")
        #tag ("Hidden" "name='spaceKey'" "value=spaceKey")
...
        #tag ("Hidden" "name='linkCreation'" "value='$isLinkCreation'")

7.4.10版本，可以看到有几处可以触发

2. CreatePageAction

createpage.vm – createpage-form.vm – content-editor.vm

<action name="createpage" class="com.atlassian.confluence.pages.actions.CreatePageEntryAction" method="doDefault">
    <interceptor-ref name="defaultStack"/>
    <result name="error" type="velocity">/pages/createpage.vm</result>
    <result name="input" type="velocity">/pages/createpage.vm</result>
    ...
</action>

其他与以上都类似，poc如下

0x04 扩展思考

4.1 Confluence 的账号权限逻辑

4.1.1 登录

上文中的doenterpagevariables.action 无需登录，createpage.action需要。Confluence 是如何实现的呢？

这些其实是struts2 的基础架构知识，之前没理过，现在理一遍。

以createpage.action为例

1. defaultStack

   在xwork.xml struts2配置文件中，可以找到createpage action 对应的interceptors 为defaultStack

<action name="createpage" class="com.atlassian.confluence.pages.actions.CreatePageEntryAction" method="doDefault">
    <interceptor-ref name="defaultStack"/>

2. interceptors

   defaultStack 具体包含一下interceptors

0 = {XWorkProfilingInterceptor@44739}
1 = {SecurityHeadersInterceptor@44747}
2 = {SetupIncompleteInterceptor@44748}
3 = {ConfluenceXWorkTransactionInterceptor@44724}
4 = {SafeParametersInterceptor@44714}
5 = {ConfluenceAutowireInterceptor@44749}
6 = {LastModifiedInterceptor@44750}
7 = {ServletConfigInterceptor@44751}
8 = {FlashScopeInterceptor@44752}
9 = {ConfluenceAccessInterceptor@44753}
10 = {SpaceAwareInterceptor@44754}
11 = {PageAwareInterceptor@44755}
12 = {CommentAwareInterceptor@44756}
13 = {UserAwareInterceptor@44757}
14 = {PrepareInterceptor@44758}
15 = {BootstrapAwareInterceptor@44759}
16 = {PermissionCheckInterceptor@44760}
17 = {ThemeContextInterceptor@44761}
18 = {WebSudoInterceptor@44762}
19 = {HttpMethodValidationInterceptor@44763}
20 = {CancellingInterceptor@44764}
21 = {LoggingContextInterceptor@44765}
22 = {EventPublisherInterceptor@44766}
23 = {MessageHolderInterceptor@44767}
24 = {HttpRequestStatsInterceptor@44768}
25 = {ConfluenceLicenseInterceptor@44769}
26 = {ConfluenceXsrfTokenInterceptor@44770}
27 = {XWorkProfilingInterceptor@44771}

3. DefaultActionInvocation#invoke

DefaultActionInvocation#invoke 会按顺序调用以上interceptor#invoke，直至有有效的result

4. PageAwareInterceptor

当执行至PageAwareInterceptor，会判断是否登录、检验权限

public String intercept(ActionInvocation actionInvocation) throws Exception {
    Ticker ignored = Timers.start("PageAwareInterceptor.intercept()");
    Throwable var3 = null;

    try {
        Action action = actionInvocation.getAction();
        if (!(action instanceof PageAware)) {
            String var23 = actionInvocation.invoke();
            return var23;
        } else {
            PageAware pageAware = (PageAware)action;
            Result result = ((PageAwareHelper)this.helperRef.get()).configure(pageAware, ServletActionContext.getRequest(), this::getParameter);
            String var7;
            switch(result) {
            case NOT_PERMITTED:
                var7 = "notpermitted";
                return var7;
            case PAGE_NOT_PERMITTED:
                var7 = "pagenotpermitted";
                return var7;
            case PAGE_NOT_FOUND:
                var7 = "pagenotfound";
                return var7;
            case READ_ONLY:
                var7 = "readonly";
                return var7;

5. pagenotpermitted result

pagenotpermitted result 对应ActionChainResult

<result name="pagenotpermitted" type="chain">
    <param name="actionName">pagenotpermitted</param>
</result>

6. PageNotPermittedAction

ActionChainResult 会执行 pagenotpermitted的action，也即PageNotPermittedAction

<action name="pagenotpermitted" class="com.atlassian.confluence.pages.actions.PageNotPermittedAction">
    <result name="success" type="velocity">/pages/pagenotpermitted.vm</result>
    <result name="login" type="redirect">${loginUrl}</result>
    <result name="noEditPermission" type="redirect">${noPageEditPermissionRedirectUrl}</result>
    <result name="noSpaceEditPermission" type="redirect">${noSpaceEditPermissionRedirectUrl}</result>
    <result name="cancel" type="redirect">${targetUrlPath}</result>
</action>

之后就进入了pagenotpermitted action 的流程

7. validatingStack

<package name="pages" extends="default" namespace="/pages">
    <default-interceptor-ref name="validatingStack"/>
    ...
    <action name="pagenotpermitted" class="com.atlassian.confluence.pages.actions.PageNotPermittedAction">

此时对应的interceptors 为validatingStack

之后的流程与之前类似，这里不赘述了

8. PageNotPermittedAction

执行完interceptors，返回result login

@PermittedMethods({HttpMethod.ANY_METHOD})
@XsrfProtectionExcluded
public String execute() {
    boolean targetObjectIsDraft = (Boolean)this.getTargetObject().map(ContentEntityObject::isDraft).orElse(false);
    if (this.getAuthenticatedUser() == null) {
        return "login";
    } else {

进行redirect

9. RedirectResult

RedirectResult 进行跳转响应

4.1.2 权限验证

与登录相似，同样是在PageAwareInterceptor 中进行权限验证。

isPermitted:17, CreatePageEntryAction (com.atlassian.confluence.pages.actions)
configure:141, PageAwareHelper (com.atlassian.confluence.impl.pages.actions)
intercept:29, PageAwareInterceptor (com.atlassian.confluence.pages.actions)

调用CreatePageEntryAction#isPermitted 进行权限验证

后续还涉及到

• DefaultPermissionManager
• DefaultSpacePermissionManager

不做过多赘述

4.2 如何写出有问题的Velocity

其实归根结底，是Struct2 velocity模板二次注入的问题，在Struct2 的历史漏洞中也有出现过，留待以后Struct2 系列再总结吧。

0x05 小结

本文跟踪复现了Confluence CVE-2021-26084 这个Velocity模板二次注入漏洞，发现这是Struct2 的通用问题。包括之前分析过的Confluence CVE-2022-26134 OGNL 这一漏洞，其实也是和Struct2 特性有关。

Struct2 框架虽然不再流行，但其一系列的漏洞及修复、绕过还是很经典，一些历史的产品也可能还存在类似的问题，虽然是个难啃的知识点，但是借Confluence 这两个漏洞的契机，也准备复现分析Struct2 的历史漏洞一番。

其他的思考点

1. Confluence的登录/角色 鉴权怎么做的，这块还没分析，有没有可操作空间
2. poc有unicode编码，原因在ognl一节已经提到过

0x06 参考

• [1] CVE-2021-26084：Confluence Webwork Ognl表达式注入漏洞分析 (by:Lotso)
• [2] Confluence Server Webwork Pre-Auth OGNL Injection (CVE-2021-26084) (by:Vulhub)
• [3] Confluence Server Webwork OGNL injection - CVE-2021-26084
• [4] https://github.com/h3v0x/CVE-2021-26084_Confluence
