《Apache Dubbo: All roads lead to RCE》CodeQL 笔记

《Apache Dubbo: All roads lead to RCE》算是最早公开利用CodeQL 挖掘漏洞的文章，能够半自动化漏洞挖掘，难怪pwntester 祖师爷的产出能够如此高效。

0x01 Dubbo背景

Dubbo 的漏洞原理可以参考上一篇文章。

环境：

  • Dubbo 2.7.8
  • Codeql 2.13.1

Codeql 一直在增加框架的支持，pwntester的这篇文章发布在2021年9月，在2023年5月2.13.1版本中，已经增加了对于Netty的Source支持。

0x02 原文复现

参考[1]

2.1 Netty Source

by pwntester
upload successful

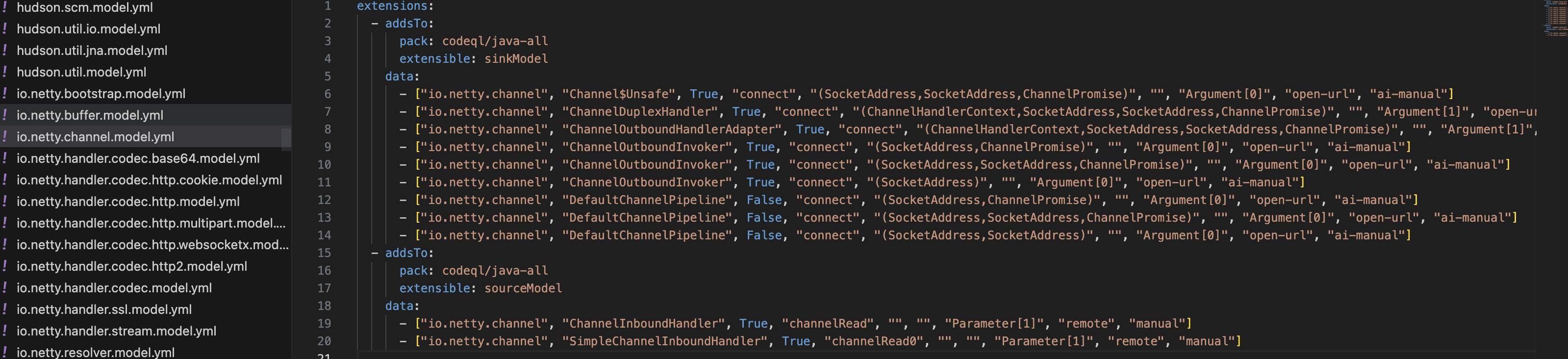

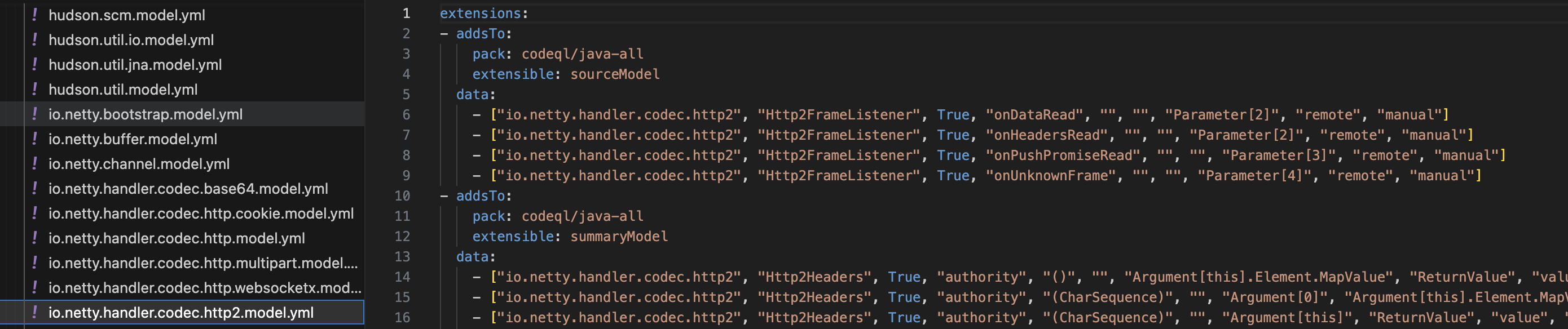

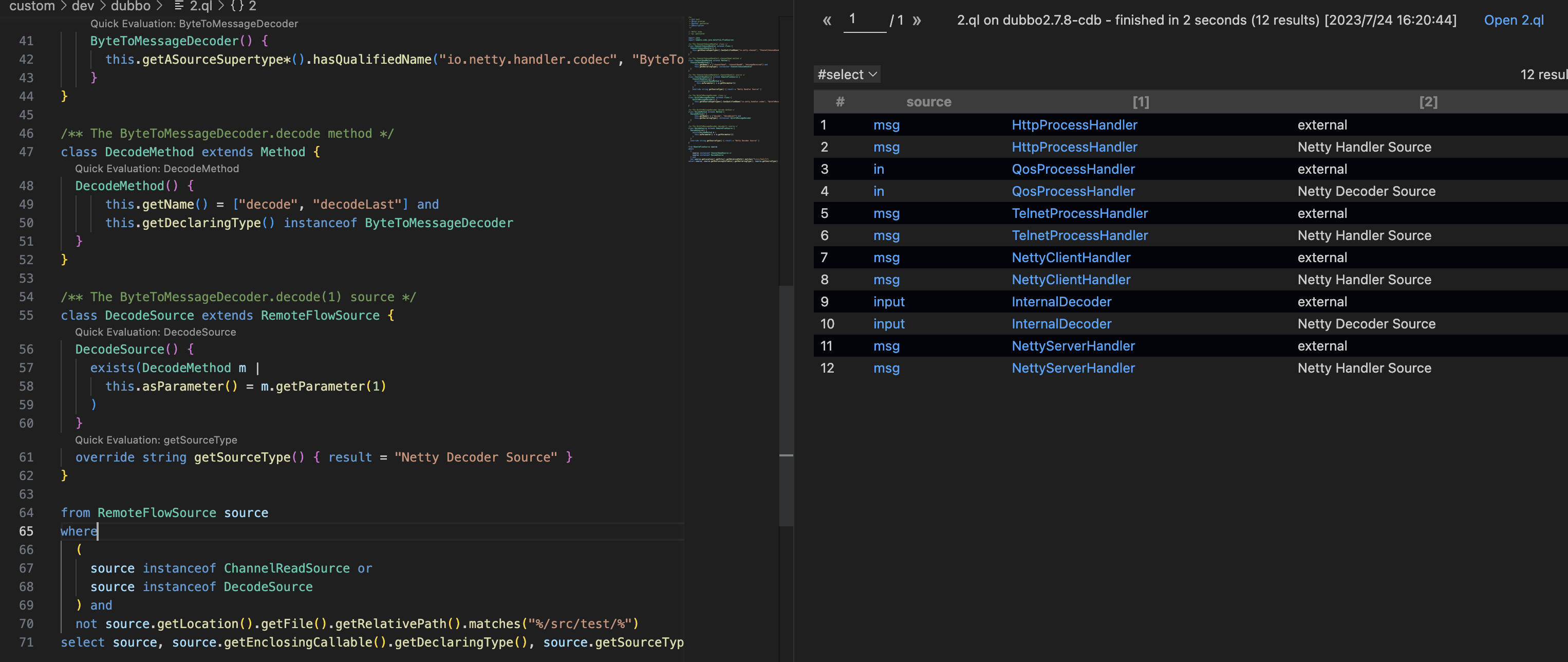

CodeQL v2.13.1 default
upload successful

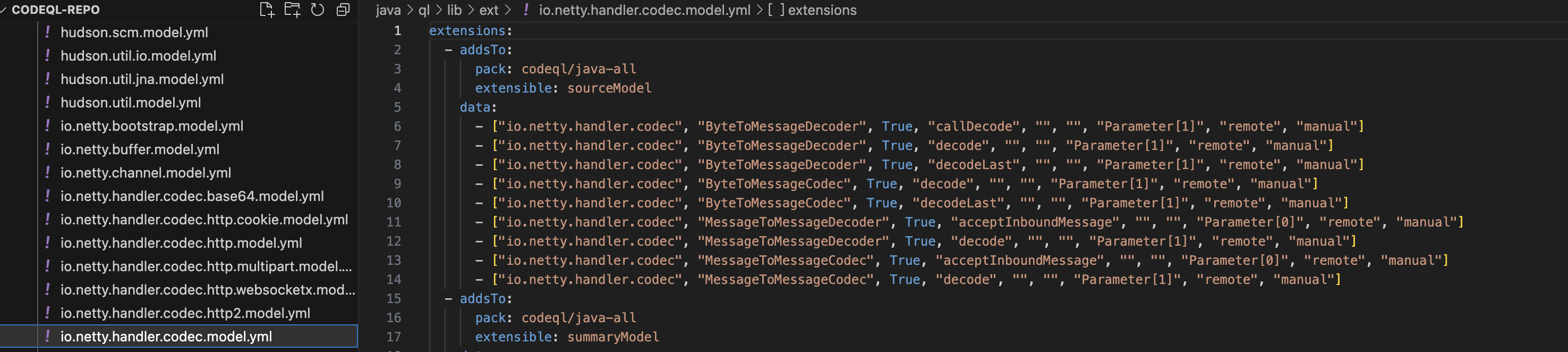

内置的Netty Source已经更全面了。

upload successful

upload successful

upload successful

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
/**
 * @kind path-problem
 */

import java
import semmle.code.java.dataflow.TaintTracking
import DataFlow::PathGraph

class InsecureConfig extends TaintTracking::Configuration {
  InsecureConfig() { this = "InsecureConfig" }

  override predicate isSource(DataFlow::Node source) {
    exists(Method m |
      m.getName() = "decodeBody" and
      m.getDeclaringType().hasQualifiedName("org.apache.dubbo.rpc.protocol.dubbo", "DubboCodec") and
      m.getParameter(1) = source.asParameter()
    )
  }

  override predicate isSink(DataFlow::Node sink) {
    exists(Call call |
      call.getCallee().getName().matches("read%") and
      call.getCallee()
        .getDeclaringType()
        .getASourceSupertype*()
        .hasQualifiedName("org.apache.dubbo.common.serialize", "ObjectInput") and
      call.getQualifier() = sink.asExpr()
      and sink.getLocation().getFile().getRelativePath().matches("%DecodeableRpcInvocation%")
    )
  }

  override predicate isAdditionalTaintStep(DataFlow::Node n1, DataFlow::Node n2) {
    exists(MethodAccess ma |
      ma.getMethod().getName() = "deserialize" and
      ma.getMethod().getDeclaringType().hasQualifiedName("org.apache.dubbo.common.serialize", "Serialization") and
      ma.getArgument(1) = n1.asExpr() and
      ma = n2.asExpr()
    )
  }
}

from InsecureConfig conf, DataFlow::PathNode source, DataFlow::PathNode sink
where conf.hasFlowPath(source, sink)
select sink, source, sink, "unsafe deserialization"

upload successful

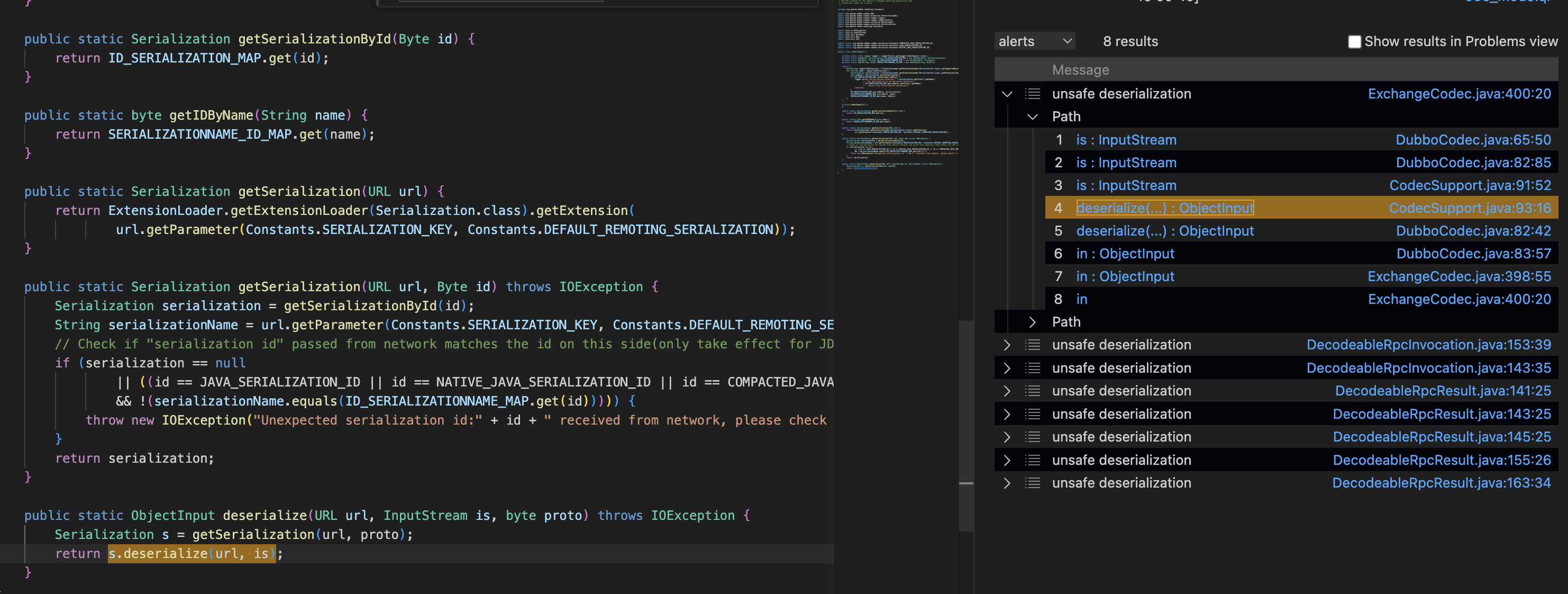

  • 注意这里的s.deserialize(url, is) 是由isAdditionalTaintStep手动串起来的

后续的不赘述了，参考pwntester的文章。

但是，如上面的例子，pwntester给的Additional很突兀，后续的例子也需要对Dubbo漏洞有很深的了解，才能写出对应的QL。

如何在不需要这么多背景知识情况下，用更通用的QL发现Dubbo的这些漏洞呢？

0x03 GHSL-2021-036

GHSL-2021-036
GHSL-2021-036 Dubbo中数据流有很多途径到达hessian#readObject，pwntester首次在这里提出这条链readUTF->readString->expect->readObject，这个和后续的CVE-2021-43297异曲同工，而且更短

3.1 Sink

sink 点初步感觉应该是Hessian2Input#readObject

1
2
3
4
5
6
7
 override predicate isSink(DataFlow::Node sink) {
exists( MethodAccess ma|
     ma.getMethod().hasName("readObject")
     and ma.getQualifier() = sink.asExpr()
     and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("com.caucho.hessian.io", "Hessian2Input")
   )
 }

实际不止如此，引用上一篇文章原理一节

核心的逻辑在于Hessian2#readString，如果发现tag字段类型非String，会调用expect进行Exception告警，其中

  1. 尝试readObject
  2. 将obj 进行“+” 拼接
    从而触发obj.toString，造成反序列化问题

此处的sink点已经不是readObject了，鉴于CodeQL不能跟进hessian 内部，所以这里只能将readString也作为sink点。

所以最终的sink逻辑如下：

1
2
3
4
5
6
7
 override predicate isSink(DataFlow::Node sink) {
exists( MethodAccess ma|
     ma.getMethod().getName() in ["readObject", "readString"]
     and ma.getQualifier() = sink.asExpr()
     and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("com.caucho.hessian.io", "Hessian2Input")
   )
 }
  • 这里pwntester能够发现Hessian的readUTF这个链，说明不单单是分析Dubbo了，至少还有去单独分析Hessain

3.2 Additional

java/ql/lib/ext/com.caucho.hessian.model.yml

1
2
3
4
5
6
7
extensions:
  - addsTo:
      pack: codeql/java-all
      extensible: summaryModel
    data:
      - ["com.caucho.hessian.io", "Hessian2Input", True, "Hessian2Input", "(InputStream)", "", "Argument[0]", "Argument[this]", "taint", "manual"]
      - ["com.caucho.hessian.io", "Hessian2Input", True, "init", "(InputStream)", "", "Argument[0]", "Argument[this]", "taint", "manual"]

3.3 QL Result

pwntester 发现的链有这么多

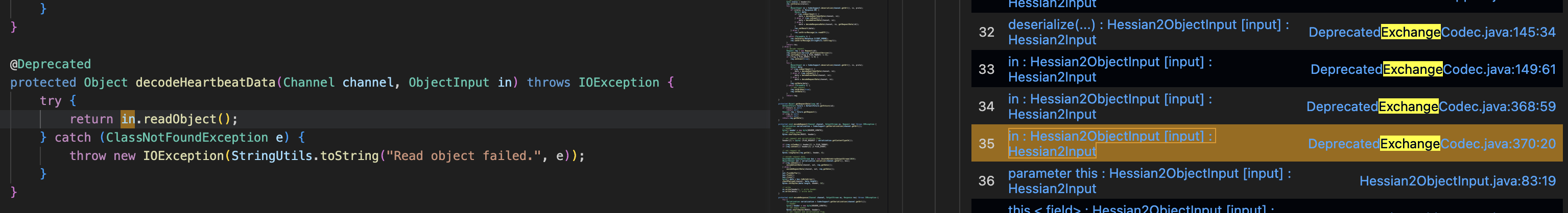

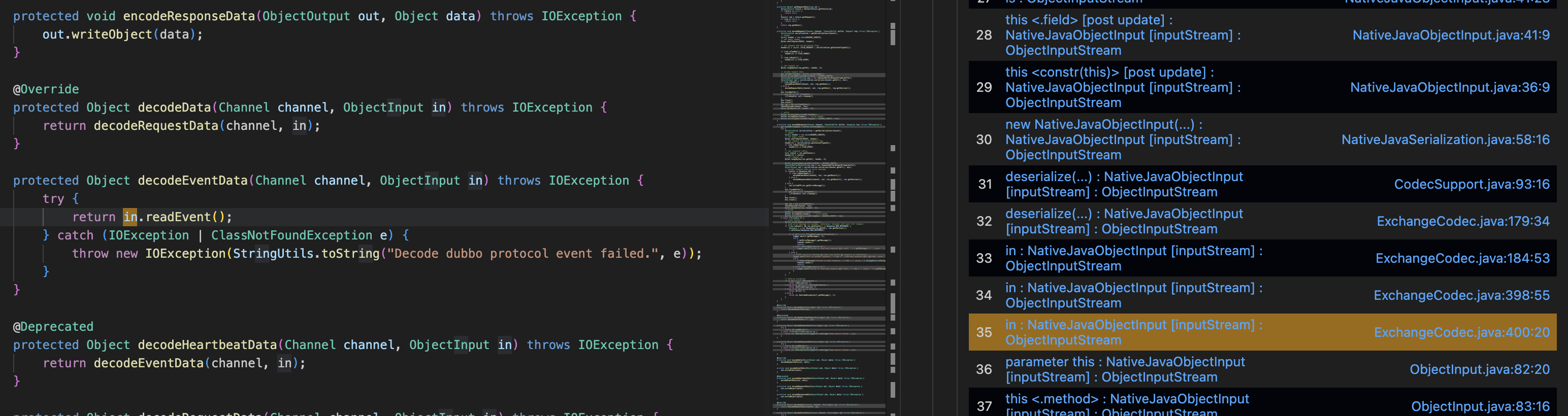

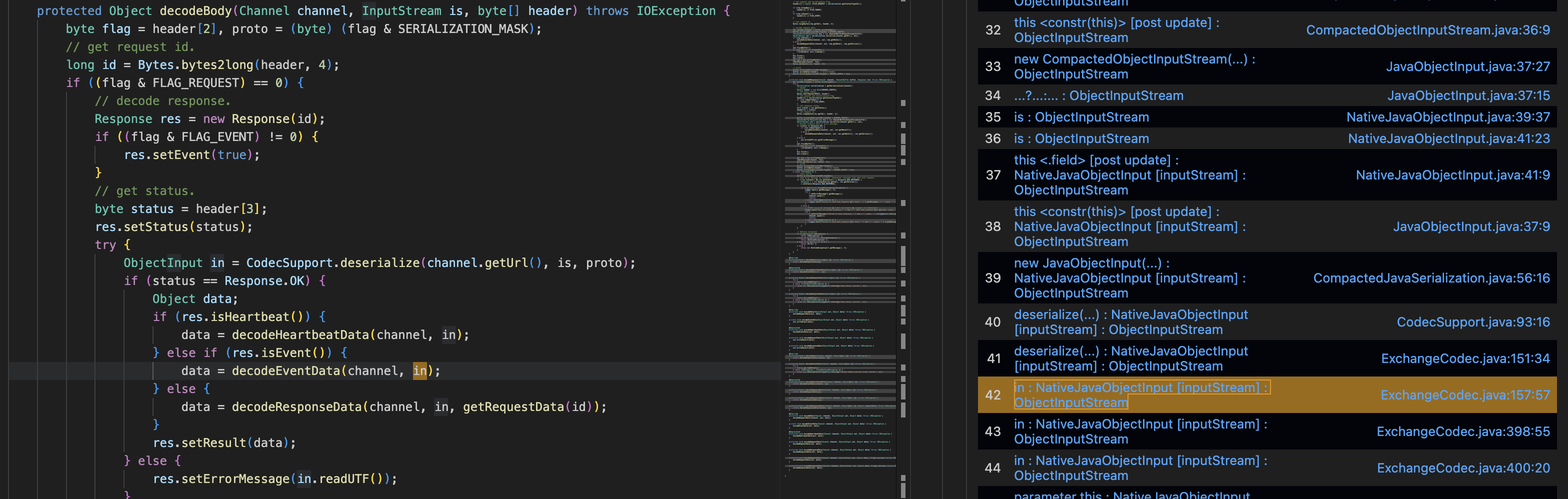

  1. HeartBeat Request-> decodeHeartbeatData -> decodeEventData -> in.readEvent -> in.readObject
    upload successful
  2. Event Request-> decodeEventData -> in.readEvent -> in.readObject
  3. OK Response-> DecodeableRpcResult.decode() -> handleValue -> readObject
    upload successful

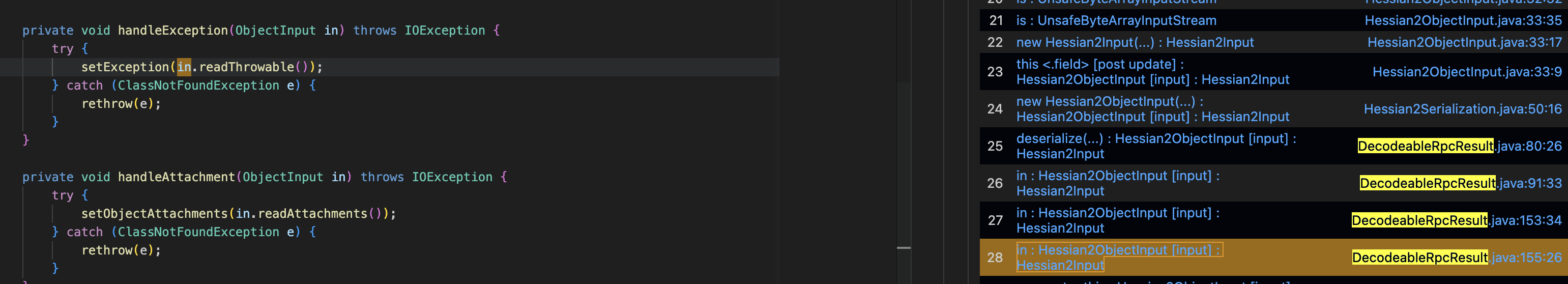

  4. OK Response-> DecodeableRpcResult.decode() -> handleException leads tBo readThrowable which leads to readObject
    upload successful
  5. OK Response-> DecodeableRpcResult.decode() -> handleAttachment leads to readAttachments which leads to readObject
  6. OK HeartBeat Response-> decodeHeartbeatData -> decodeEventData -> in.readEvent -> in.readObject
    upload successful
  7. OK Event Response-> decodeEventData -> in.readEvent -> in.readObject
  8. NOK Response-> in.readUTF (in Hessian, readUTF can lead to readObject)
    upload successful

3.3.1 遗漏

3.3.1.1 ecodeableRpcResult#readAttachments

DecodeableRpcResult.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class DecodeableRpcResult extends AppResponse implements Codec, Decodeable {

    public Object decode(Channel channel, InputStream input) throws IOException {
    	...
            case DubboCodec.RESPONSE_VALUE_WITH_ATTACHMENTS:
                handleValue(in);
                handleAttachment(in);
        ...
	private void handleAttachment(ObjectInput in) throws IOException {
        try {
            setObjectAttachments(in.readAttachments());
        } catch (ClassNotFoundException e) {
            rethrow(e);
        }
    }
1
2
3
4
5
package org.apache.dubbo.common.serialize;
public interface ObjectInput extends DataInput {
    default Map<String, Object> readAttachments() throws IOException, ClassNotFoundException {
        return readObject(Map.class);
    }

看起来DecodeableRpcResult实际上是有readAttachments 到Sink的路径的，但是实际ql结果中没有，只有handleValue/handleException

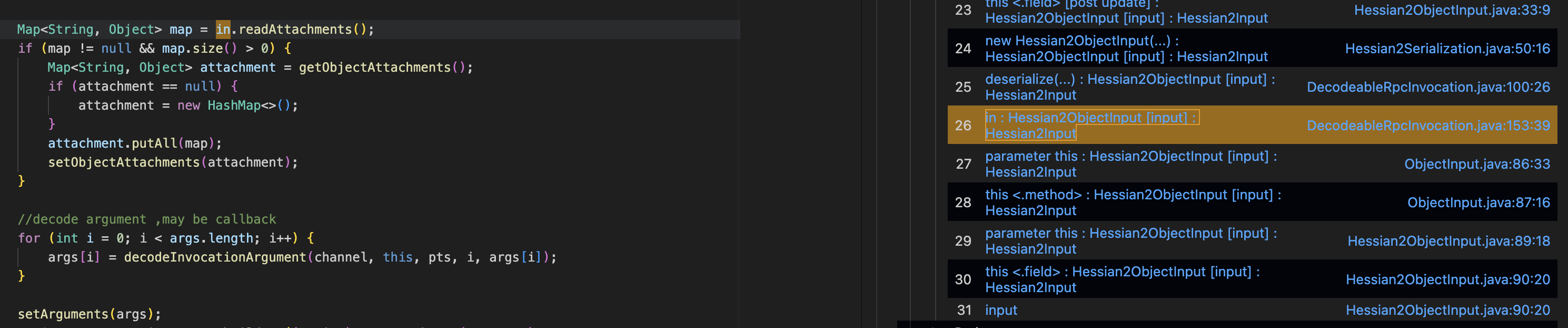

而且有DecodeableRpcInvocation->readAttachments 的路径，但是却没有DecodeableRpcResult->readAttachments 的，神奇
upload successful

猜测：CodeQL具有相似路径，或者更短路径，就不再重复计算？

加个黑名单过滤看看

1
2
3
4
5
6
override predicate isSanitizer(DataFlow::Node node) {
  exists( Method m| m.getAParameter() = node.asParameter() |
    m.getName() in ["handleValue", "handleException"]
    and m.getDeclaringType().hasQualifiedName("org.apache.dubbo.rpc.protocol.dubbo", "DecodeableRpcResult")
  )
}
  1. OK Response-> DecodeableRpcResult.decode() -> handleAttachment leads to readAttachments which leads to readObject
    upload successful

结论：CodeQL 污点分析并不会遍历所有的路径，可能更偏向于更短/更优的路径。

3.3.1.2 Codec2
1
2
3
4
5
6
7
8
9
10
final public class NettyCodecAdapter {
    private final Codec2 codec;
    private class InternalDecoder extends ByteToMessageDecoder {
        @Override
        protected void decode(ChannelHandlerContext ctx, ByteBuf input, List<Object> out) throws Exception {

            ChannelBuffer message = new NettyBackedChannelBuffer(input);
			...
                int saveReaderIndex = message.readerIndex();
                Object msg = codec.decode(channel, message);

大致逻辑

1
2
3
NettyCodecAdapter
	Codec2#decode
    	Codec#decode

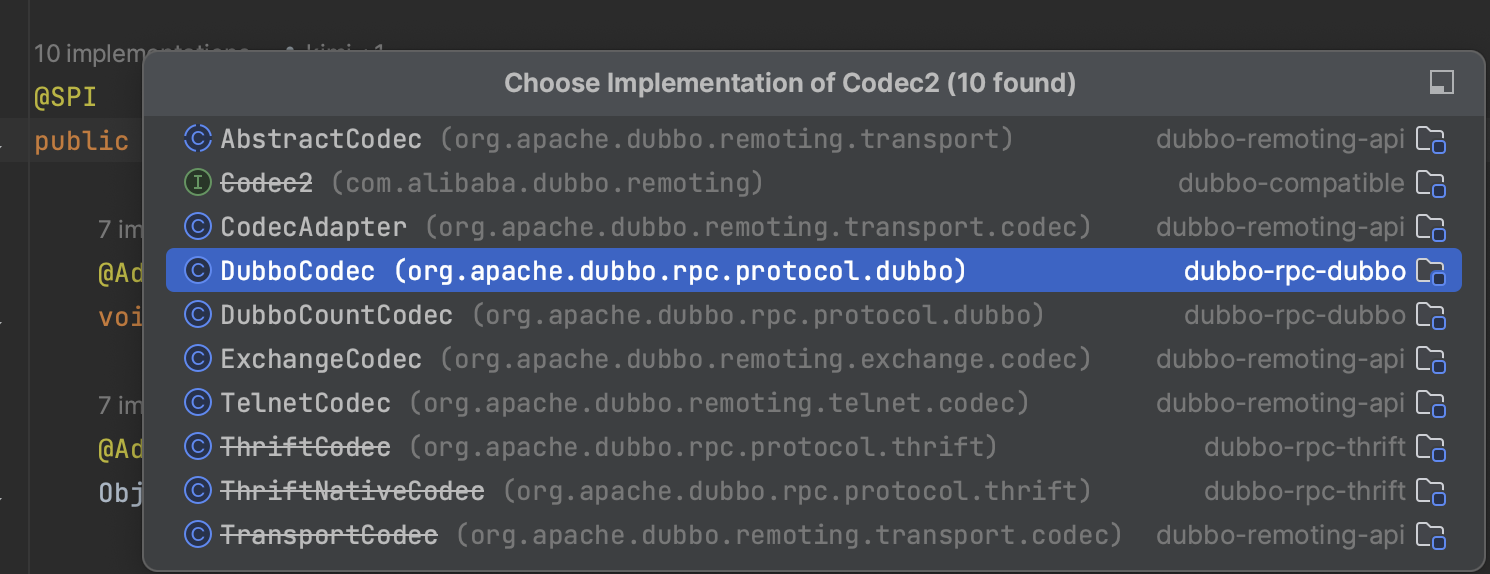

此处的Codec2，在最终路径中只有CodecAdapter，没有其他的

  • ExchangeCodec
  • TelnetCodec

upload successful

Try Sanitizer

是否和以上问题类似？

注释掉CodecAdapter，让污点流量不经过CodecAdapter试试

1
2
3
override predicate isSanitizer(DataFlow::Node node) {
  node.asExpr().getFile().getRelativePath().matches("%CodecAdapter.java")
}

再次运行发现并无结果，看来并不是3.3.1.1的类似原因

结论

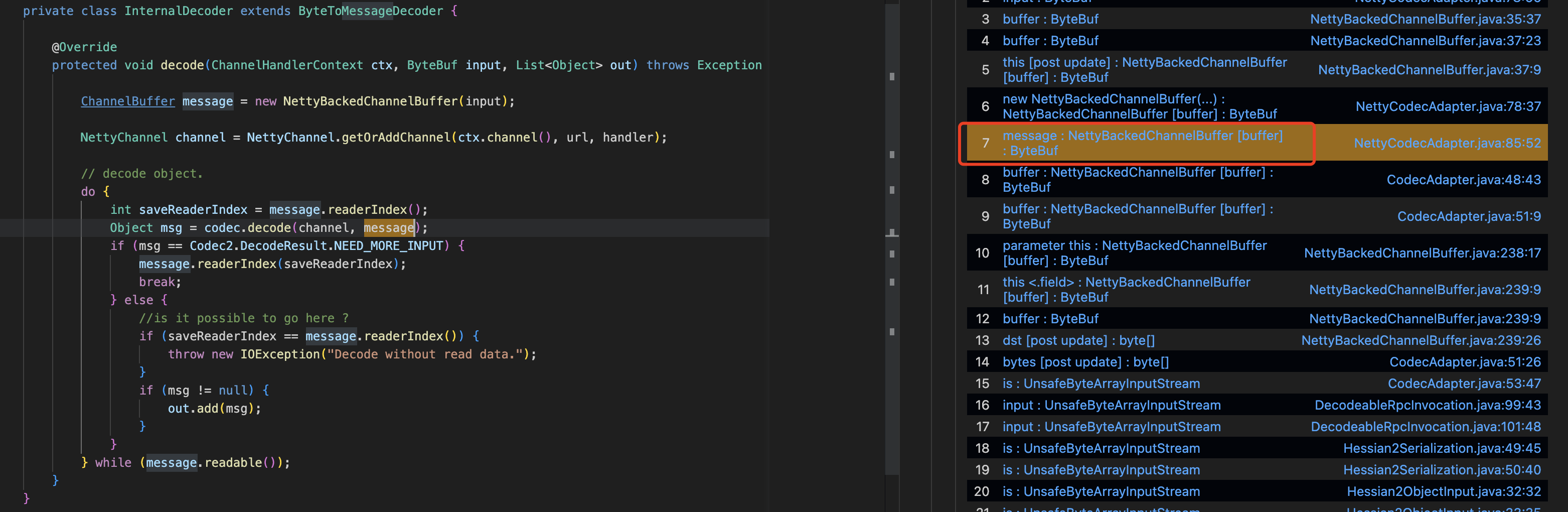

实际并不是的，注意此刻message 的类型，是一个NettyBackedChannelBuffer，ExchangeCodec 并不接受此类型的InputStream，Exchange对应的是NativeJavaSerialization反序列化

upload successful

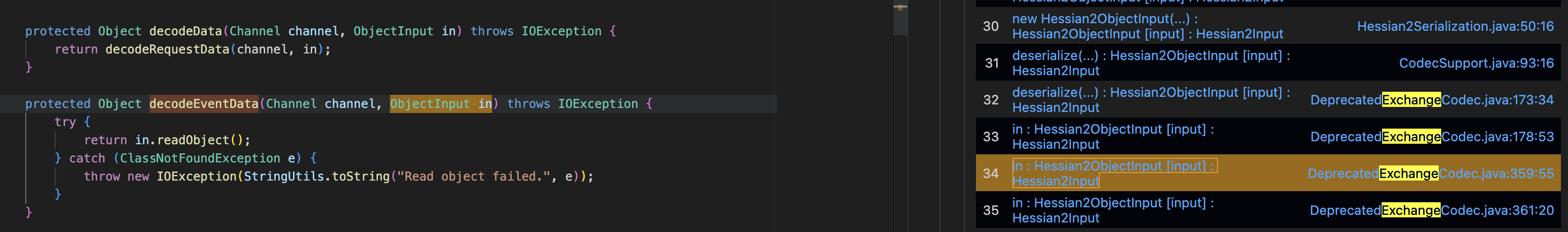

  1. Event Request-> decodeEventData -> in.readEvent -> in.readObject
    upload successful
  2. OK Event Response-> decodeEventData -> in.readEvent -> in.readObject
    upload successful
Final Sink
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

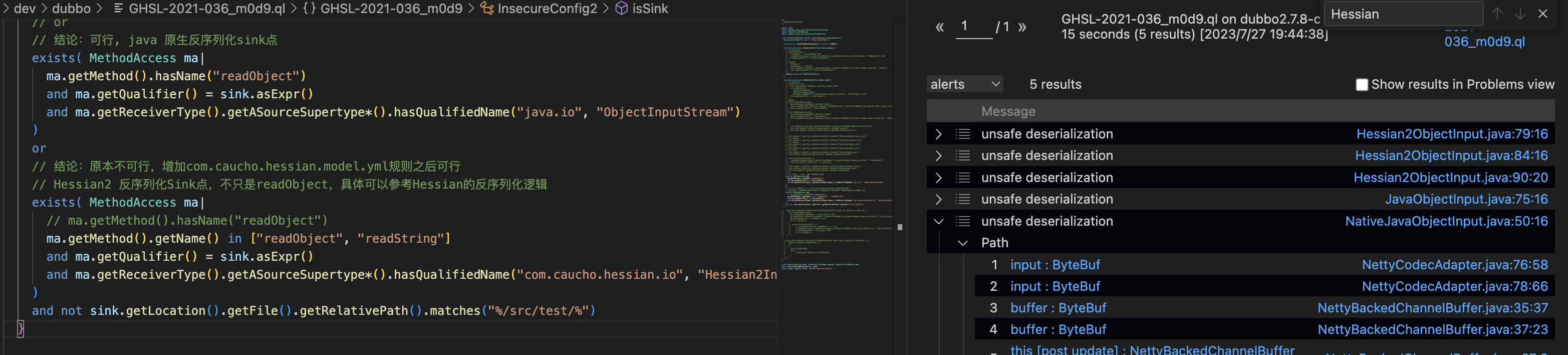

override predicate isSink(DataFlow::Node sink) {
  // 结论：可行, java 原生反序列化sink点
  exists( MethodAccess ma|
    ma.getMethod().hasName("readObject")
    and ma.getQualifier() = sink.asExpr()
    and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("java.io", "ObjectInputStream")
  )
  or
  // 结论：原本不可行，增加com.caucho.hessian.model.yml规则之后可行
  // Hessian2 反序列化Sink点，不只是readObject，具体可以参考Hessian的反序列化逻辑
  exists( MethodAccess ma|
    ma.getMethod().getName() in ["readObject", "readString"]
    and ma.getQualifier() = sink.asExpr()
    and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("com.caucho.hessian.io", "Hessian2Input")
  )
}

upload successful

3.3.2 补充

0x04 GHSL-2021-035

CVE-2021-25641
GHSL-2021-035 Dubbo除了支持hessian协议，还支持其他总共14协议，这些协议里面也有反序列化问题。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
2 -> "hessian2"
3 -> "java"
4 -> "compactedjava"
6 -> "fastjson"
7 -> "nativejava"
8 -> "kryo"
9 -> "fst"
10 -> "native-hessian"
11 -> "avro"
12 -> "protostuff"
16 -> "gson"
21 -> "protobuf-json"
22 -> "protobuf"
25 -> "kryo2"

这些里面，部分是存在反序列化漏洞

4.1 Sink

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
override predicate isSink(DataFlow::Node sink) {
  // Fst
  exists( MethodAccess ma|
    ma.getMethod().hasName("readObject")
    and ma.getQualifier() = sink.asExpr()
    and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("org.nustaq.serialization", "FSTObjectInput")
  )
  // Kryo
  or
  exists( MethodAccess ma|
    ma.getMethod().getName() in ["readClassAndObject", "readObject", "readObjectOrNull"]
    and ma.getArgument(0) = sink.asExpr()
    and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("com.esotericsoftware.kryo", "Kryo")
  )
}

4.2 Additional

1
2
3
4
5
6
7
- addsTo:
    pack: codeql/java-all
    extensible: summaryModel
  data:
    - ["org.nustaq.serialization", "FSTObjectInput", True, "FSTObjectInput", "(InputStream)", "", "Argument[0]", "Argument[this]", "taint", "manual"]
    - ["org.nustaq.serialization", "FSTObjectInput", True, "FSTObjectInput", "(InputStream,FSTConfiguration)", "", "Argument[0]", "Argument[this]", "taint", "manual"]
    - ["org.nustaq.serialization", "FSTConfiguration", True, "getObjectInput", "(InputStream)", "", "Argument[0]", "ReturnValue", "taint", "manual"]
1
2
3
4
5
6
7
extensions:
  - addsTo:
      pack: codeql/java-all
      extensible: summaryModel
    data:
      - ["com.esotericsoftware.kryo.io", "Input", False, "Input", "", "", "Argument[0]", "Argument[this]", "taint", "manual"]

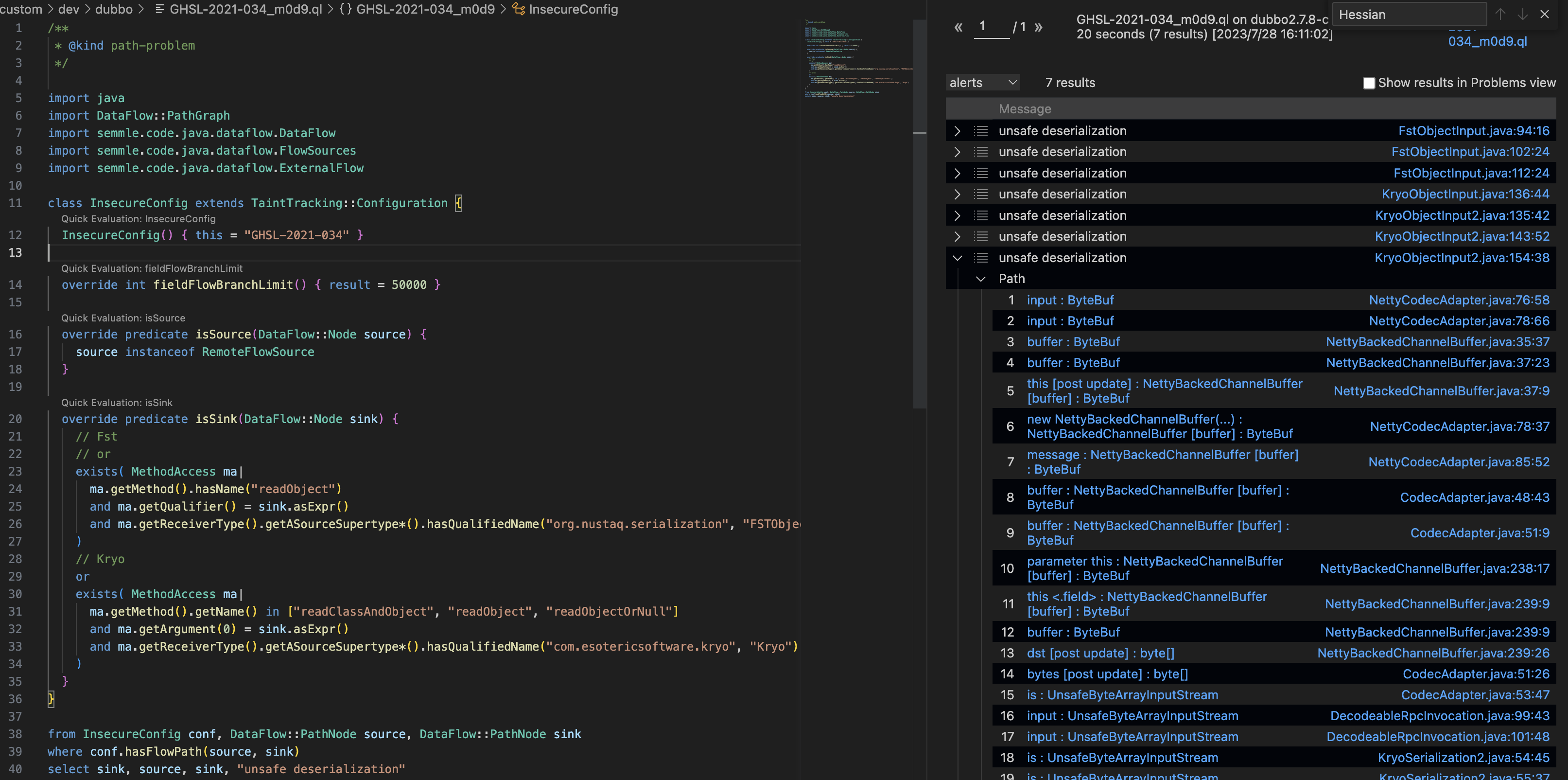

4.3 QL Result

upload successful

0x05 GHSL-2021-037/GHSL-2021-038

CVE-2021-30179

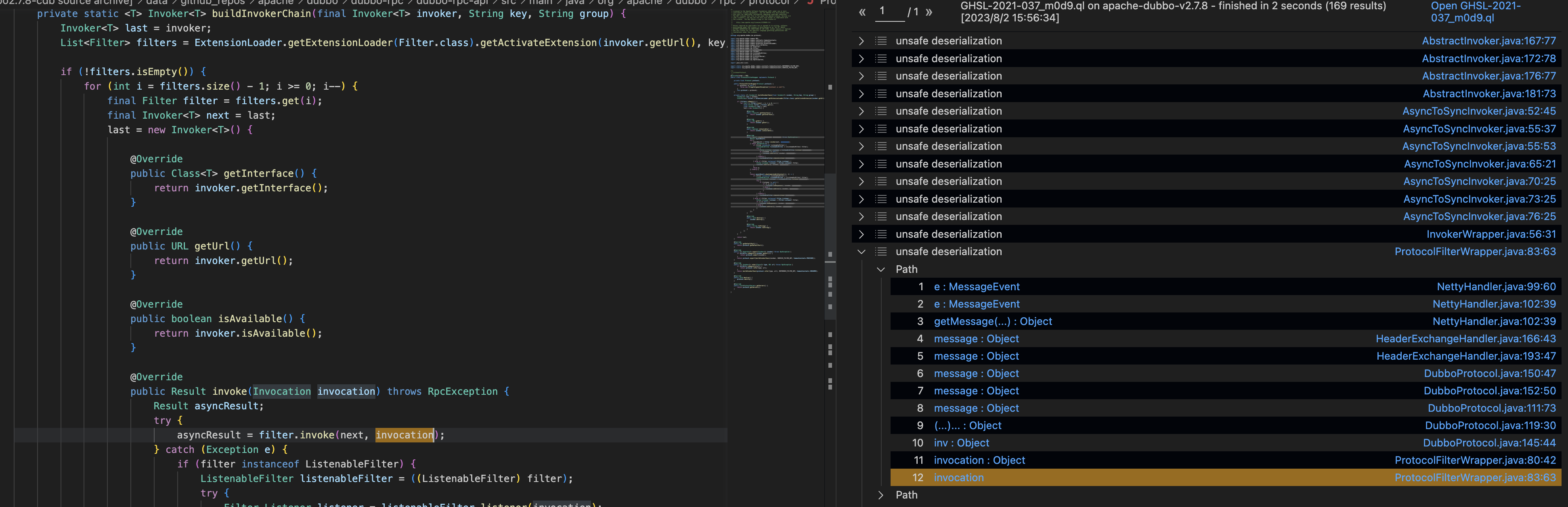

GHSL-2021-037/GHSL-2021-038 Dubbo支持动态调用，有几个特殊的函数：$invoke$invokeAsync$echo，这几个的逻辑在GenericFilter 中，这几个函数支持特定格式的参数，在还原和处理这几个函数时，支持pojo、bean、javanative等方式，会有setter/反序列化问题

调用栈

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
toObjectImpl:35, JndiConverter (org.apache.xbean.propertyeditor)
toObject:86, AbstractConverter (org.apache.xbean.propertyeditor)
setAsText:59, AbstractConverter (org.apache.xbean.propertyeditor)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:497, Method (java.lang.reflect)
realize0:469, PojoUtils (org.apache.dubbo.common.utils)
realize:209, PojoUtils (org.apache.dubbo.common.utils)
realize:97, PojoUtils (org.apache.dubbo.common.utils)
invoke:86, GenericFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:38, ClassLoaderFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
invoke:41, EchoFilter (org.apache.dubbo.rpc.filter)
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
reply:145, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:152, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)
received:177, HeaderExchangeHandler (org.apache.dubbo.remoting.exchange.support.header)
received:51, DecodeHandler (org.apache.dubbo.remoting.transport)
run:57, ChannelEventRunnable (org.apache.dubbo.remoting.transport.dispatcher)
runWorker:1142, ThreadPoolExecutor (java.util.concurrent)
run:617, ThreadPoolExecutor$Worker (java.util.concurrent)
run:745, Thread (java.lang)

5.1 Source

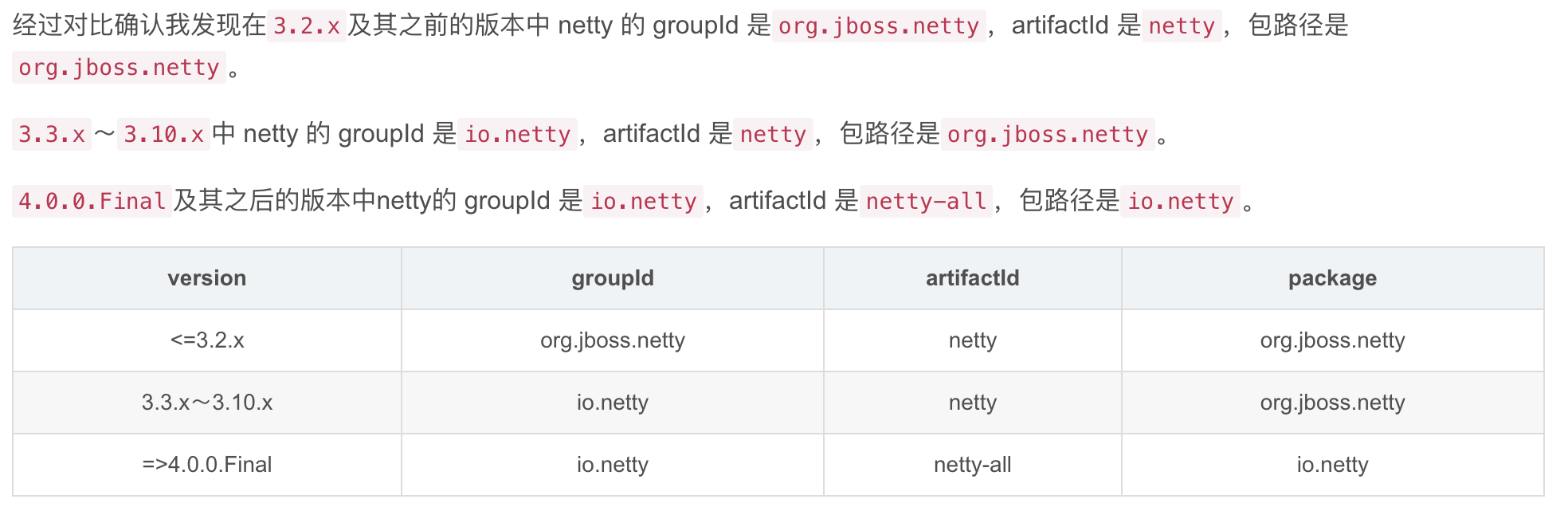

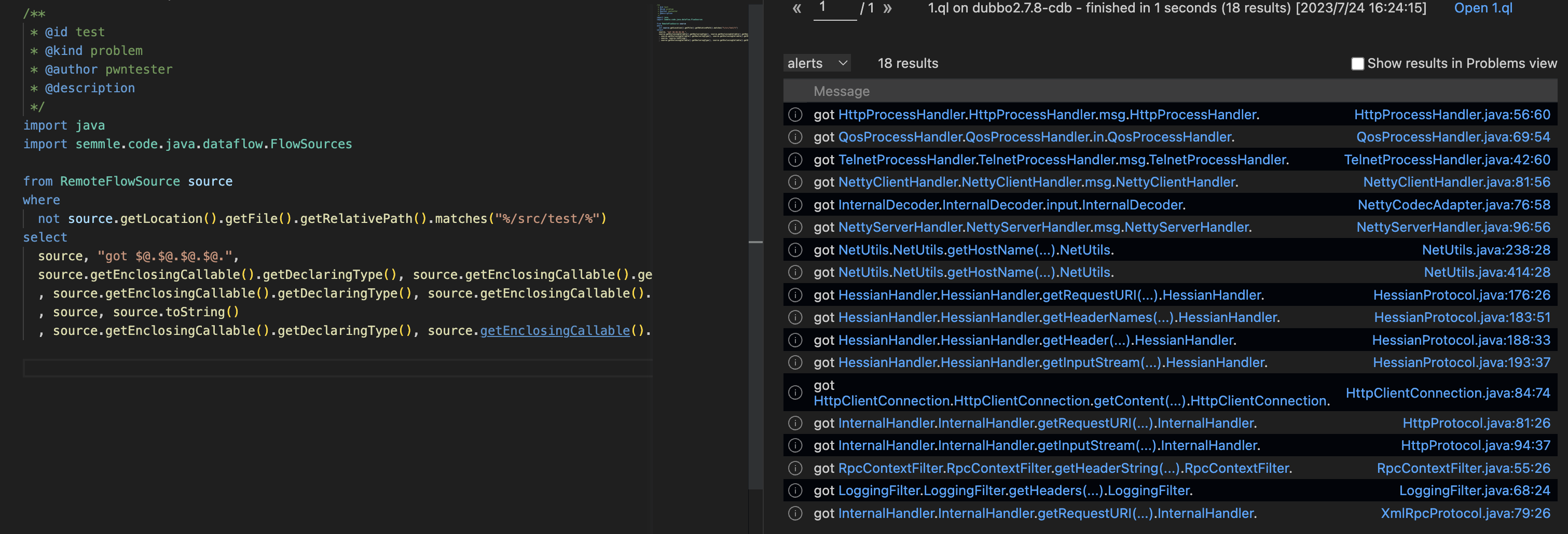

CodeQL 默认添加了io.netty相关的传播逻辑，但是Dubbo 2.7.8用的是org.jboss.netty，org.jboss.netty已经迁移到了io.netty，参考【3】
upload successful

5.1.1 jboss netty

1
2
3
4
5
6
7
8
9
10
11
12
13
extensions:
  - addsTo:
      pack: codeql/java-all
      extensible: sourceModel
    data:
      # attention: no Argument, use Parameter, just test it
      - ["org.jboss.netty.channel", "SimpleChannelHandler", True, "messageReceived", "", "", "Parameter[1]", "remote", "manual"]

  - addsTo:
      pack: codeql/java-all
      extensible: summaryModel
    data:
      - ["org.jboss.netty.channel", "MessageEvent", True, "getMessage", "", "", "Argument[this]", "ReturnValue", "taint", "manual"]

尝试之后会发现污点可以直接到中间节点DubboProtocol$1#received

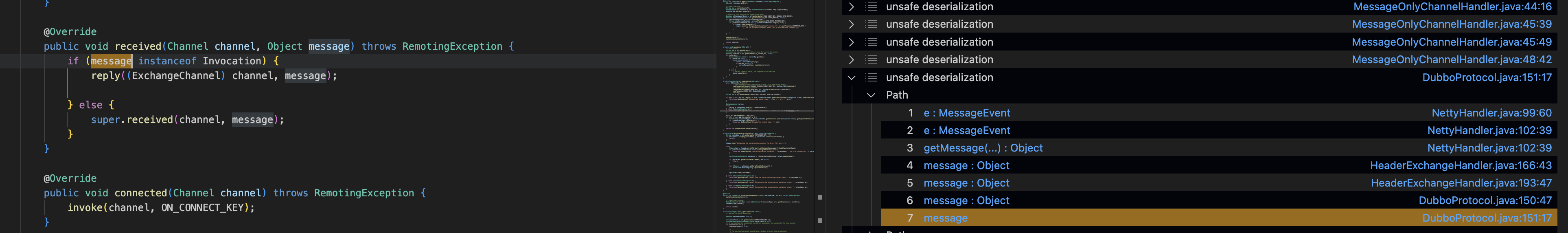

upload successful

但是这只是巧合，

5.1.2 巧合

这个case很特殊，真实的流程如下

ChannelEventRunnable.java

1
2
import java.lang.Runnable
public class ChannelEventRunnable implements Runnable {

再往上一层 AllChannelHandler.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public class AllChannelHandler extends WrappedChannelHandler {

    public AllChannelHandler(ChannelHandler handler, URL url) {
        super(handler, url);
    }

    @Override
    public void received(Channel channel, Object message) throws RemotingException {
        ExecutorService executor = getPreferredExecutorService(message);
        try {
            executor.execute(new ChannelEventRunnable(channel, handler, ChannelState.RECEIVED, message));
        } catch (Throwable t) {
        	if(message instanceof Request && t instanceof RejectedExecutionException){
                sendFeedback(channel, (Request) message, t);
                return;
        	}
            throw new ExecutionException(message, channel, getClass() + " error when process received event .", t);
        }
    }

继续往上到Netty Server服务

1
2
3
4
5
6
7
8
9
public class NettyHandler extends SimpleChannelHandler {
    public void messageReceived(ChannelHandlerContext ctx, MessageEvent e) throws Exception {
        NettyChannel channel = NettyChannel.getOrAddChannel(ctx.getChannel(), url, handler);
        try {
            handler.received(channel, e.getMessage());
        } finally {
            NettyChannel.removeChannelIfDisconnected(ctx.getChannel());
        }
    }

真实的调用栈应该如下

1
2
3
4
5
6
7
8
NettyHandler#messageReceived
	AllChannelHandler#received
    	ChannelEventRunnable#<init>
    	ChannelEventRunnable#run
        	DecodeHandler#received
            HeaderExchangeHandler#received
        	DubboProtocol$1#received
        		DubboProtocol$1#reply

5.1.3 Additional ExecutorService

CodeQL 中提供的Additional 接口是针对污点到污点的，没有增加Call流程的，该怎么处理？

TODO: 如何把implements Runnable中的<init> 和run 关联起来？

1
2
ChannelEventRunnable#<init>
ChannelEventRunnable#run

5.2 Sink

5.2.1 javanative

这个就是ObjectInputStream#readObject

1
2
3
4
5
exists( MethodAccess ma|
  ma.getMethod().hasName("readObject")
  and ma.getQualifier() = sink.asExpr()
  and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("java.io", "ObjectInputStream")
)

5.2.2 JavaBean

可以抽象出规则

  1. newInstance Object
  2. setter/getter Method
  3. call Method.invoke(Object, args)

5.2.3 Pojo

5.3 QL Result

5.3.1 匿名内部内

1
2
invoke:81, ProtocolFilterWrapper$1 (org.apache.dubbo.rpc.protocol)
reply:145, DubboProtocol$1 (org.apache.dubbo.rpc.protocol.dubbo)

DubboProtocol.java

1
2
3
4
5
6
7
8
9
10
11
12
13
private ExchangeHandler requestHandler = new ExchangeHandlerAdapter() {

    @Override
    public CompletableFuture<Object> reply(ExchangeChannel channel, Object message) throws RemotingException {

        if (!(message instanceof Invocation)) {
            throw new RemotingException(channel, "Unsupported request: "
                    + (message == null ? null : (message.getClass().getName() + ": " + message))
                    + ", channel: consumer: " + channel.getRemoteAddress() + " --> provider: " + channel.getLocalAddress());
        }

        Invocation inv = (Invocation) message;
        Invoker<?> invoker = getInvoker(channel, inv);

ProtocolFilterWrapper.java

1
2
3
4
5
6
7
8
9
10
11
private static <T> Invoker<T> buildInvokerChain(final Invoker<T> invoker, String key, String group) {
    Invoker<T> last = invoker;
    List<Filter> filters = ExtensionLoader.getExtensionLoader(Filter.class).getActivateExtension(invoker.getUrl(), key, group);

    if (!filters.isEmpty()) {
        for (int i = filters.size() - 1; i >= 0; i--) {
            final Filter filter = filters.get(i);
            final Invoker<T> next = last;
            last = new Invoker<T>() {
                @Override
                public Result invoke(Invocation invocation) throws RpcException {

结论：CodeQL 支持匿名内部内的跟踪

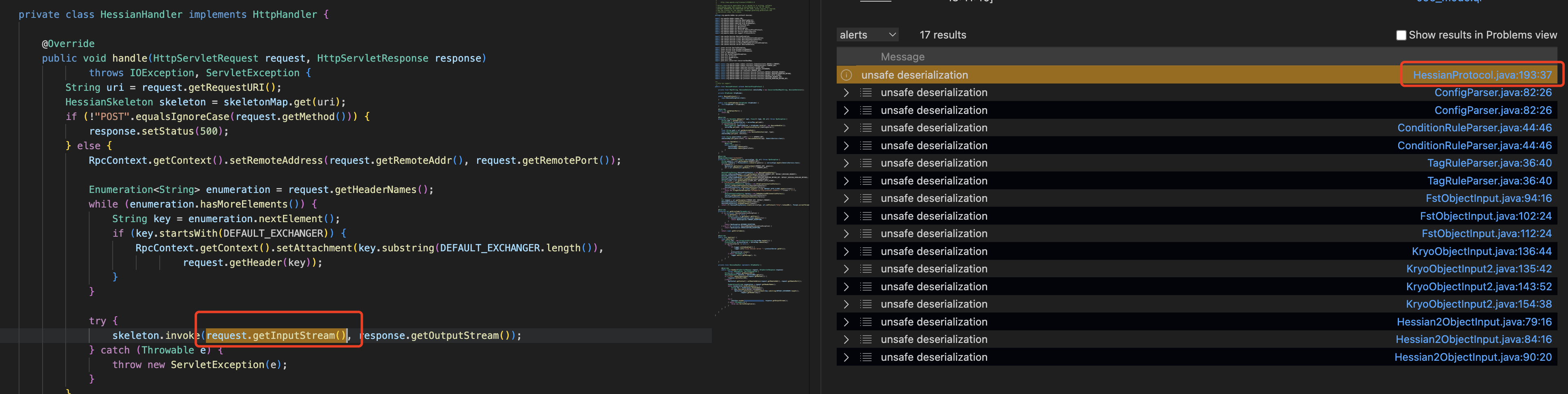

upload successful

5.3.2 强制类型转化

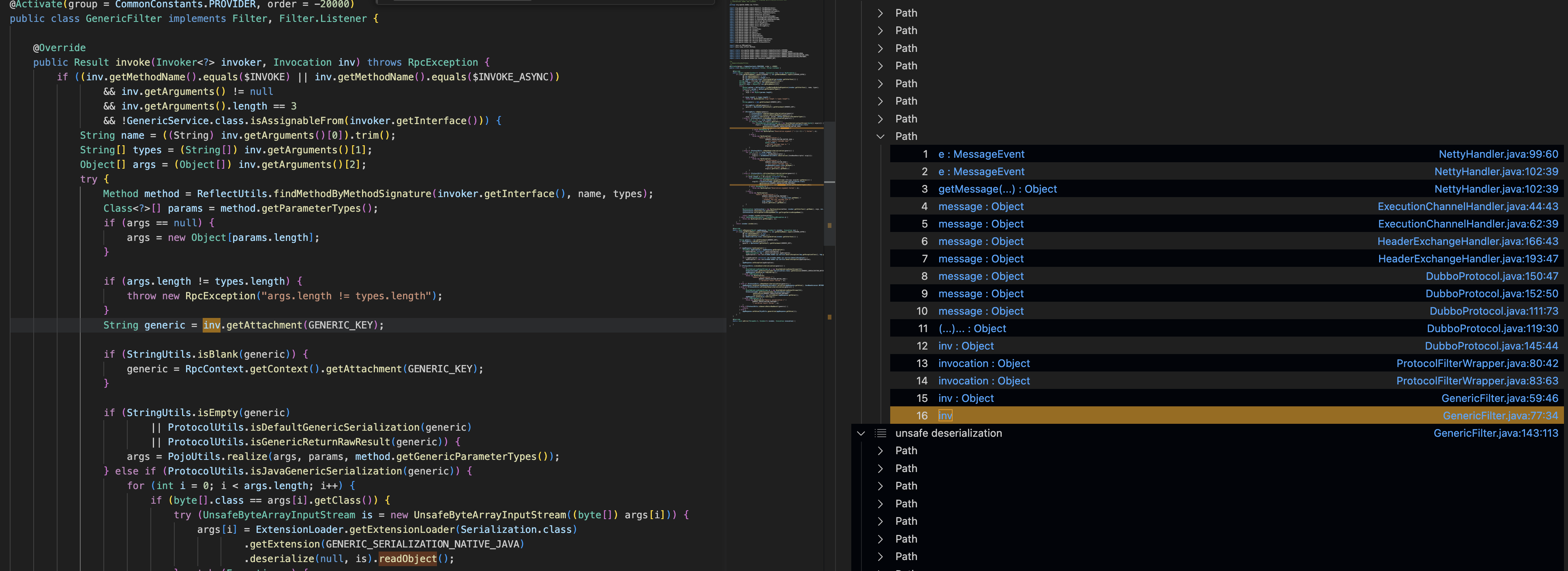

实际上污点可以传播值GenericFilter，但是到这里污点类型已经只是普通的Object，导致后续各种逻辑无法继续
upload successful

疑问，inv 有强制类型转换为Invocation，但是为何污点信息还是个Object？

TODO

0x06 GHSL-2021-039

CVE-2021-32824
GHSL-2021-039 Dubbo支持Telnet，包括invoke 调用，原理和CVE-2021-30179 PojoUtils 利用类似

6.1 Source

6.2 Sink

6.3 QL Result

0x07 GHSL-2021-040/041/043

CVE-2021-30180

  1. GHSL-2021-040/GHSL-2021-041 Dubbo的路由实现支持多种，例如Tag路由、Condition路由，它两都支持动态配置，具体实现是以yml格式写入kafka配置中，再交由consumer去解析，consumer采用的是snakeyaml，存在反序列化漏洞。
  2. GHSL-2021-043: Dubbo还支持动态配置，原理与router config类似，不过是由provider来加载，最终调用snakeyaml实现反序列化。

7.1 Source

7.1.1 zookeeper source

注意：此处Source不全，未覆盖forPath的用法，后续还有针对forPath的用法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
class CuratorSource extends RemoteFlowSource {
  CuratorSource() {
    (
      exists(MethodAccess ma |
        this.asExpr() = ma
        and ma.getMethod().hasName("getData")
        and ma.getMethod().getDeclaringType().getASourceSupertype*().hasQualifiedName("org.apache.curator.framework.recipes.cache", "TreeCacheEvent")
      )
      or
      exists(MethodAccess ma |
        this.asExpr() = ma
        and ma.getMethod().hasName("getData")
        and ma.getMethod().getDeclaringType().getASourceSupertype*().hasQualifiedName("org.apache.curator.framework.recipes.cache", "ChildData")
      )
    )
    and not this.getLocation().getFile().getRelativePath().matches("%/src/test/%")
  }
  override string getSourceType() { result = "Zookeeper Source" }
}

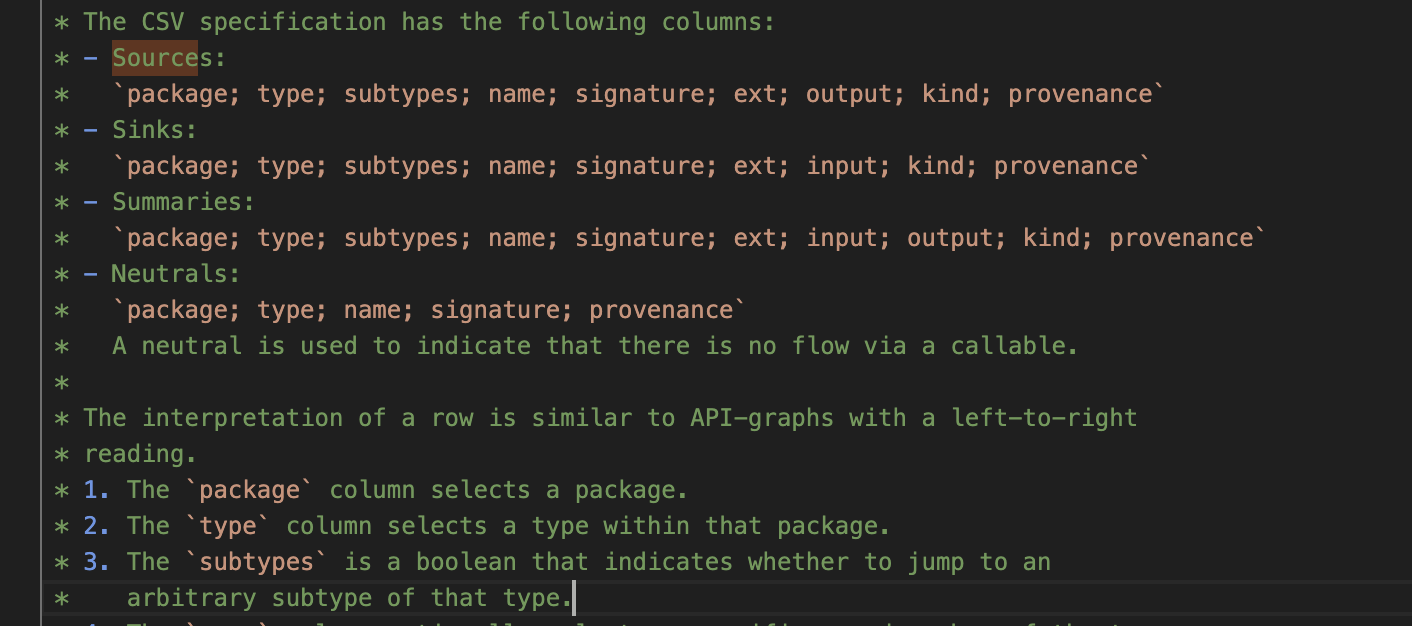

7.1.2 sourceModel != RemoteFlowSource ?

注意在yml文件中配置的sourceModel并没有自动加入RemoteFlowSource

1
2
3
4
5
private class ExternalRemoteFlowSource extends RemoteFlowSource {
  ExternalRemoteFlowSource() { sourceNode(this, "remote") }

  override string getSourceType() { result = "external" }
}

原因为kind字段必须为remote的才会自动加载为ExternalRemoteFlowSource，否则不会，其实是自己笔误，拷贝了summaryModel 的kind =’taint’，改为’remote’之后ok

7.2 Sink

7.2.1 Yaml 反序列化

1
2
3
4
5
6
7
8
override predicate isSink(DataFlow::Node sink) {
  exists( MethodAccess ma|
    ma.getMethod().hasName("load")
    and ma.getAnArgument() = sink.asExpr()
    and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("org.yaml.snakeyaml", "Yaml")
  )
  and not sink.getLocation().getFile().getRelativePath().matches("%/src/test/%")
}

7.3 QL Result

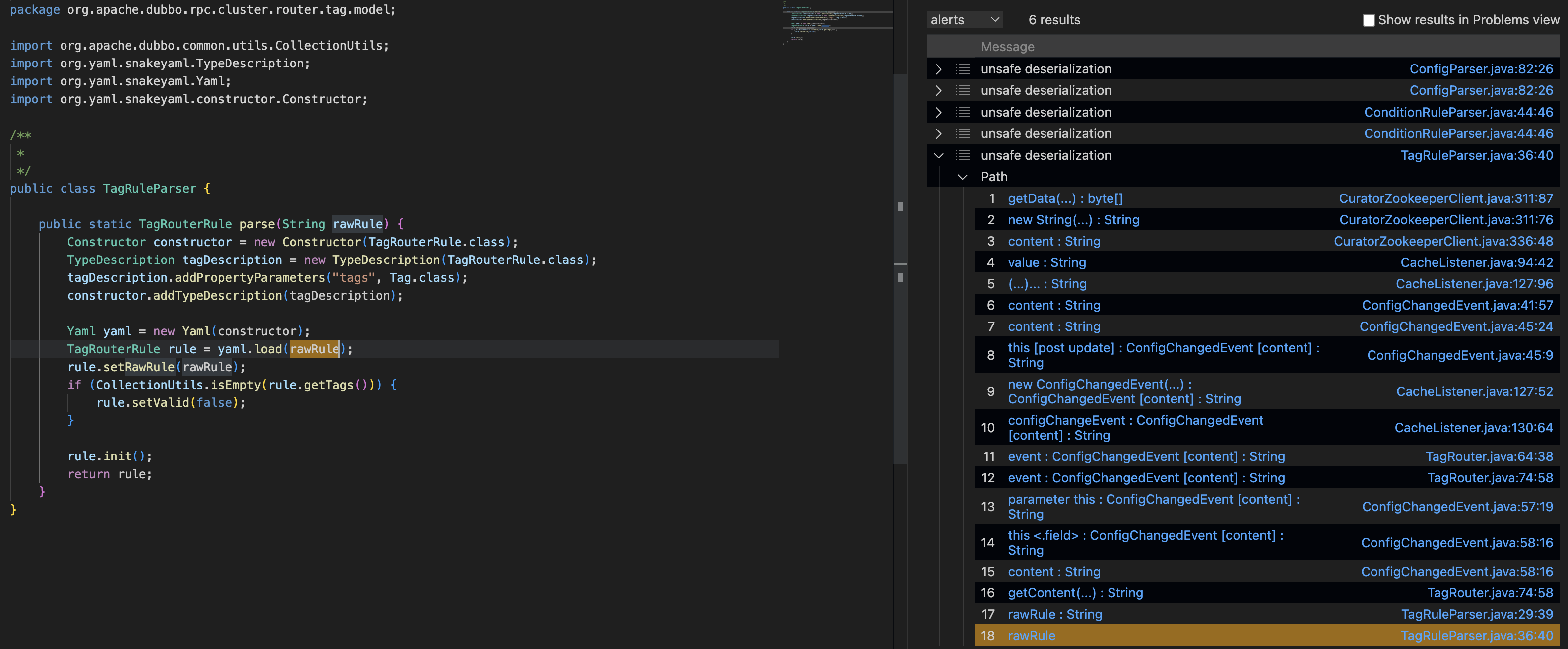

  1. TagRuleParser
    upload successful

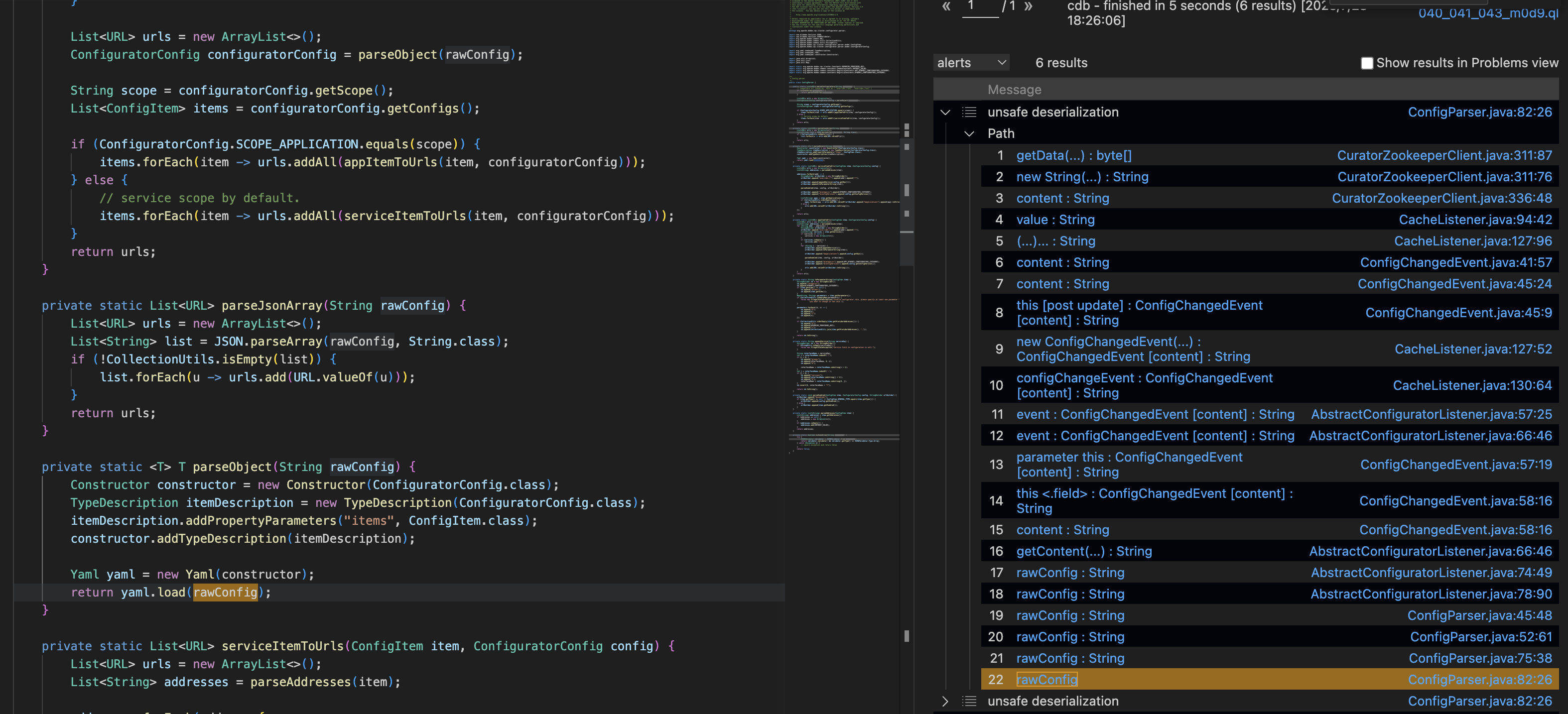

  2. ConfigParser
    upload successful

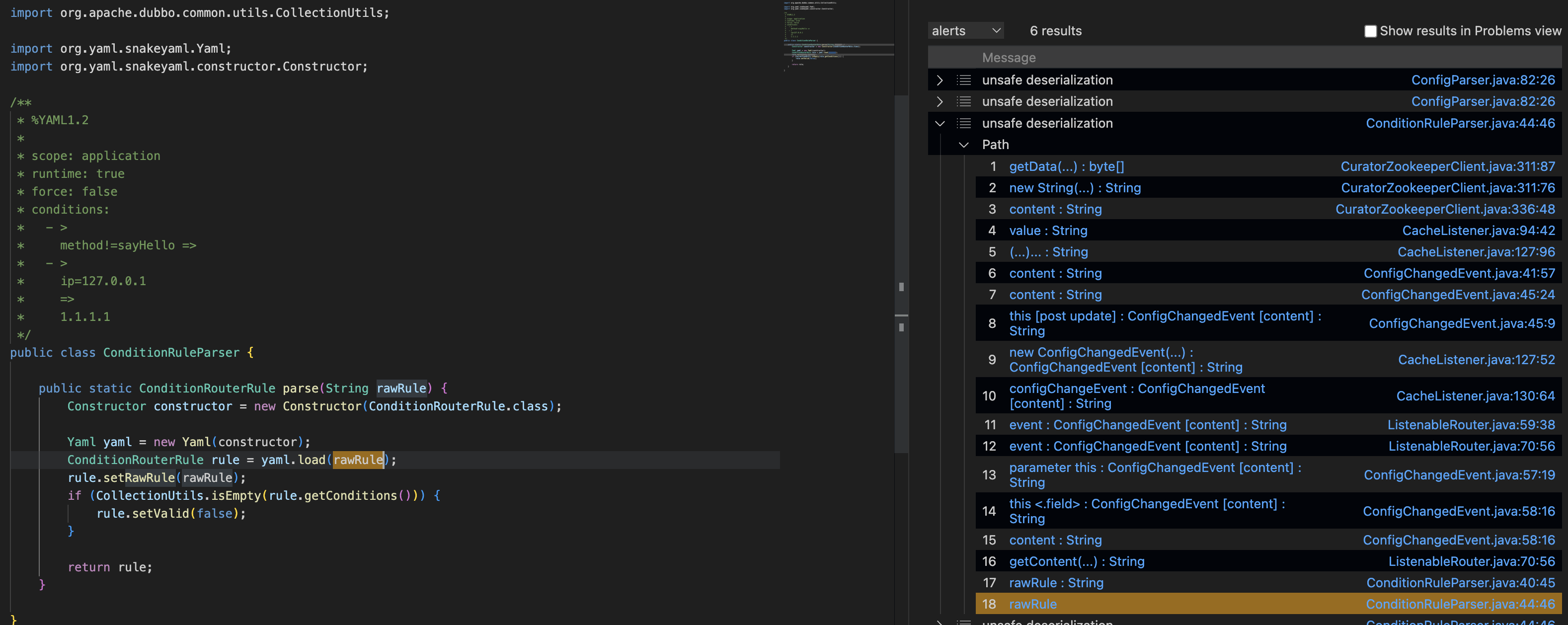

  3. ConditionRuleParser
    upload successful

0x08 GHSL-2021-042

CVE-2021-30181
GHSL-2021-042 与上一个漏洞类似，还支持Script路由，Script引擎用的Nashorn，存在命令执行

与以往的漏洞都是攻击provider 不同，这个漏洞攻击的是consumer

8.1 Sink

Sink CodeQL 点实际默认也有

8.1.1 ScriptEngine

1
2
3
4
5
6
7
extensions:
  - addsTo:
      pack: codeql/java-all
      extensible: sinkModel
    data:
      - ["javax.script", "CompiledScript", False, "eval", "", "", "Argument[this]", "mvel", "manual"]
      - ["javax.script", "ScriptEngine", True, "eval", "", "", "Argument[0]", "mvel", "manual"]

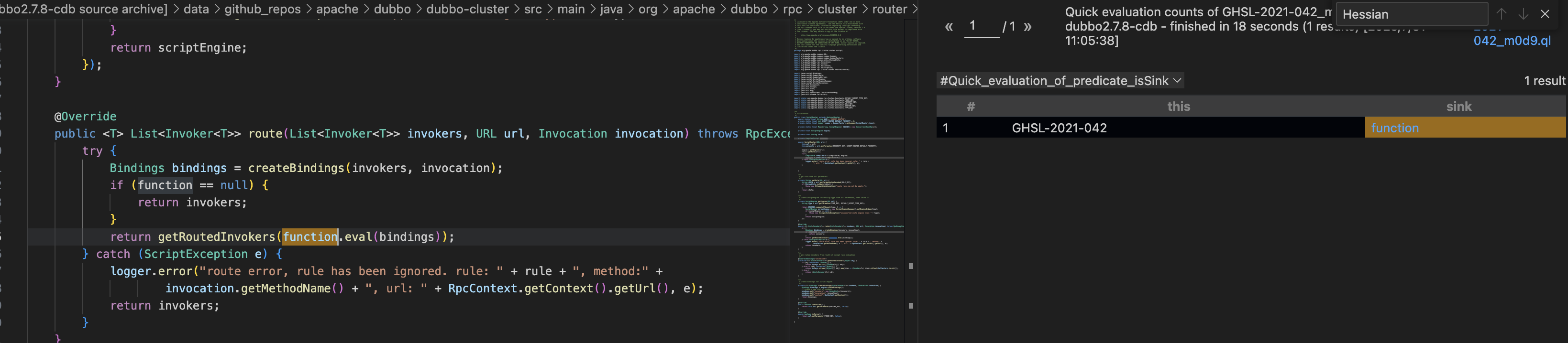

upload successful

Sink点没问题，按漏洞原理来讲Source也应该是Zookeeper，但是实际跑来，并没有结果

8.2 Source

upload successful

但是从调用栈上看不出来何时读取的zookeeper

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
eval:511, NashornScriptEngine$3 (jdk.nashorn.api.scripting)
eval:92, CompiledScript (javax.script)
route:115, ScriptRouter (org.apache.dubbo.rpc.cluster.router.script)
route:99, RouterChain (org.apache.dubbo.rpc.cluster)
doList:520, RegistryDirectory (org.apache.dubbo.registry.integration)
list:87, AbstractDirectory (org.apache.dubbo.rpc.cluster.directory)
list:297, AbstractClusterInvoker (org.apache.dubbo.rpc.cluster.support)
invoke:262, AbstractClusterInvoker (org.apache.dubbo.rpc.cluster.support)
intercept:47, ClusterInterceptor (org.apache.dubbo.rpc.cluster.interceptor)
invoke:92, AbstractCluster$InterceptorInvokerNode (org.apache.dubbo.rpc.cluster.support.wrapper)
invoke:93, MockClusterInvoker (org.apache.dubbo.rpc.cluster.support.wrapper)
invoke:132, InterfaceCompatibleRegistryProtocol$MigrationInvoker (org.apache.dubbo.registry.integration)
invoke:83, InvokerInvocationHandler (org.apache.dubbo.rpc.proxy)
sayHello:-1, proxy0 (org.apache.dubbo.common.bytecode)
main:41, BasicConsumer (org.apache.dubbo.samples.governance)

定位发现，是zookeeper forPath()

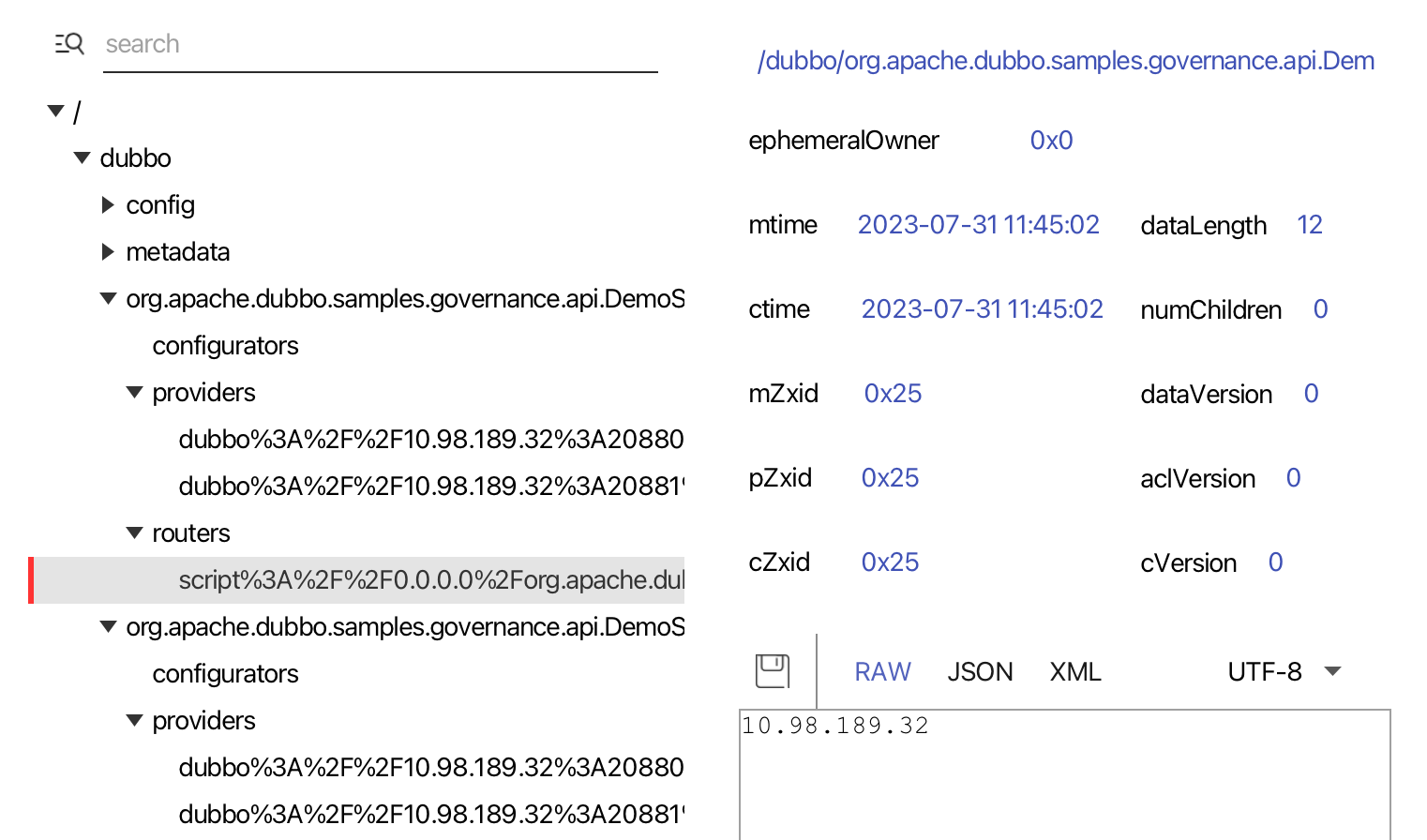

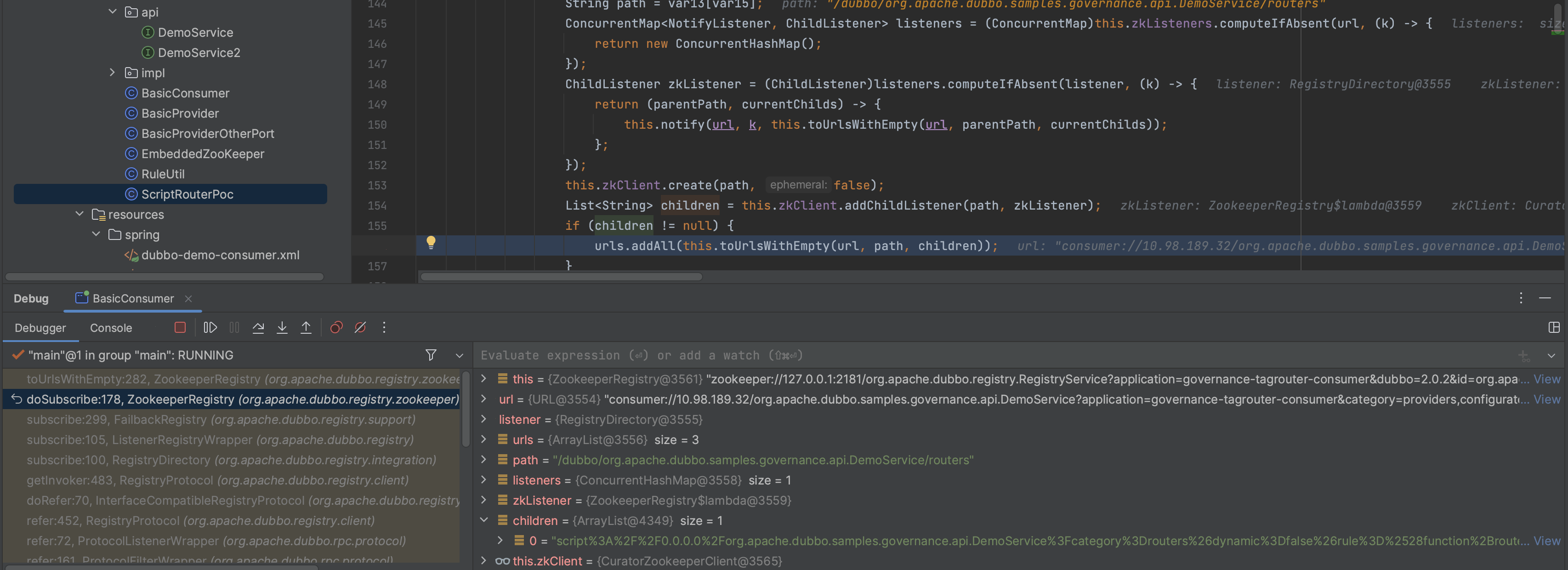

upload successful

1
2
3
4
5
6
7
8
9
public List<String> addTargetChildListener(String path, CuratorWatcherImpl listener) {
    try {
        return (List)((BackgroundPathable)this.client.getChildren().usingWatcher(listener)).forPath(path);
    } catch (KeeperException.NoNodeException var4) {
        return null;
    } catch (Exception var5) {
        throw new IllegalStateException(var5.getMessage(), var5);
    }
}

8.2.1 Kafaka forPath Source

1
2
3
4
5
6
7
8
9
(
  exists(MethodAccess ma |
    this.asExpr() = ma
    and ma.getMethod().hasName("forPath")
    and ma.getMethod().getNumberOfParameters() = 1
    and ma.getMethod().getDeclaringType().getASourceSupertype*().hasQualifiedName("org.apache.curator.framework.api", "Pathable")
    and not ma.getCallee().getReturnType().toString() in ["Stat", "Void"]
  )
)

TODO：这种整个methodAccess 作为taint的该怎么写yml SourceModule？

8.3 Addintional

8.3.1 computeIfAbsent

org.apache.dubbo.registry.support.AbstractRegistry#notify

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Iterator var5 = urls.iterator();

while(var5.hasNext()) {
    URL u = (URL)var5.next();
    if (UrlUtils.isMatch(url, u)) {
        String category = u.getParameter("category", "providers");
        List<URL> categoryList = (List)result.computeIfAbsent(category, (k) -> {
            return new ArrayList();
        });
        categoryList.add(u);
    }
}

if (result.size() != 0) {
    Map<String, List<URL>> categoryNotified = (Map)this.notified.computeIfAbsent(url, (ux) -> {
        return new ConcurrentHashMap();
    });
    Iterator var11 = result.entrySet().iterator();

    while(var11.hasNext()) {
        Map.Entry<String, List<URL>> entry = (Map.Entry)var11.next();
        String category = (String)entry.getKey();
        List<URL> categoryList = (List)entry.getValue();
        categoryNotified.put(category, categoryList);
        listener.notify(categoryList);

这里有一个computeIfAbsent 的相关逻辑

1
2
3
- ["java.util", "Map", True, "computeIfAbsent", "", "", "Argument[this].MapValue", "ReturnValue", "value", "manual"]
- ["java.util", "Map", True, "computeIfAbsent", "", "", "Argument[1].ReturnValue", "Argument[this].MapValue", "value", "manual"]
- ["java.util", "Map", True, "computeIfAbsent", "", "", "Argument[1].ReturnValue", "ReturnValue", "value", "manual"]

但是显然不能够将result value和u 污点关联起来，因为categoryList类似于引用调用，污点传播在后，可以传播到categoryList.add(u); 这里的u，这应该是CodeQL的通用问题。

引用类型的无解

8.4 QL Result

目前认为无解
TODO，computeIfAbsent这种写法还挺多，暂时考虑手动串起来

0x09 GHSL-2021-094

CVE-2021-36162
GHSL-2021-094 Dubbo在2.7.10中修复了snakeYaml的反序列化问题，但是3.0新Router机制Mesh中依然存在snakeYaml反序列化

9.1 Source

1
2
3
4
5
6
Yaml yaml = new Yaml();
Yaml yaml2 = new Yaml();
Iterable<Object> objectIterable = yaml.loadAll(configInfo);
for (Object result : objectIterable) {

    Map resultMap = (Map) result;

用的还不是Yaml#load 接口，而是Yaml#loadAll

1
2
3
4
5
6
7
8
override predicate isSink(DataFlow::Node sink) {
  exists( MethodAccess ma|
    ma.getMethod().getName() in ["load", "loadAll"]
    and ma.getAnArgument() = sink.asExpr()
    and ma.getReceiverType().getASourceSupertype*().hasQualifiedName("org.yaml.snakeyaml", "Yaml")
  )
  and not sink.getLocation().getFile().getRelativePath().matches("%/src/test/%")
}

9.2 QL Result

但是细看调用栈，会发现经过了notify#AbstractRegistry，和GHSL-2021-042一样，暂时无解

TODO：手动临时串起来

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
next:547, Yaml$1 (org.yaml.snakeyaml)
receiveConfigInfo:62, MeshAppRuleListener (org.apache.dubbo.rpc.cluster.router.mesh.route)
subscribeAppRule:53, MeshRuleManager (org.apache.dubbo.rpc.cluster.router.mesh.route)
notify:43, MeshRuleAddressListenerInterceptor (org.apache.dubbo.rpc.cluster.router.mesh.route)
notify:145, RegistryDirectory (org.apache.dubbo.registry.integration)
notify:433, AbstractRegistry (org.apache.dubbo.registry.support)
doNotify:371, FailbackRegistry (org.apache.dubbo.registry.support)
notify:363, FailbackRegistry (org.apache.dubbo.registry.support)
doSubscribe:180, ZookeeperRegistry (org.apache.dubbo.registry.zookeeper)
subscribe:298, FailbackRegistry (org.apache.dubbo.registry.support)
subscribe:106, ListenerRegistryWrapper (org.apache.dubbo.registry)
subscribe:107, RegistryDirectory (org.apache.dubbo.registry.integration)
doCreateInvoker:514, RegistryProtocol (org.apache.dubbo.registry.integration)
getInvoker:58, InterfaceCompatibleRegistryProtocol (org.apache.dubbo.registry.integration)
refreshInterfaceInvoker:448, MigrationInvoker (org.apache.dubbo.registry.client.migration)
migrateToApplicationFirstInvoker:239, MigrationInvoker (org.apache.dubbo.registry.client.migration)
refreshInvoker:73, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
doMigrate:57, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
onRefer:208, MigrationRuleListener (org.apache.dubbo.registry.client.migration)
interceptInvoker:485, RegistryProtocol (org.apache.dubbo.registry.integration)

0x10 GHSL-2021-095

CVE-2021-36163
GHSL-2021-095 Dubbo还支持Hessian协议（并不是指反序列化），基于http，在HessianSkeleton 的处理中会对POST 的内容进行反序列化

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
lookup:417, InitialContext (javax.naming)
doInContext:155, JndiTemplate$1 (org.springframework.jndi)
execute:87, JndiTemplate (org.springframework.jndi)
lookup:152, JndiTemplate (org.springframework.jndi)
lookup:179, JndiTemplate (org.springframework.jndi)
lookup:95, JndiLocatorSupport (org.springframework.jndi)
doGetSingleton:218, SimpleJndiBeanFactory (org.springframework.jndi.support)
getBean:112, SimpleJndiBeanFactory (org.springframework.jndi.support)
getAdvice:109, AbstractBeanFactoryPointcutAdvisor (org.springframework.aop.support)
equals:74, AbstractPointcutAdvisor (org.springframework.aop.support)
putVal:634, HashMap (java.util)
put:611, HashMap (java.util)
readMap:114, MapDeserializer (com.caucho.hessian.io)
readMap:522, SerializerFactory (com.caucho.hessian.io)
readObject:2079, Hessian2Input (com.caucho.hessian.io)
readLengthList:599, BasicDeserializer (com.caucho.hessian.io)
readObject:1746, Hessian2Input (com.caucho.hessian.io)
invoke:300, HessianSkeleton (com.caucho.hessian.server)
invoke:202, HessianSkeleton (com.caucho.hessian.server)
invoke:143, HessianSkeleton (com.caucho.hessian.server)
handle:193, HessianProtocol$HessianHandler (org.apache.dubbo.rpc.protocol.hessian)
service:61, DispatcherServlet (org.apache.dubbo.remoting.http.servlet)
service:790, HttpServlet (javax.servlet.http)
handle:865, ServletHolder (org.eclipse.jetty.servlet)

10.1 Source

调用栈可以看出是Serverlet Source

1
2
3
4
5
6
7
8
9
10
11
12
13
import javax.servlet.http.HttpServlet;
public class DispatcherServlet extends HttpServlet {

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        HttpHandler handler = HANDLERS.get(request.getLocalPort());
        if (handler == null) {// service not found.
            response.sendError(HttpServletResponse.SC_NOT_FOUND, "Service not found.");
        } else {
            handler.handle(request, response);
        }
    }
1
2
3
override predicate isSource(DataFlow::Node source) {
    source instanceof RemoteFlowSource
}

upload successful

10.1.1 Where is Source Module HttpServletRequest#getInputStream Defined？

为什么在FlowSources.qll 中没有extends RemoteFlowSource的相关Servlet，为何以上的ql能直接定位到

1
2
3
4
5
private class ExternalRemoteFlowSource extends RemoteFlowSource {
  ExternalRemoteFlowSource() { sourceNode(this, "remote") }

  override string getSourceType() { result = "external" }
}

在java/ql/lib/ext/javax.servlet.model.yml 中

1
- ["javax.servlet", "ServletRequest", False, "getInputStream", "()", "", "ReturnValue", "remote", "manual"]

疑问：注意这里subteyps=Flase，为什么HttpServletRequest 也能够适用呢

upload successful

在java/ql/lib/ext/javax.servlet.http.model.yml 中，并无HttpServletRequest#getInputStream 的记录

具体是在哪里添加的getInputStream 这个Source点呢？

注释掉javax.servlet.model.yml 中的ServletRequest getInputStream一行，发现RemoteFlowSource的确结果中没有了

subteyps

查看HttpServletRequest发现并未重写getInputStream，因此subteyps实际还用的是ServletRequest getInputStream，注意这点：subyptes=False并不是表示”子类不适用这条规则”

引用师傅的结论：
subtypes:布尔类型,可以取值为true或false. 当为true时, 会寻找子类重写的类型成员name(使用
overridesOrInstantiates 谓词得到). 否则寻找当前类类型成员name

师傅看的真仔细。

ExternalFlow.qll

1
2
3
4
5
6
exists(Member m |
  (
    result = m
    or
    subtypes = true and result.(SrcMethod).overridesOrInstantiates+(m)
  )

疑问：result = m，CodelQL 父类的member也是子类的Member吗

1
2
3
4
from Member m
where m.getFile().toString() = "HttpServletRequest"
select m
    , m.getFile()

并没有getInputStream

结论：不是

注意此处的and or 逻辑，与传统的语言顺序执行不同，这里的实际逻辑如下：
result = m
or (subtypes = true and result.(SrcMethod).overridesOrInstantiates+(m))

Member.qll

1
2
3
4
5
predicate overridesOrInstantiates(Method m) {
  this.overrides(m)
  or
  this.getSourceDeclaration() = m and this != m
}

overridesOrInstantiates的逻辑为重写或者实现

个人理解subtypes的逻辑是针对Method member的：

  1. 如果为false
    • 那么只对当前method member有效
  2. 如果为true
    • 当前method member
    • 所有重写/实现了该method的method

疑问：HttpServletRequest extends ServletRequest，其本身也是个interface，为什么也有？

想想trap 的生成逻辑，JavaCompiler Visitor，在编译的时候，HttpServletRequest#getInputStream()，HttpServletRequest并没有getInputStream，实际上是父类的getInputStream，因此即使subtypes=false，如果没有重写method，那么子类调用该method，还是可以认为该规则生效。

  • 子类subclass 重写/实现了method，针对subclass#method的MethodCallExpr，subtypes=True 时该条规则才会命中
  • 子类subclass 没有重写/实现method，一直生效，和subtypes无关

10.2 Sink

Sink点不是普通的Hessian2反序列化Hessian2Input#readObject, 而是HessianSkeleton#invoke

1
- ["com.caucho.hessian.server", "HessianSkeleton", False, "invoke", "(InputStream,OutputStream)", "", "Argument[0]", "deserilization", "manual"]

注意：(InputStream,OutputStream) 中间无空格

10.3 QL Result

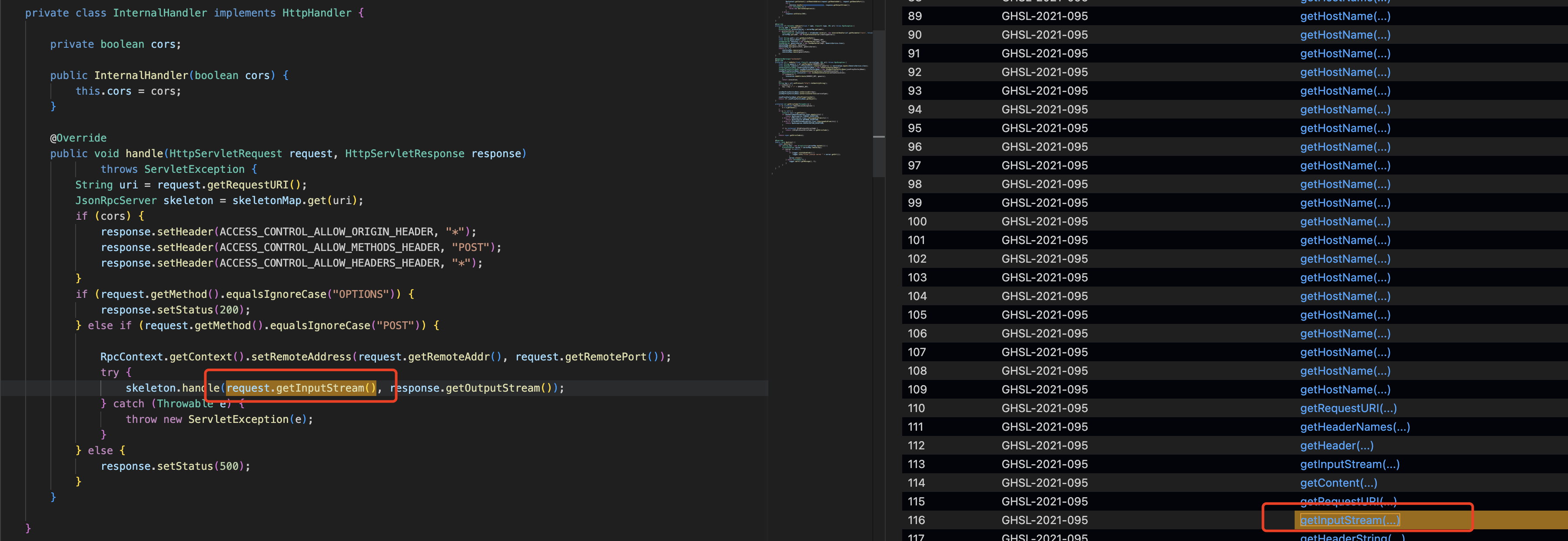

upload successful

0x11 GHSL-2021-096

GHSL-2021-096
GHSL-2021-096 Dubbo还支持rmi协议，Dobbo的Provider类似RMI的Register和Provider，可以用Client攻击Register和Provider的方式进行攻击

11.1 Sink

逻辑在org.apache.dubbo.rpc.protocol.rmi.RmiProtocol 内，用的org.springframework.remoting.rmi.RmiServiceExporter 实现RMI Register

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
import org.springframework.remoting.rmi.RmiServiceExporter;
public class RmiProtocol extends AbstractProxyProtocol {
    private <T> RmiServiceExporter createExporter(T impl, Class<?> type, URL url, boolean isGeneric) {
        final RmiServiceExporter rmiServiceExporter = new RmiServiceExporter();
        rmiServiceExporter.setRegistryPort(url.getPort());
        if (isGeneric) {
            rmiServiceExporter.setServiceName(url.getPath() + "/" + GENERIC_KEY);
        } else {
            rmiServiceExporter.setServiceName(url.getPath());
        }
        rmiServiceExporter.setServiceInterface(type);
        rmiServiceExporter.setService(impl);
        try {
            rmiServiceExporter.afterPropertiesSet();
        } catch (RemoteException e) {
            throw new RpcException(e.getMessage(), e);
        }
        return rmiServiceExporter;

这种无法写污点分析，没有污点源，只要启动了rmi server就有问题

从main 到 RmiServiceExporter getEnclosingCallable ?是不是可以为污点分析

11.2 QL Result

11.2.1 DataFlow::Node Tip

注: DataFlow::Node 可能指的是最小节点或者深度为1的节点，比如最下层的MethodAccess，如果嵌套则不包含上层

1
2
3
4
5
6
override predicate isSink(DataFlow::Node sink) {
    exists( MethodAccess ma|
        ma = sink.asExpr()
        and sink.asExpr().getFile().getRelativePath().matches("%RmiProtocol.java")
    )
}

例如以上的ql 命中不了setRegistryPort

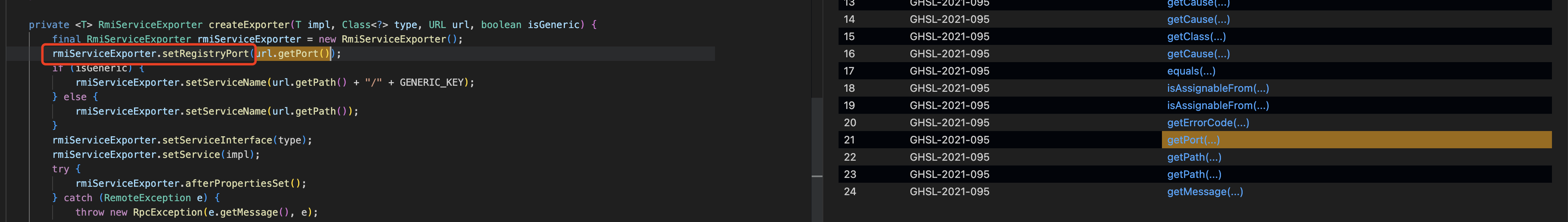

upload successful

1
2
3
  override predicate isSink(DataFlow::Node sink) {
sink.asExpr().getFile().getRelativePath().matches("%RmiProtocol.java")
  }

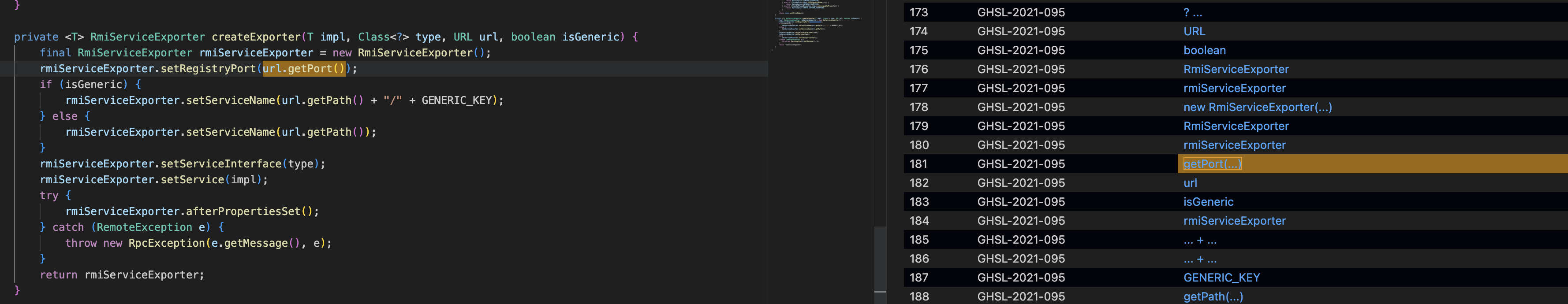

upload successful

11.2.2 Final QL

1
2
3
4
5
6
7
8
9
10
11
override predicate isSink(DataFlow::Node sink) {
    exists( MethodAccess ma| ma.getAChildExpr() = sink.asExpr() or ma = sink.asExpr() |
        ma.getMethod().getDeclaringType().hasQualifiedName("org.springframework.remoting.rmi", "RmiServiceExporter")
        and ma.getMethod().hasName("setRegistryPort")
    )
    or
    exists( MethodAccess ma| ma.getAChildExpr() = sink.asExpr() or ma = sink.asExpr() |
      ma.getMethod().getDeclaringType().hasQualifiedName("java.rmi.registry", "LocateRegistry")
      and ma.getMethod().hasName("createRegistry")
    )
}

0x12 GHSL-2021-096

CVE-2021-37579
GHSL-2021-097 CodecSupport#checkSerialization bypass，该安全策略用于判断dubbo数据包指定的序列化方式是否是provider配置的配置，当version不存在时，会绕过检测漏洞

个人认为CodeQL不适合做bypass工作，暂时忽略

0x13 CVE-2021-43297

hessian-lite 作为dubbo内置的hessian版本，在处理异常的时候，会通过”+”进行字符串拼接，导致其中obj的toString 隐式调用，形成反序列化(也可以认为是CVE-2021-30179的补充)

部分重点的调用链

1
2
3
readString:1853, Hessian2Input (com.alibaba.com.caucho.hessian.io)
readUTF:79, Hessian2ObjectInput (com.alibaba.dubbo.common.serialize.hessian2)
decode:97, DecodeableRpcInvocation (com.alibaba.dubbo.rpc.protocol.dubbo)

其实在GHSL-2021-096中就有这条链

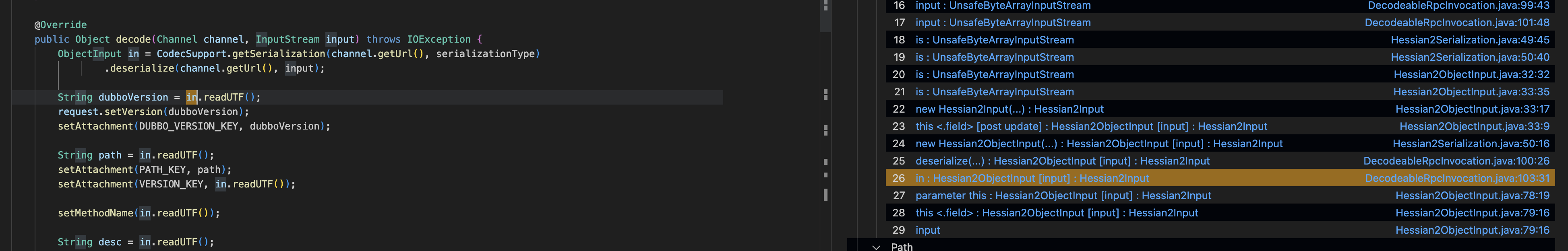

upload successful

0x14 CVE-2023-23638

CVE-2021-30179的绕过，可以利用setter设置全局静态配置变量，绕过安全规则

个人认为CodeQL不适合做bypass工作，暂时忽略

0x15 小结

遗留问题：

  1. 5.1.3 GHSL-2021-037/GHSL-2021-038一节中，如何把implements Runnable中的<init> 和run 关联起来？
  2. 5.3.2 中，即使存在强制类型，污点仍然为Object
  3. zookeeper source forPath怎么转换成yml sourceModule？
  4. computeIfAbsent 这种引用传播，污点如何串起来
  5. netInstance & setter/getter ql实现

0x16 参考

tag:

    缺失模块。
    1、请确保node版本大于6.2
    2、在博客根目录（注意不是yilia根目录）执行以下命令：
    npm i hexo-generator-json-content --save

    3、在根目录_config.yml里添加配置：

      jsonContent:
    meta: false
    pages: false
    posts:
      title: true
      date: true
      path: true
      text: false
      raw: false
      content: false
      slug: false
      updated: false
      comments: false
      link: false
      permalink: false
      excerpt: false
      categories: false
      tags: true
